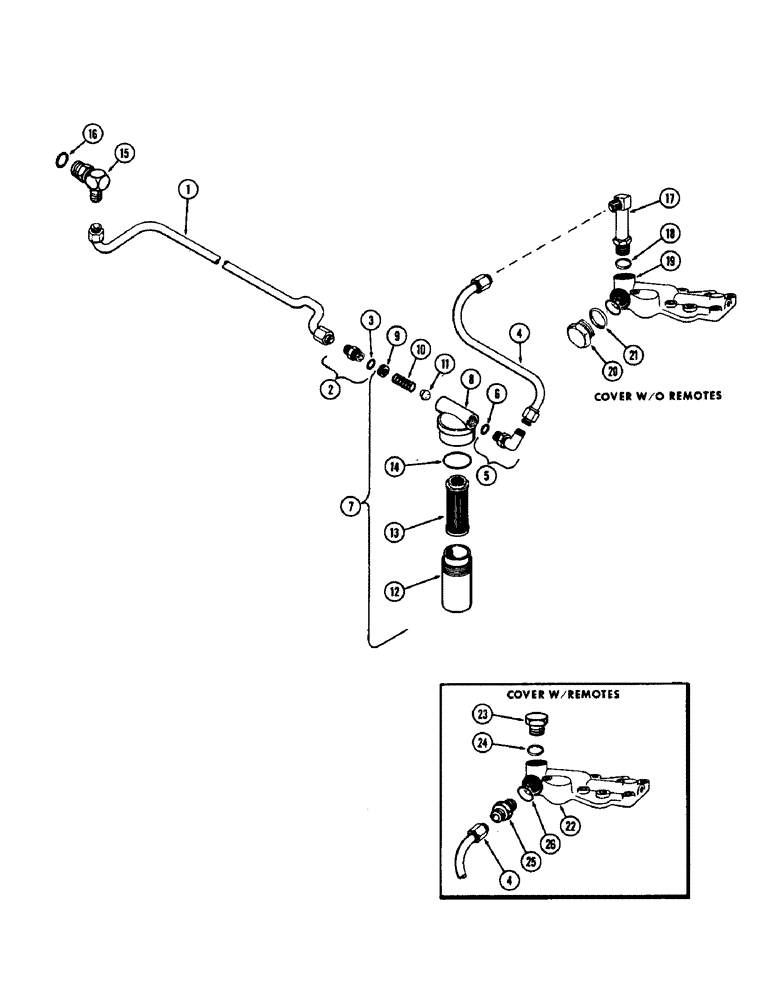

Запчасти Case 480CK (132) - HI-PRESSURE FILTER ATTACHMENT

A36968

FILTER ATTACHMENT - hyd. oil, hi-pressure (Machy.), Includes: Ref. 1 - 14

1шт.

1

A36967

TUBE ASSY. - control valve to filter

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSY. - straight, 5/8" tube x 7/8" thd., Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 3/4 x 15/16 x 3/32"

1шт.

4

A36965

TUBE

ASSY. - filter to hyd. valve

1шт.

5

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSY. - 90 degrees adj. x 5/8" tube x 7/8" thd., Incl. Ref. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 3/4 x 15/16 x 3/32"

1шт.

7

A36963

FILTER ASSY. - hyd. oil, Includes: Ref. 8 - 14

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - oil filter upper

1шт.

9

A40670

SCREW - adj., relief valve

1шт.

10

A40672

SPRING - relief valve

1шт.

11

A40671

VALVE - relief, valve

1шт.

12

NSS

NOT SOLD SEPARAT

TUBE - filter element

1шт.

13

A40663

ELEMENT KIT - filter, Includes: Ref. 14

1шт.

14

A40665

O-RING,-227, 90 Duro, 2.109" ID x .139" Thk

"O" RING - tube to housing

1шт.

15

A37067

ELBOW ASSY. - pressure tube to valve, Includes: Ref. 16

1шт.

16

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING - 1-3/64 x 1-9/32 x 1/8"

1шт.

17

D23143

FITTING

ELBOW ASSY. - pressure tube (w/o remote hyd.), Includes: Ref. 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 3/4 x 15/16 x 3/32"

1шт.

19

A35425

COVER ASSY

COVER -, Serial Range: adapter-valve

1шт.

20

86512512

PLUG,7/8" - 14 ORB

- Port cover, Incl. Ref. 21 Hex Hd, 7/8"-14 ORB

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 3/4 x 15/16 x 3/32"

1шт.

22

A35425

COVER ASSY

COVER -, Serial Range: adapter-valve

1шт.

23

86512512

PLUG,7/8" - 14 ORB

- Port cover, Incl. Ref. 24 Hex Hd, 7/8"-14 ORB

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 3/4 x 15/16 x 3/32"

1шт.

25

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSY. - press. tube (w/remote hyd.), Includes: Ref. 26

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 3/4 x 15/32 x 3/32"

1шт.
