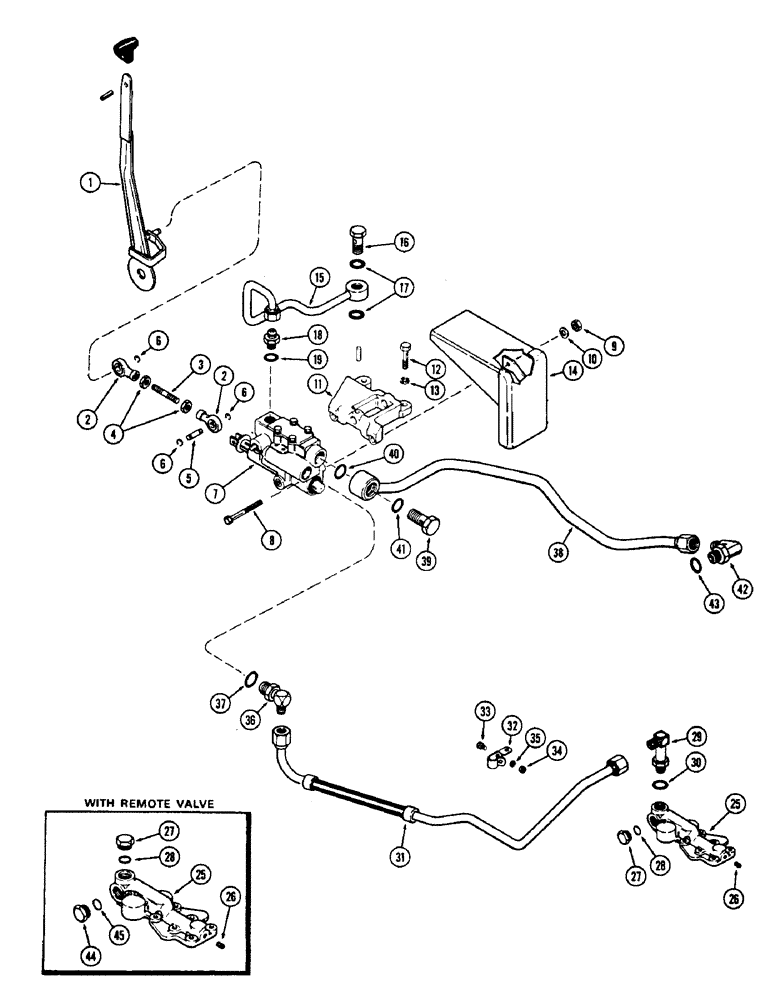

Запчасти Case 480CK (130) - VALVE AND CONTROLS, DRAFT-O-MATIC

1

NSS

NOT SOLD SEPARAT

LEVER ASSY. - draft control (See figure 129A)

1шт.

2

A35134

BEARING

EYE - adjusting, lever to valve rod

2шт.

3

A35135

ROD

- hand, Serial Range: lever-valve

1шт.

4

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16" N.F.

2шт.

5

A35137

PIN

- eye to valve spool

1шт.

6

A27810

CIRCLIP,#X31, .243" Dia, E-Type

RING - retaining, , adjusting eye #X31, .243" Dia, E-Type

3шт.

7

A35685

VALVE

ASSY. - control (Repairs figure 134)

1шт.

8

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- hex. hd., 5/16" x 3-1/4" N.C.

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

- 5/16" hex., N.C.

2шт.

10

92-5

LOCK WASHER,5/16"

2шт.

11

A35478

BRACKET

- valve mounting

1шт.

12

113-236

X

BOLT - hex. hd., 3/8 x 2" N.C. (Grade 8)

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

A36515

GUARD

SHIELD ASSY. - control valve

1шт.

15

A35507

TUBE ASSY. - valve to rockshaft housing

1шт.

16

A35146

SCREW,5/8" - 11 x 1 9/16"

-, Serial Range: tube-housing

1шт.

17

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - tube to housing (11/16 x 7/8 x 3/32")

2шт.

18

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - 1/2" tube x 3/4" -16, Incl. Ref 19

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING (21/32 x 13/16 x 3/32")

1шт.

25

A35425

COVER ASSY

COVER - adapter of valve, lines

1шт.

26

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, 3/8" hex. socket hd., adapter cover & lines

1шт.

27

86512512

PLUG,7/8" - 14 ORB

- Cover port, Adapter lines, Incl. Ref. 28 Hex Hd, 7/8"-14 ORB

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - cover plug (3/4 x 15/16 x 3/32"), adapter lines

1шт.

29

D23143

FITTING

ELBOW ASSY. - pressure tube (w/out remotes), adapter cover & lines, Includes: Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING (3/4 x 15/16 x 3/32"), adapter cover & lines

1шт.

31

A35489

TUBE ASSY - pressure (See page 132), adapter cover & lines

1шт.

32

A35506

CLAMP - press. tube to torque tube, adapter cover & lines

1шт.

33

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Adapter cover & lines Hex, 1/4"-28 x 1/2", G5, Full Thd

1шт.

34

25-114

NUT,1/4"-28, G5

- hex. 1/4" N.F., adapter cover & lines

1шт.

35

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Adapter cover & lines 1/4"

1шт.

36

A37067

ELBOW ASSY. - pressure tube to valve, adapter cover & lines, Includes: Ref. 37

1шт.

37

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING (1-3/64 x 1-9/32 x 1/8"), adapter cover & lines

1шт.

38

A35490

TUBE

ASSY. - return, adapter cover & lines

1шт.

39

A35553

SCREW

- return tube to valve, adapter cover & lines

1шт.

40

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING - inner, return tube (1-1/4 x 1-1/2 x 1/8"), adapter cover & lines

1шт.

41

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - outer, return tube (1-1/16 x 1-5/16 x 1/8"), adapter cover & lines

1шт.

42

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, return tube, adapter cover & lines, Incl. Ref. 43 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

43

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING (3/4 x 15/16 x 3/32"), adapter cover & lines

1шт.

44

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSY. - pressure tube (With remotes), adapter cover & lines, Includes: Ref. 45

1шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 15/16 x 3/32"), adapter cover & lines

1шт.
