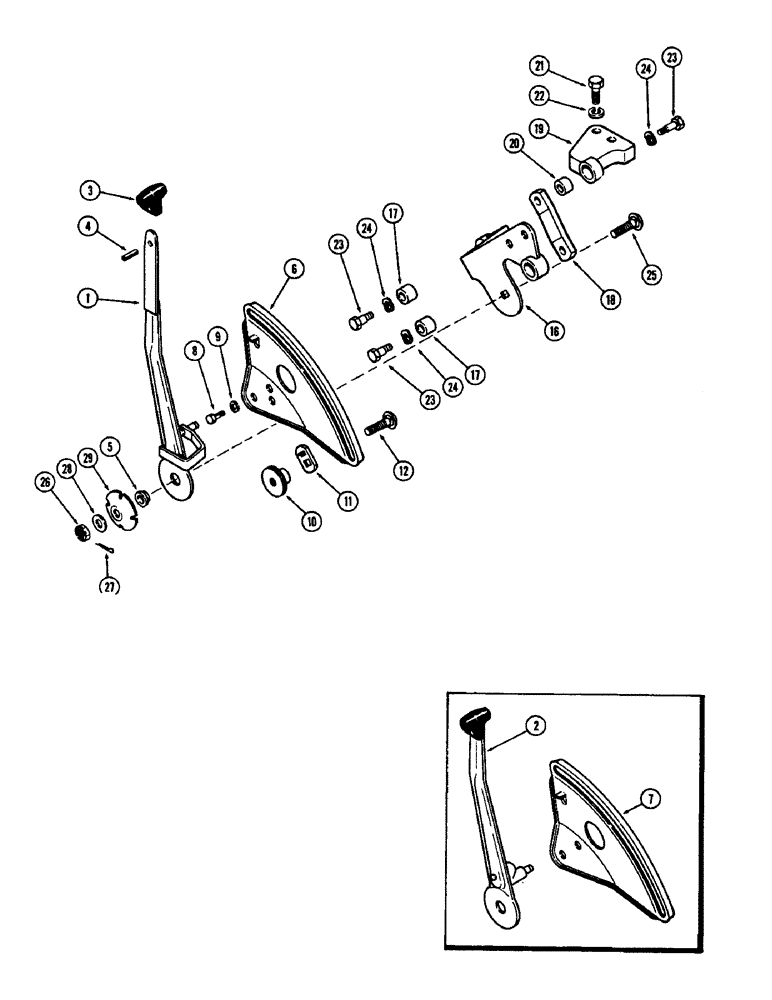

Запчасти Case 480CK (129A) - SENSING LINKAGE CONTROLS

1

A38374

LEVER ASSY. - draft control, Includes: Ref. 3 - 5, Start Serial: 8357671

1шт.

2

A35701

LEVER ASSY. - draft control, Includes: Ref. 3 - 5, Serial Range: -8357671

1шт.

3

A36509

KNOB - hand lever

1шт.

4

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

1шт.

5

G15947

BUSHING - pivot

1шт.

6

A38373

QUADRANT, Start Serial: 8357671

1шт.

7

A35123

QUADRANT, Serial Range: -8357671

1шт.

8

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

- 3/8 x 2" N.C. hex.

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

G15951

NUT

- quadrant stop

2шт.

11

G15950

STOP

- quadrant

1шт.

12

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

16

A35499

ARM ASSY. - lower, quadrant, Includes: Ref. 17

1шт.

17

A35112

BUSHING

- pivot, arm (3/4 x 1 x 3/4")

2шт.

18

A35502

LINK - lift, Serial Range: arm-quadrant

1шт.

19

A35491

BRACKET

ASSY. - lift arm link, Includes: Ref. 20

1шт.

20

A35112

BUSHING

- pivot (3/4 x 1 x 3/4")

1шт.

21

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

G49098

STEP BOLT

BOLT - pivot

3шт.

24

G49413

WASHER

- wave, pivot bolt

3шт.

25

G49100

BOLT - quad, Serial Range: lever-arm

1шт.

26

425-128

SLOTTED NUT,1/2"-13, G5

NUT - slotted, 1/2" N.C. hex

1шт.

27

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

1шт.

28

195-533

WASHER,1/2", SAE

(17/32 x 1-1/16 x 7/64") 1/2", SAE

1шт.

29

G49412

WASHER

- spring

1шт.
