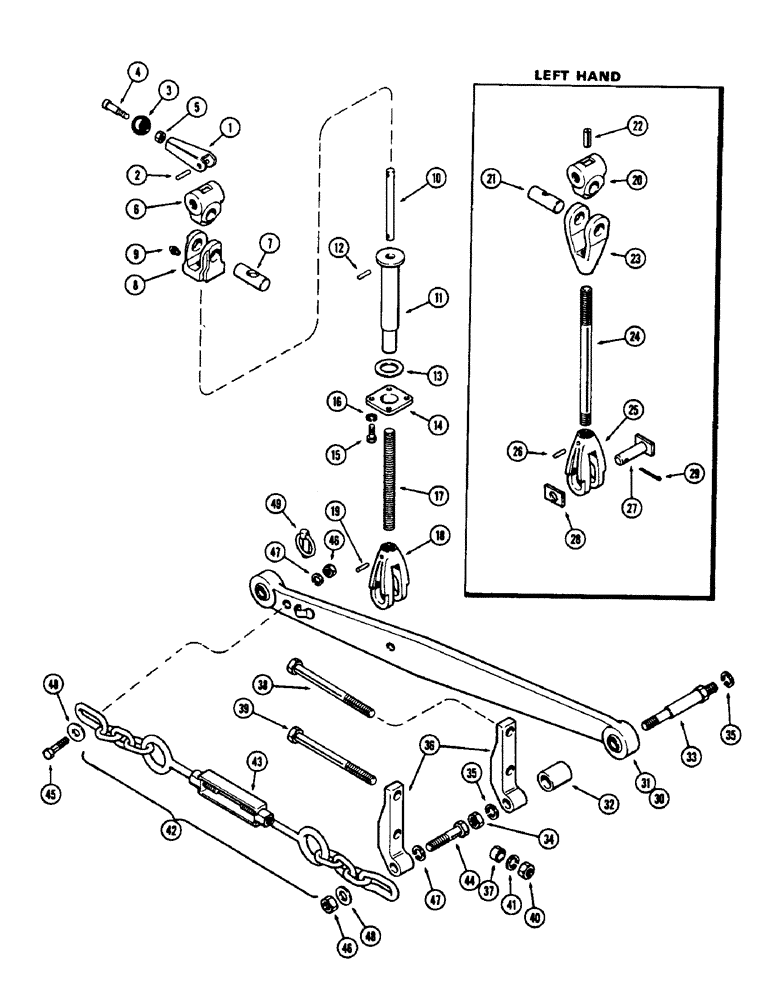

Запчасти Case 480CK (126) - DRAFT ARMS AND LIFT LINKS, DRAFT-O-MATIC

1

A35464

HANDLE

- adjusting screw

1шт.

2

138-2008

PIN,1/4" x 1 1/8", Coiled

1шт.

3

A35465

KNOB

- adjusting handle

1шт.

4

64-632

SCREW

BOLT - 3/8 x 2" N.C. fillister hd.

1шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

6

A37092

BLOCK

- swivel, lift link

1шт.

7

A35459

PIN

- pivot, lift link, right hand

1шт.

8

A35458

HOUSING - pivot, lift link, right hand

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

10

A35463

SHAFT

- adjusting handle

1шт.

11

A35460

TUBE

- lift link, right hand

1шт.

12

138-2008

PIN,1/4" x 1 1/8", Coiled

1шт.

13

NLS

NO LONGER SERVICED

- thrust, adjusting screw

1шт.

14

A35467

PLATE

- thrust, adjusting screw

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

A35469

SCREW,3/4" - 10 x 8 13/16"

- adjusting, right hand

1шт.

18

A35470

YOKE

- lower, lift link

1шт.

19

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

20

A37092

BLOCK

- swivel, lift link

1шт.

21

A35475

PIN - pivot, lift link, left hand

1шт.

22

138-201

LOCK PIN,1/2" x 1 1/4", Slotted

PIN, 1/2" x 1 1/4", Slotted

1шт.

23

A35474

YOKE - upper, left hand lift link

1шт.

24

A35477

ROD - lift link, left hand

1шт.

25

A35470

YOKE

- lower, lift link

1шт.

26

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

27

A36883

PIN

- pivot, link to draft arm

2шт.

28

A35472

PLATE

LOCK - pivot

2шт.

29

132-148

COTTER PIN,1/4" x 1 1/4"

PIN - split (Cotter), 1/4" x 1 1/4"

2шт.

30

A36769

DRAFT ARM - left hand

1шт.

31

A36768

DRAFT ARM - right hand

1шт.

32

A38214

SPACER

- pivot stud (Replaces A36386)

2шт.

33

A38215

STUD

- pivot, draft arm (Replaces A36388)

2шт.

34

25-1010

NUT,5/8"-11, G5

2шт.

35

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

36

G16911

BRACKET

- support, draft arm

4шт.

37

A35790

SPACER - bracket to axle housing

8шт.

38

14-10136

BOLT,Hex, 5/8" - 18 x 8-1/2", Gr 5

- 5/8 x 8-1/2" N.F. hex. hd.

4шт.

39

14-10128

BOLT,Hex, 5/8" - 18 x 8", Gr 5

- 5/8 x 8" N.F. hex. hd.

4шт.

40

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex.

8шт.

41

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

42

A36767

CHAIN (AG)

CHAIN - sway, Includes: Ref. 43

2шт.

43

A38201

TURNBUCKLE

- chain

1шт.

44

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

45

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

46

25-1010

NUT,5/8"-11, G5

4шт.

47

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

47

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

48

195-2071

WASHER

(21/32 x 2 x 1/4")

4шт.

49

A33509

PIN,11.18mm OD

KLIK PIN - draft arm

2шт.
