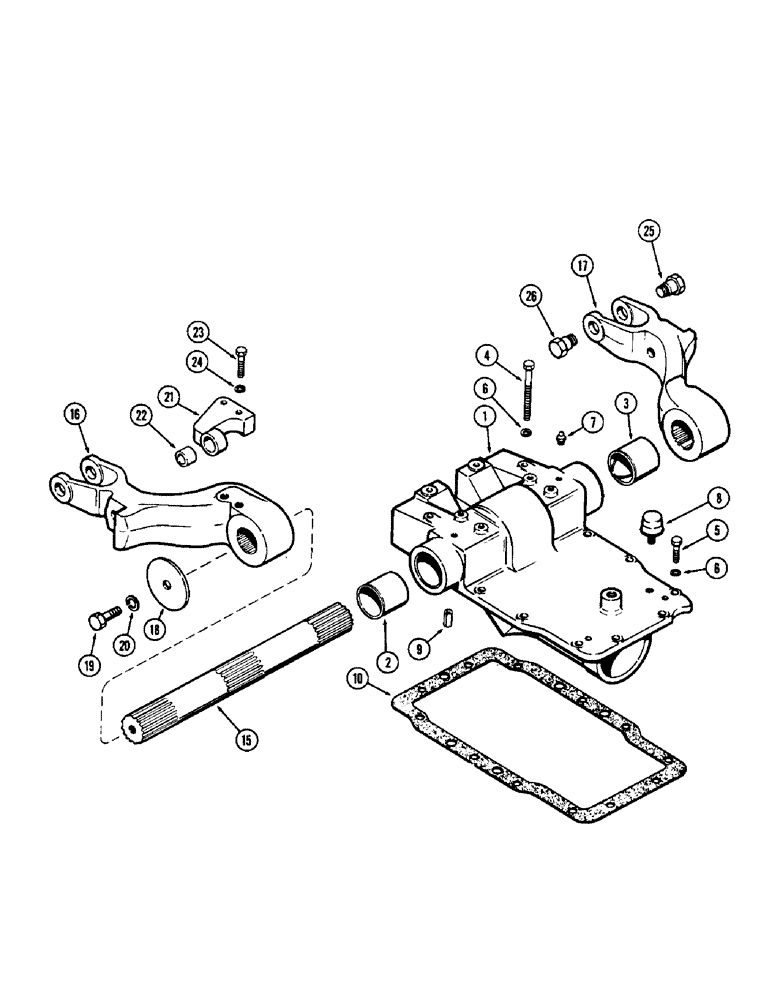

Запчасти Case 480CK (125A) - ROCKSHAFT, HOUSING AND LIFT ARMS

1

A38460

HOUSING ASSY. - rockshaft (Incl. ref. 2 & 3), Includes: Ref. 2 and 3, Start Serial: 8359243

1шт.

1

A37475

HOUSING ASSY. - rockshaft (Incl. ref. 2 & 3) (Order A38460), Includes: Ref. 2 and 3, Serial Range: -83259243

1шт.

2

G49662

BUSHING

- rockshaft, right hand (2-5/16 x 2-7/16 x 2-1/4")

2шт.

3

G49663

BUSHING

- rockshaft, left hand (2-1/16 x 2-3/16 x 2-1/4")

2шт.

4

113-237

X

BOLT - 3/8 x 4" N.C. hex. (Gr. 8)

4шт.

5

113-228

X

BOLT - 3/8 x 1-1/4" N.C. hex. (Gr. 8)

6шт.

6

92-6

LOCK WASHER,3/8"

10шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

2шт.

8

A27173

BREATHER

- oil

1шт.

9

138-199

LOCK PIN,1/2" x 3/4", Slotted

PIN, 1/2" x 3/4", Slotted

1шт.

10

G10941

GASKET

- housing to trans. case

1шт.

15

G10460

ROCKSHAFT

1шт.

16

A35454

ARM - lift, draft arm, right hand

1шт.

17

A35455

ARM - lift, draft arm, left hand

1шт.

18

A29186

WASHER

- retaining, lift arms

2шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

A35491

BRACKET

ASSY. - quadrant link (See Figure 129A), Includes: Ref. 22

1шт.

22

A35112

BUSHING

- pivot

1шт.

23

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

24

92-96

WASHER - lock, 3/8"

2шт.

25

A37093

STEP BOLT,3/4" - 10 x 1 1/2" LH

PIN - lift link (Left hand thread)

2шт.

26

A35457

SCREW

PIN - lift link (Right hand thread)

2шт.
