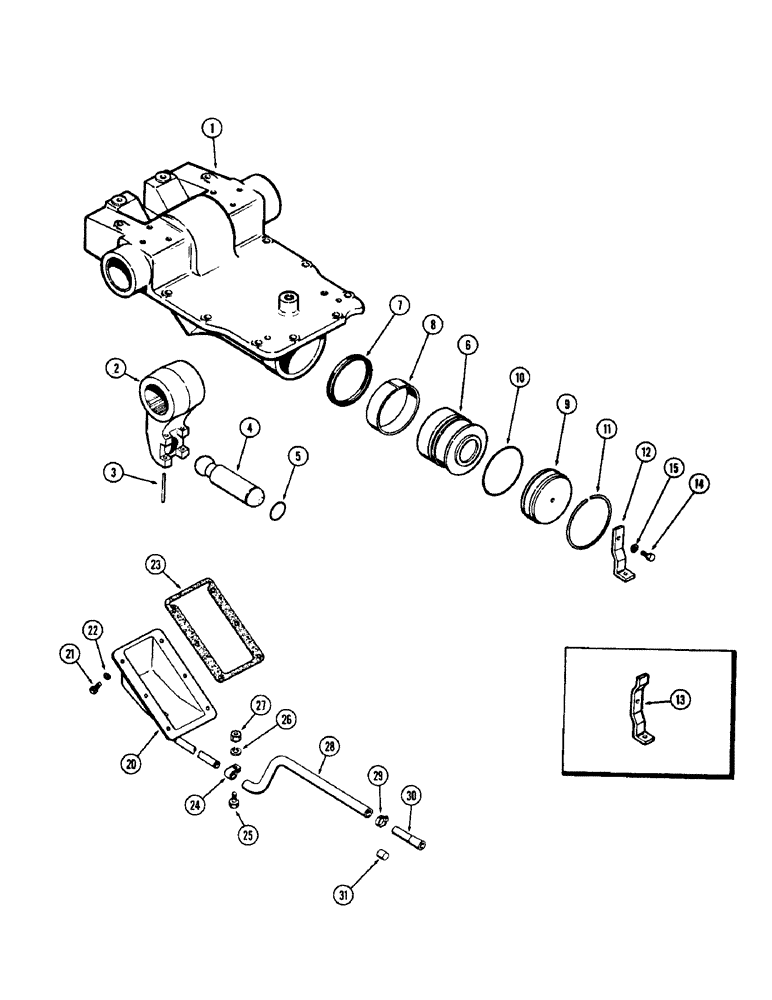

Запчасти Case 480CK (124) - ROCKSHAFT PISTON, DRAFT-O-MATIC

1

A38460

HOUSING ASSY. - rockshaft (See Figure 125A), Start Serial: 8359243

1шт.

1

A37475

HOUSING ASSY. - rockshaft (See. Figure 125A) (Order A38460), Serial Range: -8359243

1шт.

2

A37325

ARM - rocker, piston

1шт.

3

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

4

G30527

ROD

ASSY. - rocker arm to piston, Includes: Ref. 5

1шт.

5

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING - rod (1-1/4 x 1-1/2 x 1/8")

1шт.

6

A40799

PISTON

PISTON ASSY. - hydaulic, Includes: Ref. 7 and 8

1шт.

7

A36442

SEAL

RING - seal, "U" cup (3-1/4 x 3-3/4 x 3/8")

1шт.

8

A36441

SEAL ASSY.

RING - wear, piston

1шт.

9

A37326

CAP

- hydraulic cylinder

1шт.

10

A36405

O-RING,0.139" Thk x 3.484" ID, -238, Cl 6, 90 Duro

"O" RING - cylinder cap (3-1/2 x 3-3/4 x 1/8")

1шт.

11

A37327

RING, SNAP

RING - snap, cylinder cap

1шт.

12

A37808

BRACKET

- cap (Use w/A38460 housing), Start Serial: 8359243

1шт.

13

A37328

X

BRACKET - cap (Use w/A37475 housing), Serial Range: -8359243

1шт.

14

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

20

A38394

PAN - oil return (Has tube 13-1/8" long), Start Serial: 8349880

1шт.

20

A37329

FITTING

PAN - oil return (Has tube 11-1/2" long) (Order A38394), Serial Range: -8349880

1шт.

21

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

23

A38652

OIL PAN GASKET SET

- oil return pan (Replaces A37332)

1шт.

24

A37334

CLIP - hose to pan tube

1шт.

25

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

27

25-104

NUT,1/4"-20, G5

1шт.

28

A37333

HOSE

- oil pan, w/internal spring, Start Serial: 8349880

1шт.

28

A37346

HOSE

- oil pan, w/out internal spring, Serial Range: -8349880

1шт.

29

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose (9/16" to 1-1/16")

1шт.

30

A37335

TUBE - oil drain

1шт.

31

A38284

PLUG

- oil tube (w/no hitch) (Replaces A37403)

1шт.
