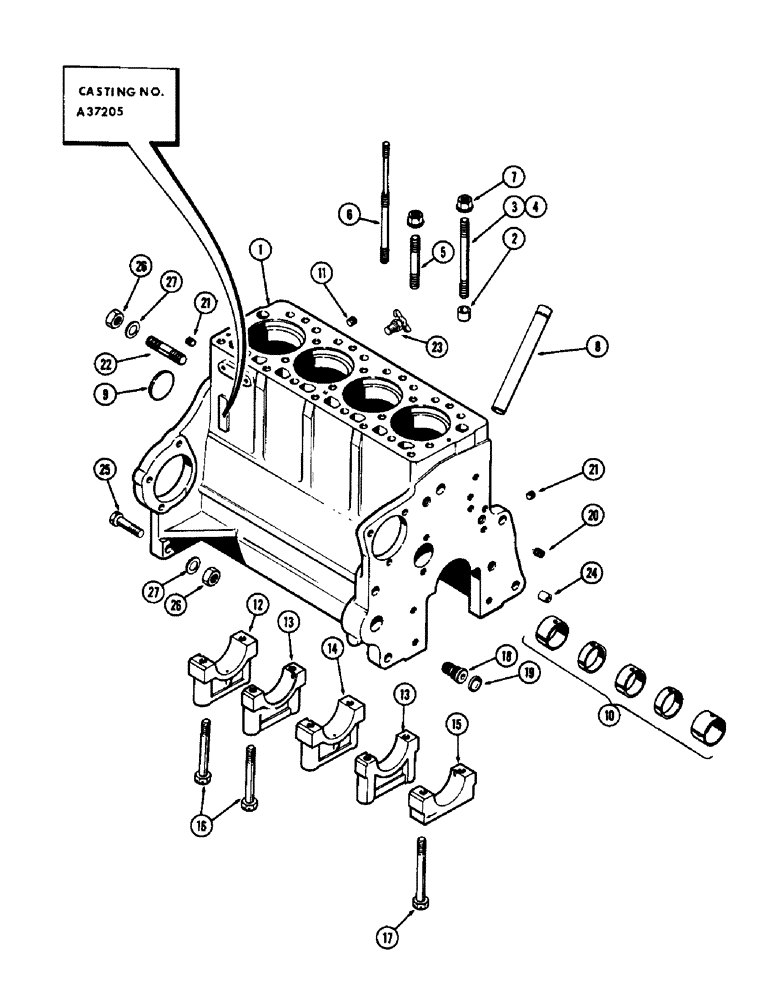

Запчасти Case 480CK (009E) - CYLINDER BLOCK ASSEMBLY, (188) DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2639536

A40817

BLOCK ASSY. - engine, short (Casting no. A37205) (Incl. crankshaft & brgs., connecting rods & brgs., camshaft, piston assy., oil pump & timing gears) (Order A42814) (See Figure 8), Includes: Ref. 1 - 24

1шт.

1

A40818

BLOCK ASSY - stripped (Casting #A37205) (Order A41597), Includes: Ref. 2 - 21

1шт.

2

G49608

RING

- dowel, cyl., Serial Range: hd.-block

2шт.

3

A36902

STUD

- cyl. head to block (1/2" N.C. x 5-5/8")

11шт.

4

A36905

STUD

- cyl. head to block (1/2" N.C. x 6")

2шт.

5

A36904

STUD

- cyl. head to block (1/2" N.C. x 4")

4шт.

6

A36903

STUD

- cyl. head &, Serial Range: cover-block

2шт.

7

A37030

FLANGE NUT

- cyl. head studs (1/2" N.C. flanged)

19шт.

8

A37149

TUBE

- oil gauge & filler

1шт.

9

A39241

PLUG,Exp, 2.12" dia

- expansion (2-1/8" Hubbard)

14шт.

10

A42746

CAM

BUSHING SET - camshaft (Replaces A41232)

1шт.

11

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - pipe, 3/8" socket hd.

1шт.

12

G2129

CAP

- main bearing, rear

1шт.

13

G2128

CAP

- main bearing, intermediate

2шт.

14

G2127

CAP

- main bearing, center

1шт.

15

G2126

CAP

- main bearing, front

1шт.

16

113-444

BOLT

- bearing cap (1/2 x 4-1/2" N.C. , sltd. hex.)

8шт.

17

113-445

BOLT

- frt. brg. cap & oil pump (1/2 x 5-1/8" N.C. hex., sltd.)

2шт.

18

A153552

ADAPTER

- oil filter

1шт.

19

41-1016

PLUG,Cup, 1"

- drilled, 1/4" P.T.

1шт.

21

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe Hex Soc, 1/4"-18 NPTF

25шт.

22

A29333

STUD

- engine mounting (5/8" N.C.-N.F.x 3")

2шт.

23

A23656

COCK, DRAIN

VALVE ASSY. - drain, block water

1шт.

24

A29442

RING

- dowel, timing, Serial Range: cover-block

2шт.

25

A30099

X

BOLT - engine to torque tube (5/8 x 3-1/2" N.F. hex.)

2шт.

26

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

4шт.

27

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

4шт.
