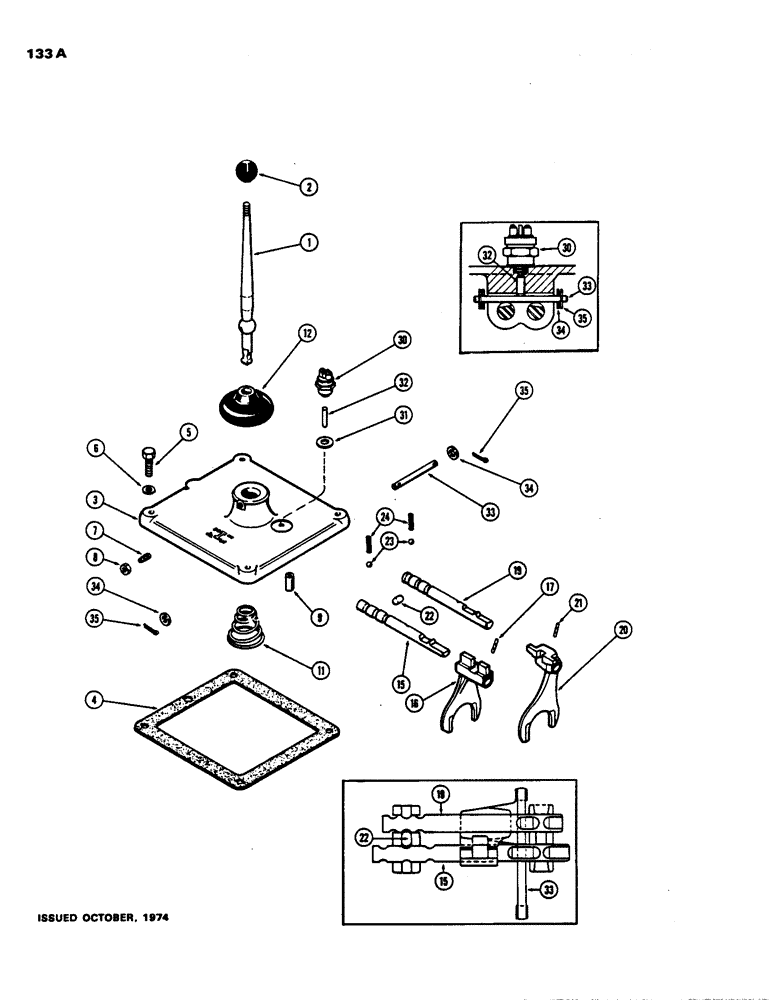

Запчасти Case 480B (133A) - GEAR SHIFT COVER, FIRST USED TRANSMISSION SERIAL NUMBER 2447415

1

G15465

LEVER

- gear shift

1шт.

2

A38920

BALL

KNOB - shift lever

1шт.

3

A51877

COVER - control

1шт.

4

G10342

GASKET

- cover

1шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

3шт.

5

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

1шт.

6

92-6

LOCK WASHER,3/8"

4шт.

7

G15468

SET SCREW,5/16" - 18 x 3/4"

- retaining, shift lever

1шт.

8

25-145

JAM NUT,Jam, 5/16"-18, G5

- jam, 5/16" N.C. hex.

1шт.

9

138-245

LOCK PIN,1/2" x 7/8", Slotted

Pin, , Cover to trans. case 1/2" x 7/8", Slotted

1шт.

11

G10611

SPRING

- support, shift lever

1шт.

12

A57876

COVER

- dust, shift lever

1шт.

15

A51879

ROD

RAIL - shift, 1st & 2nd speeds

1шт.

16

A38248

FORK TEDDER

FORK - shift, 1st & 2nd speeds

1шт.

17

138-2009

PIN,3/16" x 1", Coiled

1шт.

19

A51878

ROD

RAIL - shift, 3rd & 4th speeds

1шт.

20

A38234

FORK

- shift, 3rd & 4th speeds

1шт.

21

138-2009

PIN,3/16" x 1", Coiled

1шт.

22

A29060

PLUG

- interlock, short rail

1шт.

23

211-11

BALL,3/8" Dia

- detent, ., Includes: Ref. 24 3/8" Dia

2шт.

24

G47039

SPRING

- detent ball

2шт.

30

A20990

SWITCH

- safety, neutral start

1шт.

31

G49401

SHIM,.005" Thk

Safety switch .005" Thk

1шт.

31

G49402

SHIM,.010" Thk

Switch .010" Thk

1шт.

32

A51881

PIN - plunger, neutral start switch

1шт.

33

A51880

ROD

- neutral start

1шт.

34

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16

1шт.

35

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.
