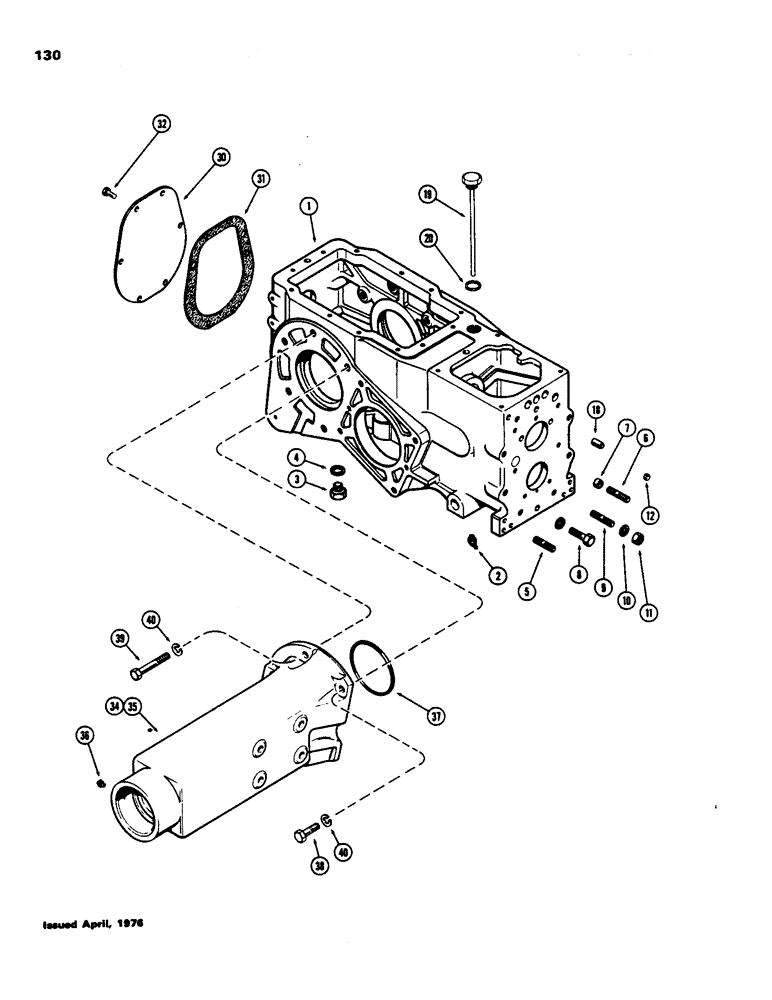

Запчасти Case 480B (130) - TRANSMISSION CASE AND AXLE HOUSINGS

1

A38714

CASE

- transmission

1шт.

2

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. 45 deg.

2шт.

3

A140222

PLUG

- drain (Replaces A14280)

1шт.

4

A58608

GASKET

- drain plug

1шт.

5

A38708

STUD

- torque tube, upper R.H. (1/2" N.C. - N.F. x 2-3/8")

1шт.

6

A38707

STUD

- torque tube, upper L.H. (1/2" N.C. - N.F. x 2-7/16")

1шт.

7

A50011

SLEEVE

- stud, upper L.H.

1шт.

8

113-465

BOLT

- torque tube, 1/2 x 2" N.C. hex. (Gr. 8)

4шт.

9

A38707

STUD

- torque tube, lower (1/2" N.C. - N.F. x 2-1/2")

2шт.

10

92-8

LOCK WASHER,1/2"

8шт.

11

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex.

4шт.

12

A39321

PLUG,Cup, 7/16"

- 7/16" cup type

1шт.

18

A29540

PIN

DOWEL - torque tube to trans. case

1шт.

19

A38306

DIPSTICK

- oil level

1шт.

20

A38660

GASKET

- dipstick

1шт.

30

A39105

COVER

- rear (w/o P.T.O.)

1шт.

31

G10447

GASKET

- rear cover

1шт.

32

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

34

A51892

HOUSING

- axle, R.H. rear (Replaces A37068)

1шт.

35

A51893

HOUSING

- axle, L.H. rear (R.H. shown) (Replaces A37069)

1шт.

36

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. 45 deg.

2шт.

37

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - housing to case (5" x 5-1/4 x 1/2")

2шт.

38

113-662

SCREW

BOLT - 5/8 x 2" N.C. hex. (Gr. 8)

2шт.

38

113-663

BOLT (SPREADER)

BOLT - 5/8 x 2-1/4" N.C. hex. (Gr. 8)

6шт.

39

113-667

BOLT - 5/8 x 4" N.C. hex. (Gr. 8)

2шт.

40

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.
