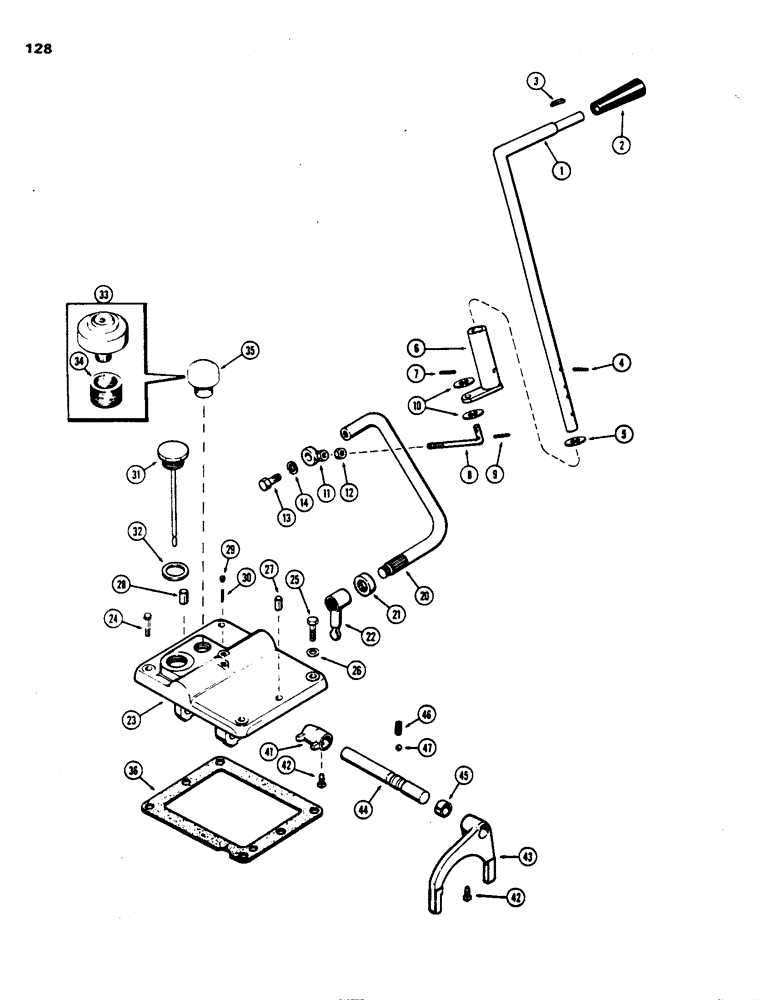

Запчасти Case 480B (128) - FOUR-SPEED SHUTTLE CONTROL COVER

1

A37427

LEVER

- hand, shuttle control

1шт.

2

A37247

KNOB

- hand lever

1шт.

3

A51528

OIL SEAL

RING - retainer, knob to hand lever

1шт.

4

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

1шт.

5

195-41

WASHER,5/8"

1шт.

6

A37242

LEVER

- lower

1шт.

7

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

1шт.

8

A38435

ROD

- connecting, lower lever

1шт.

9

138-45

LOCK PIN,3/32" x 1", Slotted

PIN, 3/32" x 1", Slotted

2шт.

10

95-6

WASHER,3/8"

- plain, 7/16 x 1 x 5/64"

2шт.

11

A32398

BALL JOINT

END - ball joint, Serial Range: rod-lever

1шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

20

A37419

LEVER

- lower, shuttle control

1шт.

21

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

- oil, control lever (3/4 x 1-1/4 x 3/8")

1шт.

22

G15659

LEVER

- shift fork

1шт.

23

A37657

COVER - shift control

1шт.

24

166-45

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8

SCREW - cap, 3/8 x 1" N.C. 12 pt. ferry

1шт.

25

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

3шт.

26

92-6

LOCK WASHER,3/8"

3шт.

27

A29426

AXLE PIN

PIN - dowel, control cover (3/8 x 3/4") (front)

1шт.

28

G10711

PIN

- dowel, control cover (1/2 x 3/4") (rear)

1шт.

29

221-1850

PLUG,Hex Soc, 1/16"-27

- cover, 1/16" socket hd.

1шт.

30

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

31

A38311

DIPSTICK

- oil level

1шт.

32

A38660

GASKET

- dipstick

1шт.

33

A9238

BREATHER

- oil (w/service filter) (Order A75179), Includes: Ref. 34

1шт.

34

A10059

FILTER, ELEMENT

ELEMENT - filter

1шт.

35

A75179

BREATHER

- oil (w/nylon washable filter)

1шт.

36

G46842

GASKET

- cover

1шт.

41

G16638

LUG

- shift rail

1шт.

42

A29964

LOCK SCREW,Sq Hd, 3/8" - 24 x 27/32", Drilled

- lock, shift lug & fork

2шт.

43

A36426

FORK

- shift, shuttle

1шт.

44

A36425

RAIL - shift fork

1шт.

45

A38203

SPACER

- shift rail (1/2" long)

1шт.

46

G47039

SPRING

- detent, shuttle rail

1шт.

47

211-11

BALL,3/8" Dia

- detent (.) 3/8" Dia

1шт.
