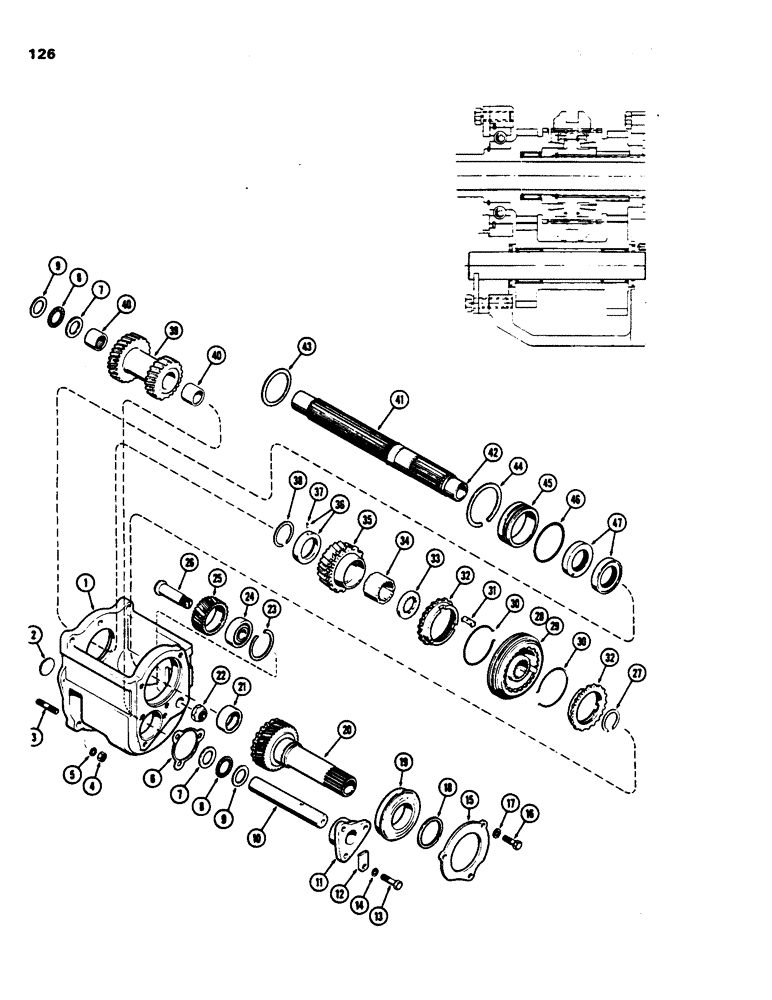

Запчасти Case 480B (126) - FOUR-SPEED SHUTTLE GEAR BOX

1

A36428

HOUSING - shuttle gear

1шт.

2

A30084

PLUG

- rear (1-1/4" exp. type)

1шт.

3

G10710

STUD

- housing to trans. (3/8" N.F. x 1-3/4")

7шт.

4

25-116

NUT,Hex, 3/8"-24, G5

3/8" N.F. hex.

7шт.

5

92-6

LOCK WASHER,3/8"

7шт.

6

G16616

SHIM,.005" Thk

Countershaft bearing .005" Thk

1шт.

7

G46082

WASHER

- thrust, cluster gear inner (.125")

2шт.

8

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST, Cluster gear

2шт.

9

G46081

BEARING WASHER

WASHER - thrust, cluster gear outer (.031")

2шт.

10

G16617

SHAFT

COUNTERSHAFT - cluster gear

1шт.

11

G1206

RING

BUSHING - front, countershaft

1шт.

12

G16618

LATCH

LOCK - countershaft

1шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

1шт.

13

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

14

92-6

LOCK WASHER,3/8"

3шт.

15

G16627

RETAINER

- bearing, input gear

1шт.

16

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

17

92-6

LOCK WASHER,3/8"

3шт.

18

A27209

RING

- snap, input gear bearing

1шт.

19

G13607

BALL BEARING

BEARING - ball, input gear

1шт.

20

A36611

GEAR

- shuttle input

1шт.

21

A35767

NEEDLE BEARING,Needle, 34.91mm ID x 44.46mm OD x 19.05mm W

BEARING - needle, input gear

1шт.

22

G16614

NUT

- reverse idler stud

1шт.

23

A27150

RING

- snap, idler gear bearing

1шт.

24

G13608

BALL BEARING

BEARING - ball, reverse idler gear

1шт.

25

G16612

GEAR

- reverse idler

1шт.

26

G16613

STUD

- bearing, reverse idler

1шт.

27

A27565

RING

- snap, synchronizer (.076")

1шт.

27

A27566

RING

- snap, synchronizer (.080")

1шт.

27

A27567

RING

- snap, synchronizer (.083")

1шт.

27

G46097

RING

- snap, synchronizer (.087")

1шт.

27

A27568

RING

- snap, synchronizer (.091")

1шт.

28

A51874

SYNCHRONIZER

UNIT - shuttle shift (Replaces G45049), Includes: Ref. 29 - 32

1шт.

29

NSS

NOT SOLD SEPARAT

HUB & SLEEVE - (Order G45049)

1шт.

30

A40766

SPRING

- shifter plate

2шт.

31

G46078

PLATE

- shifter

3шт.

32

G46077

RING

- blocking

2шт.

33

G16625

COLLAR

- thrust, output gear

1шт.

34

G16619

SLEEVE

- output gear

1шт.

35

G16624

GEAR

- output, shuttle (27 T)

1шт.

36

G13458

COLLAR

ASSY. - thrust, output gear, Includes: Ref. 37

1шт.

37

138-18

LOCK PIN,5/64" x 3/8", Slotted

PIN - roll, 5/16 x 3/8"

1шт.

38

A26946

RING

- snap, thrust collar

1шт.

39

G16615

GEAR

- cluster, countershaft (25 T & 30 T)

1шт.

40

G10420

NEEDLE BEARING

BEARING - needle, cluster gear

2шт.

41

A36427

SHAFT ASSY. - main drive, Includes: Ref. 42

1шт.

42

G10315

BUSHING

- main drive shaft

1шт.

43

G10341

SHIM,.005" Thk

Bearing, mainshaft front .005" Thk

1шт.

43

G10340

SHIM,.007" Thk

Mainshaft bearing, Front .007" Thk

1шт.

43

A51527

SHIM,.035" Thk

Main shaft front bearing .035" Thk

1шт.

44

A30092

RING

- snap, oil seal carrier

1шт.

45

G16605

HOUSING

CARRIER - oil seal, main shaft front

1шт.

46

G10389

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

"O" RING - carrier (2-5/8 x 2-7/8 x 1/8")

1шт.

47

G10422

OIL SEAL

- oil, main shaft front

2шт.
