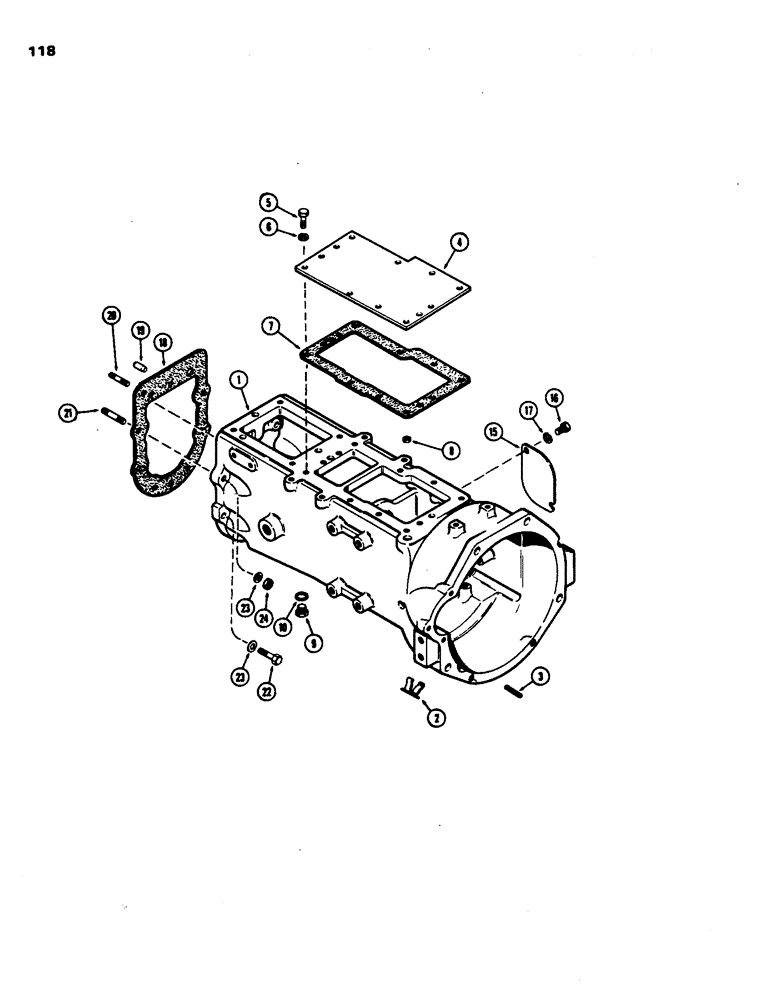

Запчасти Case 480B (118) - TORQUE TUBE

1

A39214

TUBE

- torque (Order A51792 & A51800)

1шт.

2

A35216

COVER

- timing hole

1шт.

3

138-65

LOCK PIN,1/8" x 1 1/2", Slotted

PIN, , Timing pointer 1/8" x 1 1/2", Slotted

1шт.

4

A39574

COVER - front (w/no hydraulics)

1шт.

5

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

11шт.

6

92-6

LOCK WASHER,3/8"

11шт.

7

G10876

GASKET

- front cover

1шт.

8

41-1010

PLUG,Cup, 5/8"

- locating hole (3/8" cup type)

1шт.

9

A140222

PLUG

- drain (Replaces A14280)

1шт.

10

A58608

GASKET

- drain plug

1шт.

15

A7082

COVER

- hand hole

1шт.

16

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - 3/8 x 1/2" N.C. hex.

1шт.

17

92-6

LOCK WASHER,3/8"

1шт.

18

A39029

GASKET

- torque tube to trans. case

1шт.

19

A29540

PIN

DOWEL - torque tube to trans. case

2шт.

20

A37992

STUD

- tube to trans. (1/2" N.C. - N.F. x 2-3/8")

1шт.

21

A37993

X

STUD - tube to trans. (1/2" N.C. - N.F. x 2-7/16")

1шт.

22

113-465

BOLT

- tube to trans. (1/2 x 2" N.C. hex. Gr 8)

2шт.

23

92-8

LOCK WASHER,1/2"

6шт.

24

25-178

NUT,1/2"-20, G5, Hvy

- 1/2" N.F. hex. (heavy)

4шт.
