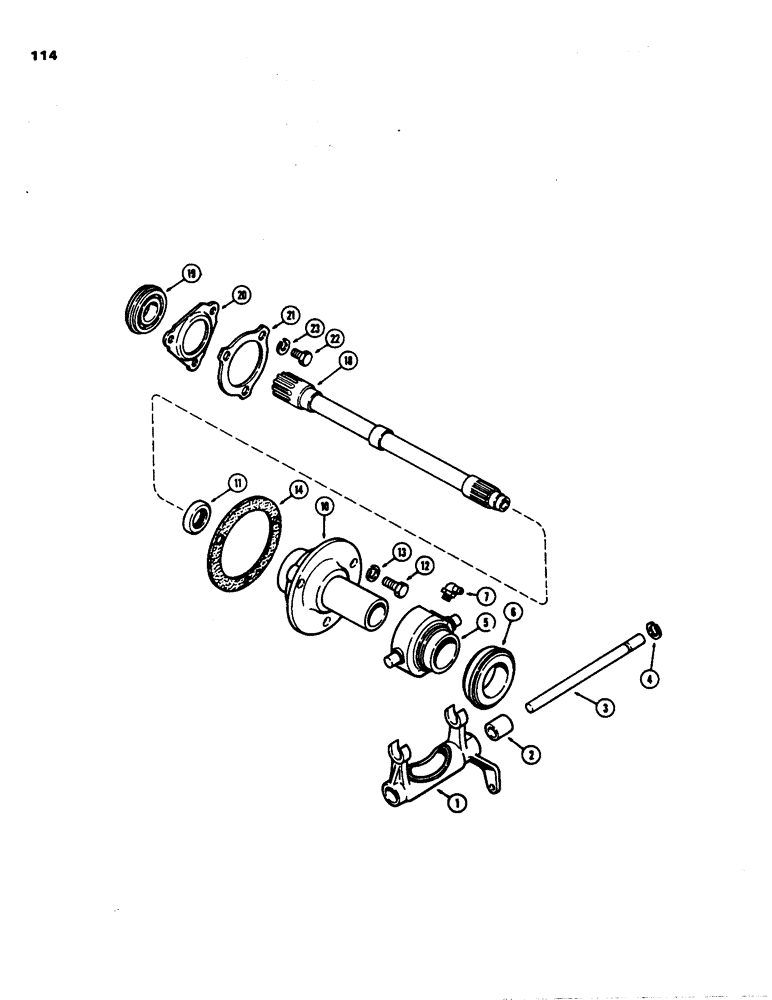

Запчасти Case 480B (114) - CLUTCH SHAFT AND THROWOUT

1

G14469

YOKE

ASSY. - clutch throwout, Includes: Ref. 2

1шт.

2

G49661

BUSHING

- pivot shaft

2шт.

3

A35029

SHAFT

- pivot, yoke

1шт.

4

A35030

RING

- snap, pivot shaft

1шт.

5

A37774

CARRIER

ASSY. - throwout bearing, Includes: Ref. 6

1шт.

6

A7538

BEARING

- throwout

1шт.

7

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" P.Y. 45 deg.

1шт.

10

A38634

CARRIER

SLEEVE ASSY. - carrier, Includes: Ref. 11

1шт.

11

A37611

OIL SEAL

- oil

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

13

92-6

LOCK WASHER,3/8"

3шт.

14

G10407

GASKET

- carrier sleeve

1шт.

18

A37618

SHAFT

- clutch

1шт.

19

A37733

BALL BEARING

BEARING - clutch shaft

1шт.

20

G10383

BEARING CAP

CAP - bearing retainer

1шт.

21

G10382

LOCK

- bearing retainer

1шт.

22

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

23

92-5

LOCK WASHER,5/16"

3шт.
