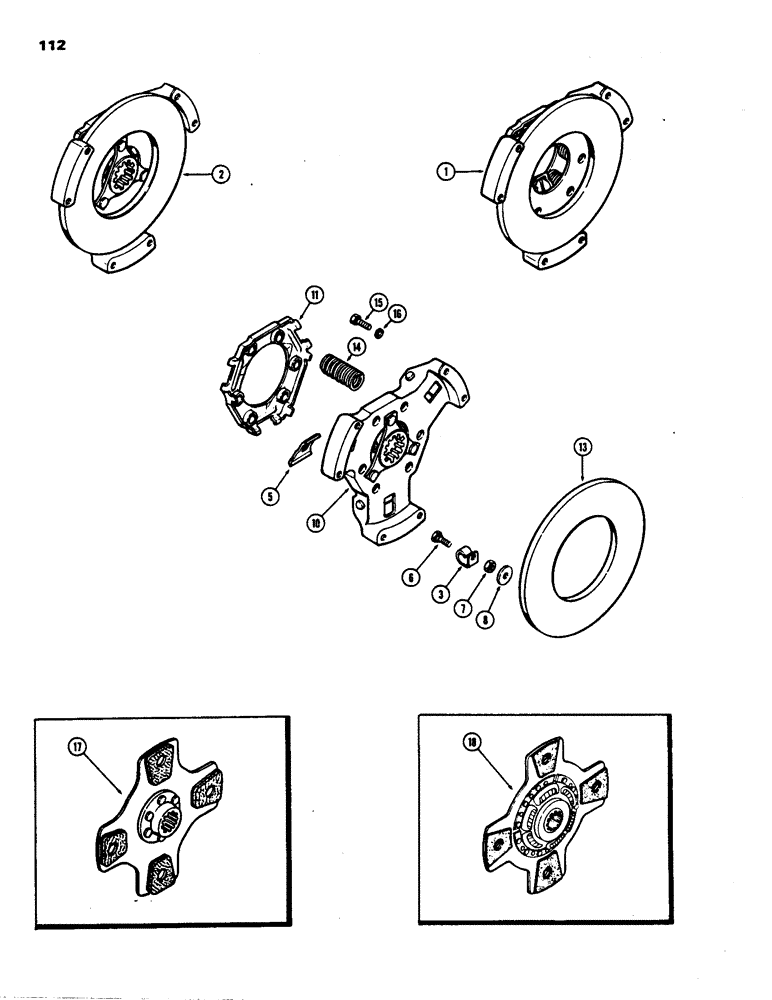

Запчасти Case 480B (112) - CLUTCH

1

A39213

PLATE

PLATE ASSY. - pressure (w/o hub) (Order A39212), Includes: Ref. 3 - 14

1шт.

2

A39212

CLUTCH

PLATE ASSY. - pressure (w/hub), Includes: Ref. 3 - 14

1шт.

2

A39212R

REMAN-CLUTCH PLATE

480B, Case Construction King Wheel Tractor

1шт.

2

A39212C

CORE-CLUTCH PLATE

Return Part Number

1шт.

3

A43607

CLIP

CLIP - clutch return

3шт.

5

A43605

LINK

LINK - lever

3шт.

6

A43608

SCREW,5/16" - 24 x 0.79", Steel

- adjusting

3шт.

7

G49005

SPARE PART NUT - jam, adjusting screw

3шт.

8

G49048

WASHER

WASHER - plain (21/64 x 1-1/4 x 1/8")

3шт.

10

A43660

BRACKET

BRACKET - (w/hub) (includes levers & pins)

1шт.

11

A43613

RING

RING - retaining, spring

1шт.

13

A43609

PLATE

PLATE - back, pressure

1шт.

14

A43612

SPRING

KIT - spring (Set of 6 yellow code)

1шт.

15

G11207

BOLT

BOLT - clutch of flywheel (5/16 x 1" N.C. hex.)

6шт.

16

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

6шт.

17

A39087

PLATE ASSY.

PLATE - driving (w/gas engine)

1шт.

18

A51840

CLUTCH DISC

CLUTCH DISK PLATE - driving (w/diesel engine) (Replaces A38389)

1шт.

18

1997844C1R

REMAN-CLUTCH DISC,276.35mm OD

Remanufactured Clutch Disc, 11 in., 21Tooth hub, 4 paddle

1шт.

18

1997844C1C

CORE-CLUTCH DISC

Return Part Number

1шт.
