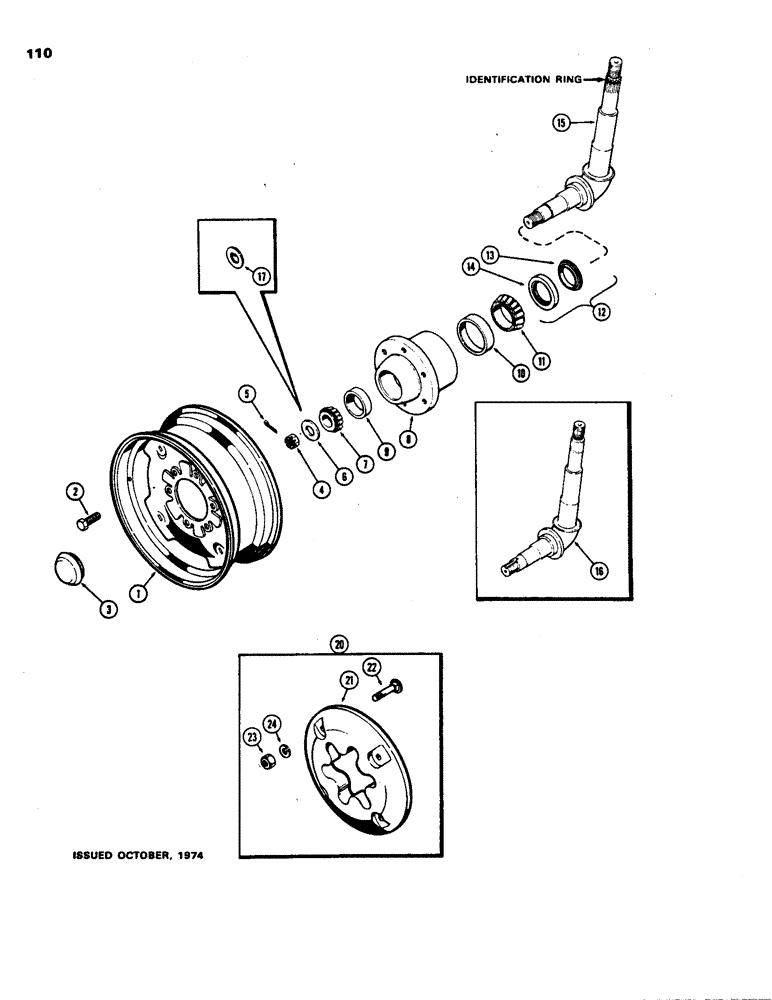

Запчасти Case 480B (110) - FRONT WHEEL, HUB AND SPINDLE

1

A38404

RIM

WHEEL - front (for 6.50 or 7.50 x 16 tire)

2шт.

2

B18264

WHEEL BOLT

BOLT - wheel to hub (9/16" N.F. x 1-5/32")

12шт.

3

A29425

CAP

- hub

2шт.

4

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hub to spindle (1-1/8" N.F. slotted)

2шт.

5

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

6

A62918

WASHER,28.96mm ID x 50.8mm OD x 4.78mm Thk

- hub nut, 1-9/64 x 2 x 3/16" (used w/A135648 spindle w/o keyway) (See ref. 17)

2шт.

7

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - outer bearing

2шт.

8

A57336

HUB

ASSY. - front wheel, Includes: Ref. 9 and 10

2шт.

9

A27631

CUP

- outer bearing

1шт.

10

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - inner bearing

1шт.

11

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - inner bearing

2шт.

12

A57250

OIL SEAL

KIT - seal, front wheel hub, Includes: Ref. 13 and 14

2шт.

13

NSS

NOT SOLD SEPARAT

SEAL - inner half

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - outer half

1шт.

15

A135648

SPINDLE

- front wheel (w/o keyway) (w/identification ring) (Replaces A39821)

1шт.

16

A57248

SPINDLE

- front wheel (w/keyway) (Order A135648 spindle & A62918 washer)

1шт.

17

A26789

BEARING WASHER

WASHER - hub nut, 1-9/64 x 2 x 3/16" (used w/ A57248 spindle w/ keyway)

2шт.

20

G12050

WEIGHT ATT. - front wheel (Set of 2) (Mach. Item), Includes: Ref. 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

WEIGHT - wheel, front

2шт.

22

11-848

BOLT - 1/2 x 3" N.C. rd. hd. sq. nk., front wheel weights

8шт.

23

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex., front wheel weights

8шт.

24

92-8

LOCK WASHER,1/2"

front wheel weights 1/2"

8шт.
