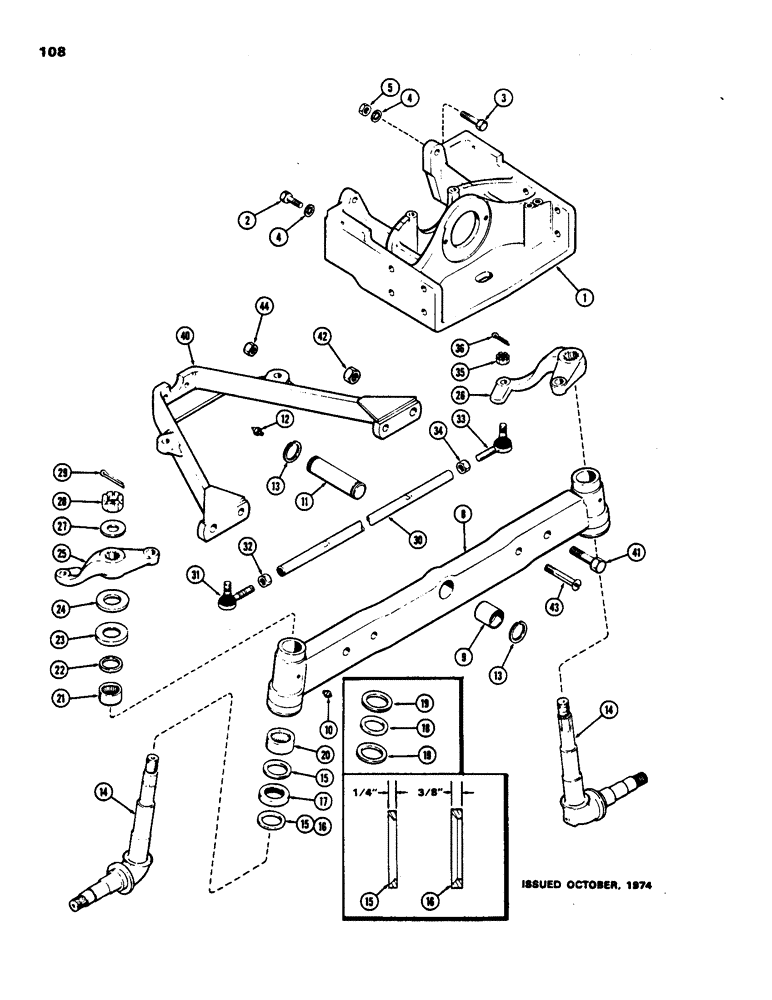

Запчасти Case 480B (108) - FRONT AXLE ASSEMBLY

1

A39319

SUPPORT - front axle & radiator

1шт.

2

113-633

SCREW

BOLT - lower, 5/8 x 2-1/4" N.C. hex. (Gr. 8)

2шт.

3

A38303

BOLT

BOLT - upper, (5/8 x 3-13/64" N.F. hex.)

1шт.

3

A135977

STEP BOLT

BOLT - 5/8 x 3-1/4" N.C. hex., shoulder

1шт.

4

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER - lock, 5/8" ext. Shakeproof

4шт.

5

25-1610

NUT,5/8"-11, G5, Hvy

- 5/8" N.C. hex.

2шт.

8

A38382

AXLE, FRONT

AXLE ASSY. - front

1шт.

9

A36282

BUSHING,44.3mm ID x 56.21mm OD x 50.8mm L

- pivot

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str

2шт.

11

A38384

PIN,44.09mm OD x 168.4mm L

- pivot, front axle

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str

1шт.

13

A27085

RING

- snap, pivot pin

2шт.

14

REF

INSTRUCTION

SPINDLE - wheel, R.H. & L.H. (See Figure 110)

2шт.

15

A36565

WASHER,51.2mm ID x 66.67mm OD x 6.35mm Thk

- thrust (1/4" thick. See Inset) (See ref. 16)

4шт.

16

A44603

BEARING WASHER,50.93mm ID x 66.55mm OD x 9.53mm Thk

WASHER - thrust (3/8" thick. See Inset) (Used beneath bearing trac. ser. no. 8711518 thru 8716638)

2шт.

17

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING - thrust, spindle (See ref. 18 & 19)

2шт.

18

NSS

NOT SOLD SEPARAT

WASHER - thrust (Prod. only) (Order A27602)

2шт.

19

NSS

NOT SOLD SEPARAT

WASHER - thrust (Prod. only) (Order A27602)

4шт.

20

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING - lower, (2 x 2-3/8 x 1")

2шт.

21

A28229

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

BEARING - upper, spindle (1-3/4 x 2-1/8 x 1")

2шт.

22

A27754

OIL SEAL

- oil, upper spindle

2шт.

23

A51533

GUARD

SHIELD - dust, bearing (Replaces A35344)

2шт.

24

A35861

SHIM,.0149" Thk

Wheel spindle .0149" Thk

1шт.

24

A35345

SHIM,.0359" Thk

Wheel spindle (3/64") .0359" Thk

1шт.

24

A35346

SHIM,.0598" Thk

Wheel spindle .0598" Thk

1шт.

25

A137742

ARM

- steering, R.H. (Replaces A37926)

1шт.

26

A137741

ARM

- steering, L.H. (Replaces A37927)

1шт.

27

A35047

WASHER

- steering arm (1-3/16 x 2-1/2 x 3/16")

2шт.

28

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - slotted, 1-1/8" N.F.

2шт.

29

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

30

A35567

TUBE

- tie rod, steering arm

1шт.

31

G45368

END ASSY.

END - R.H., tie rod

1шт.

32

G49084

JAM NUT

- lock, R.H. thrd

1шт.

33

G45369

END ASSY.

END - L.H., tie rod

1шт.

34

G49085

JAM NUT

- lock, L.H. thrd

1шт.

35

25-139

SLOTTED NUT,9/16"-18, G5

NUT - tie rod to arm (9/16" N.F. slotted)

2шт.

36

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

40

A36283

ROD

RADIUS ROD - front axle

1шт.

41

13-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

2шт.

42

25-1616

NUT,1"-8, G5, Hvy

- 1" N.C. hex.

2шт.

43

15-1264

X

BOLT - 3/4 x 4" N.C. rd. hd.

2шт.

44

25-1012

NUT,3/4"-10, G5

2шт.
