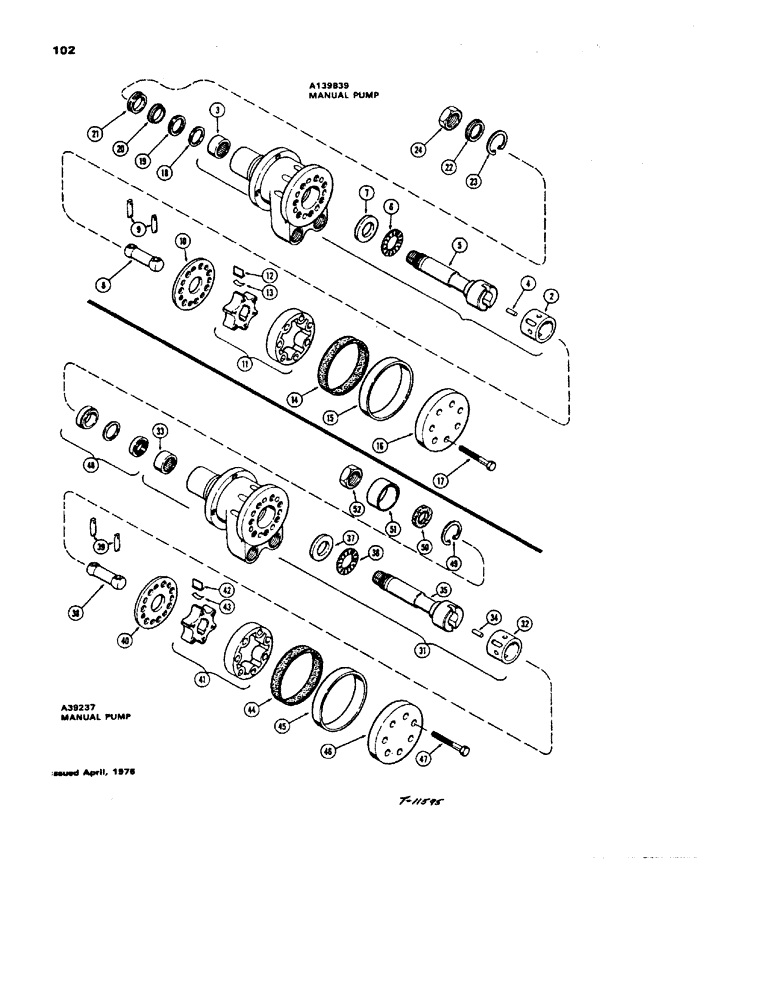

Запчасти Case 480B (102) - A139839 MANUAL PUMP, HYDROSTATIC STEERING
№
Артикул
Название
Примечание
Количество
A139839
PUMP
ASSY. - manual (Replaces A39237), Includes: Ref. 1 - 24
1шт.
1
F82945
BODY
ASSY, Includes: Ref. 2 and 3
1шт.
2
NSS
NOT SOLD SEPARAT
COMMUTATOR - (Order F82945)
1шт.
3
A30588
NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W
BEARING - needle
1шт.
4
F19631
PIN
- spool
1шт.
5
A40735
SHAFT
- coupling (Replaces F19632)
1шт.
6
F19633
NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W
BEARING - thrust
1шт.
7
F19634
BEARING WASHER
RACE - thrust bearing
1шт.
8
F19635
LINK
- rotor drive
1шт.
9
F19636
PIN
- link
2шт.
10
A42206
SPACER
- rotor
1шт.
11
A45348
ROTOR ASSY.
ROTOR SET - (matched rotor & stator), Includes: Ref. 12 and 13
1шт.
12
NSS
NOT SOLD SEPARAT
VANE - rotor
6шт.
13
A42219
SPRING
- vane
6шт.
14
84286702
RUBBER SEAL
- rotor
1шт.
15
A35787
RETAINER
- rotor seal
1шт.
16
F19641
COVER - end
1шт.
17
F19642
BOLT - end cover (5/16 x 1-3/4" N.C. hex.
7шт.
A45343
GASKET KIT
SEAL KIT - pump shaft, Includes: Ref. 18 - 22
1шт.
18
A43749
BACK-UP RING
WASHER - seal
1шт.
19
NSS
NOT SOLD SEPARAT
SPACER - seal ring
1шт.
20
NSS
NOT SOLD SEPARAT
SEAL - oil, inner
1шт.
21
NSS
NOT SOLD SEPARAT
SEAL - oil, outer
1шт.
22
D70586
SEAL,26.29mm ID x 41.66mm OD x 1.45mm Thk
- dust cover
1шт.
23
A21145
SNAP RING,1.25, Int, #125
Ring, Snap, 1.25", Int, #125
1шт.
24
A14567
JAM NUT
- shaft
1шт.
A39237
PUMP
ASSY. - manual (Order A139839), Includes: Ref. 31 - 52
1шт.
31
F82945
BODY
ASSY, Includes: Ref. 32 and 33
1шт.
32
NSS
NOT SOLD SEPARAT
COMMUTATOR - (Order F82945)
1шт.
33
A30588
NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W
BEARING - needle
1шт.
34
F19631
PIN
- spool
1шт.
35
A40735
SHAFT
- coupling (Replaces F19632)
1шт.
36
F19633
NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W
BEARING - thrust
1шт.
37
F19634
BEARING WASHER
RACE - thrust bearing
1шт.
38
F19635
LINK
- rotor drive
1шт.
39
F19636
PIN
- link
2шт.
40
A42206
SPACER
- rotor
1шт.
41
A43520
ROTOR ASSY.
ROTOR SET - (matched rotor & stator), Includes: Ref. 42 and 43
1шт.
42
NSS
NOT SOLD SEPARAT
VANE - motor
6шт.
43
A42219
SPRING
- vane
6шт.
44
84286702
RUBBER SEAL
- rotor
1шт.
45
A35787
RETAINER
- rotor seal
1шт.
46
F19641
COVER - end
1шт.
47
F19642
BOLT - 5/16 x 1-3/4" N.C. hex.
7шт.
48
A40624
SEAL
KIT - pump shaft
1шт.
49
A21145
SNAP RING,1.25, Int, #125
Ring, Snap, 1.25", Int, #125
1шт.
50
F19645
BUSHING
SEAL - felt, dust cover
1шт.
51
A42057
SEAL
RETAINER - dust seal
1шт.
52
A14567
JAM NUT
- shaft
1шт.
Выбрано товаров: 49
