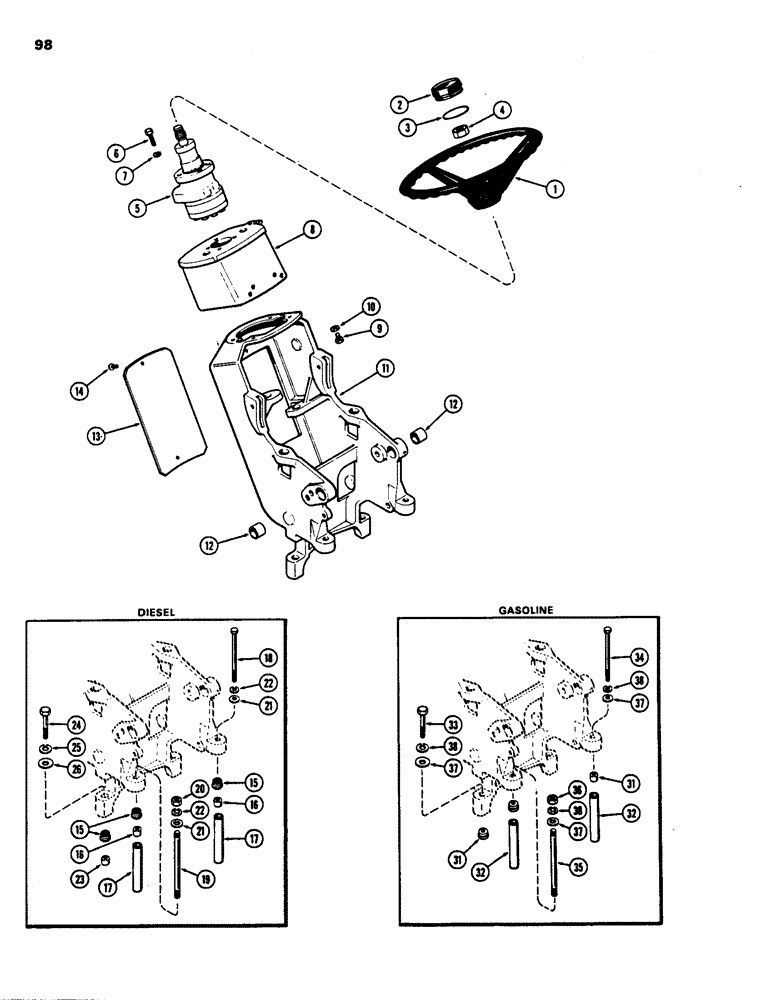

Запчасти Case 480B (098) - STEERING WHEEL AND SUPPORTS, HYDROSTATIC STEERING

1

A65544

STEERING WHEEL

(Replaces A61007)

1шт.

2

A62210

PLUG

MEDALLION - steering wheel

1шт.

3

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

"O" RING - medallion (2-1/8 x 2-3/8 x 1/8")

1шт.

4

A14567

JAM NUT

- steering wheel (part of pump)

1шт.

5

REF

INSTRUCTION

PUMP ASSY. - manual (Repairs Figure 102)

1шт.

6

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex.

4шт.

7

92-5

LOCK WASHER,5/16"

4шт.

8

A37428

COLUMN - steering

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

A39380

SUPPORT

ASSY. - steering column, Includes: Ref. 12

1шт.

12

A37530

BUSHING

- cross shaft, brake pedal

2шт.

13

A39384

COVER - support

1шт.

14

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- 1/4 x 1/2" truss hd.

2шт.

15

G45343

COMPOSITE RING

BUSHING - mounting (w/rubber insert), support hardware (188) diesel eng

4шт.

16

A37418

SPACER

- top front (1/2" high), support hardware (188) diesel eng

2шт.

17

G49624

SPACER

- bottom front (4-7/8" high), support hardware (188) diesel eng

2шт.

18

13-6108

BOLT,Hex, 3/8" - 16 x 6-3/4", Gr 5

L.H. front, support hardware (188) diesel eng Hex, 3/8"-16 x 6 3/4", G5

1шт.

19

A38169

STUD

- R.H. front (3/8" N.C. x 7-3/16"), support hardware (188) diesel eng

1шт.

20

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., support hardware (188) diesel eng

1шт.

21

95-6

WASHER,3/8"

- plain, 7/16 x 1 x 5/64", support hardware (188) diesel eng

2шт.

22

92-6

LOCK WASHER,3/8"

support hardware (188) diesel eng 3/8"

2шт.

23

G49622

SPACER,5/8" Tube x 1 7/16"

- rear (1-7/16" high), support hardware (188) diesel eng

2шт.

24

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- rear, 3/8 x 2-3/4" N.C. hex., support hardware (188) diesel eng

2шт.

25

92-6

LOCK WASHER,3/8"

support hardware (188) diesel eng 3/8"

2шт.

26

95-6

WASHER,3/8"

- plain, 7/16 x 1 x 5/64", support hardware (188) diesel eng

2шт.

31

A35627

BUSHING

- mounting, flanged, (148B) spark ignition eng

4шт.

32

G49624

SPACER

- front (4-7/8" high), (148B) spark ignition eng

2шт.

33

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- rear, 3/8 x 2-3/4" N.C. hex., (148B) spark ignition eng

2шт.

34

13-6108

BOLT,Hex, 3/8" - 16 x 6-3/4", Gr 5

L.H. front, (148B) spark ignition eng Hex, 3/8"-16 x 6 3/4", G5

1шт.

35

A38169

STUD

- R.H. front (3/8" N.C. x 7-3/16"), (148B) spark ignition eng

1шт.

36

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., (148B) spark ignition eng

1шт.

37

95-6

WASHER,3/8"

- plain, 7/16 x 1 x 5/64", (148B) spark ignition eng

4шт.

38

92-6

LOCK WASHER,3/8"

(148B) spark ignition eng 3/8"

4шт.
