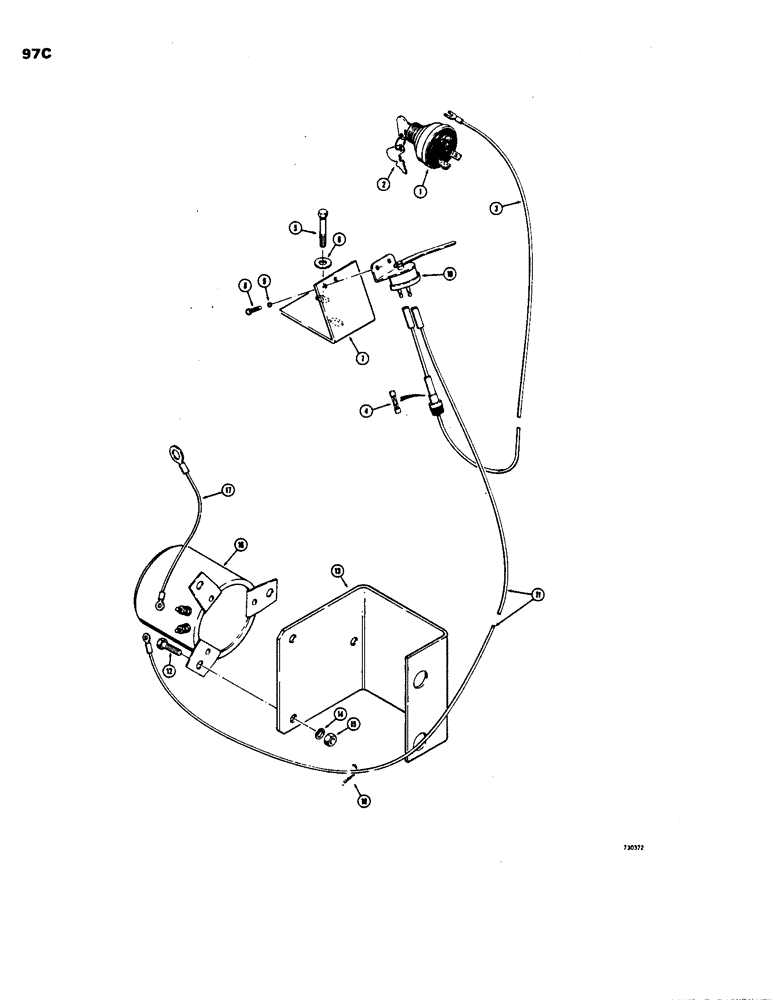

Запчасти Case 480B (097C) - BACKUP ALARM

1

A24510

SWITCH

- starting w/keys (Diesel) (spark ignition engine)

1шт.

1

A24511

SWITCH

- ignition w/key (Gas engine)

1шт.

2

A24509

KEY

- ignition switch (Set of 2)

1шт.

3

D51824

WIRE - starting switch to alarm switch

1шт.

4

223-14

FUSE,10 Amp, Type SFE

- protective, 14 amp.

1шт.

5

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

2шт.

6

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

7

D51822

BRACKET - mounting, alarm switch

1шт.

8

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- mach., round hd. (#10-32 NC x 7/16")

2шт.

9

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

10

A33977

SWITCH

- backup alarm

1шт.

11

D51823

ELECTRICAL WIRE

WIRE - alarm, Serial Range: switch-alarm

1шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

13

D57441

BRACKET - mounting, alarm

1шт.

14

92-5

LOCK WASHER,5/16"

3шт.

15

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

3шт.

16

D51820

ALARM

- safety, backup

1шт.

17

D51905

ELECTRICAL WIRE

WIRE - ground, alarm

1шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tie, alarm wire

3шт.
