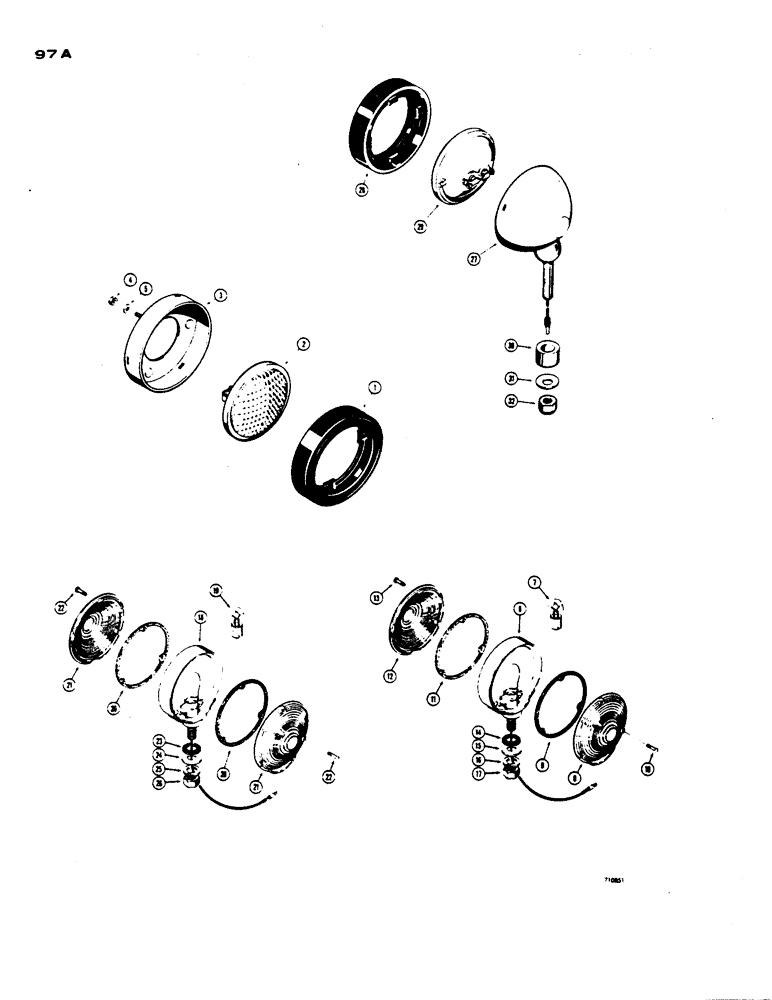

Запчасти Case 480B (097A) - D30243 HEAD LIGHT

D30243

LAMP

LIGHT ASSY. - front head, Includes: Ref. 1 - 3

2шт.

1

A25213

RETAINER

- light (Use w/Hobbs Assy.)

1шт.

1

D31441

RETAINER

- light (Use w/Guide Lamp Assy.)

1шт.

2

D33182

LAMP

LIGHT - sealed beam

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - (Order D30243)

1шт.

4

129-7

NUT,Hex, #10 - 24

- hex. #10-24

6шт.

5

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

6шт.

D49733

LAMP

LIGHT ASSY. - stop & tail, Includes: Ref. 6 - 17

2шт.

6

NSS

NOT SOLD SEPARAT

BODY - (Order D49733), D49733 stop & tail light

1шт.

7

T34857

BULB,C6, #1157, 12.8V

- light, 12 volt (#1157), D49733 stop & tail

1шт.

L32213

LENS

KIT - replacement (red), D49733 stop & tail light, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

LENS - red, D49733 stop & tail light

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET - lens, D49733 stop & tail light

1шт.

10

173-279

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

- #6-32 x 5/8" rd. hd., D49733 stop & tail light

3шт.

L32214

LENS

KIT - replacement (amber), D49733 stop & tail light, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET - lens, D49733 stop & tail light

1шт.

12

NSS

NOT SOLD SEPARAT

LENS - amber, D49733 stop & tail light

1шт.

13

173-279

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

- #6-32 x 5/8" rd. hd., D49733 stop & tail light

3шт.

14

L32256

WASHER

BUSHING - rubber, D49733 stop & tail light

1шт.

15

195-105

WASHER,7/16"

- plain, 1/2 x 1-1/4 x 5/64", D49733 stop & tail light

1шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , D49733 Stop & tail light 1/2"

1шт.

17

129-125

NUT,1/2"-20, G5

D49733 Stop & tail light 1/2"-20, G5

1шт.

D49734

LAMP

LIGHT ASSY. - signal & flasher, Includes: Ref. 18 - 26

2шт.

18

NSS

NOT SOLD SEPARAT

BODY, D49734 signal & flasher light

1шт.

19

A41264

BULB,#1156, 12V

Light, D49734 Signal & flasher light #1156, 12V

1шт.

L32214

LENS

KIT - replacement, D49734 signal & flasher light, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

GASKET - lens, D49734 signal & flasher light

1шт.

21

NSS

NOT SOLD SEPARAT

LENS - amber, D49734 signal & flasher light

1шт.

22

173-279

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

#6-32 x 5/8" rd. hd., D49734 signal & flasher light

3шт.

23

L32256

WASHER

BUSHING - rubber, D49734 signal & flasher light

1шт.

24

195-105

WASHER,7/16"

- plain, 1/2 x 1-1/4 x 5/64", D49734 signal & flasher light

2шт.

25

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , D49734 Signal & flasher light 1/2"

1шт.

26

129-125

NUT,1/2"-20, G5

D49734 Signal & flasher light 1/2"-20, G5

1шт.

D49976

LIGHT

ASSY. - rear flood, Includes: Ref. 27 - 32

2шт.

27

NSS

NOT SOLD SEPARAT

BODY, D49976 rear flood light

1шт.

28

A25213

RETAINER

- rubber, D49976 rear flood light

1шт.

29

A24572

LAMP

LIGHT KIT - sealed beam, D49976 rear flood light

1шт.

30

D37048

BUSHING

- pivot, D49976 rear flood light

1шт.

31

195-106

WASHER,1/2"

- plain, 9/16 x 1-3/8 x 7/64", D49976 rear flood light

1шт.

32

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - lock, 1/2" N.F. hex., D49976 rear flood light

1шт.
