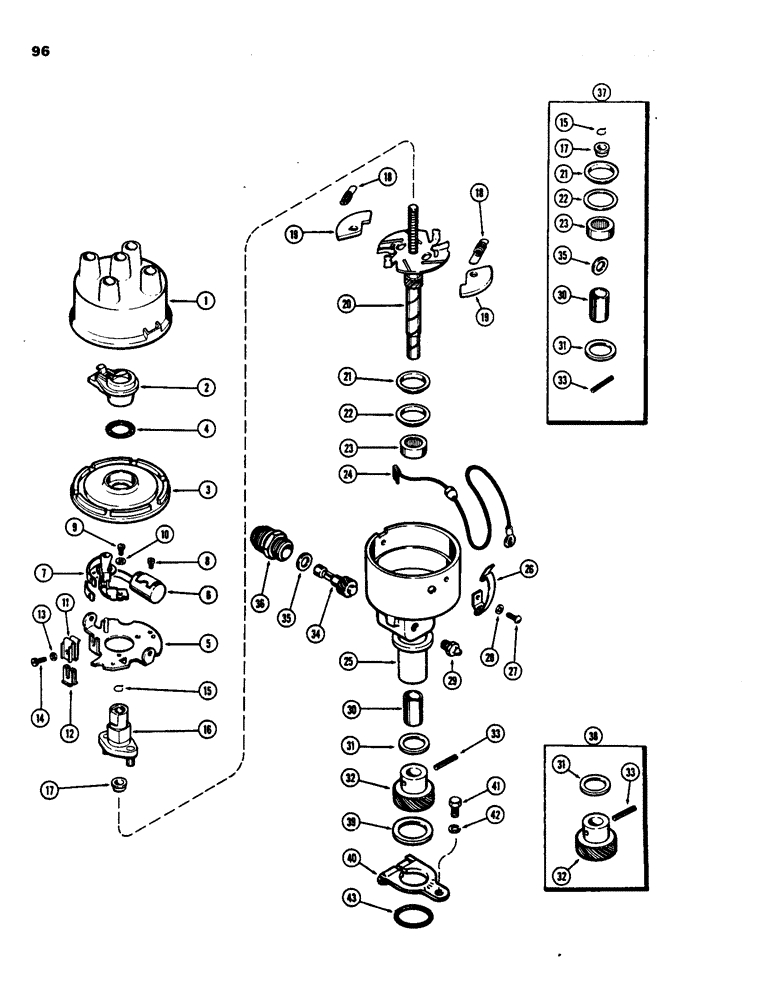

Запчасти Case 480B (096) - DISTRIBUTOR, (148B) SPARK IGNITION ENGINE

A18461

DISTRIBUTOR

ASSY. - (Auto-Lite #IBT-4403A), Includes: Ref. 1 - 37

1шт.

1

A24564

CAP

ASSY. - distributor

1шт.

2

A24566

ROTOR

- distributor

1шт.

3

A24763

PLATE

COVER ASSY. - breaker plate, Includes: Ref. 4

1шт.

4

A24764

WASHER

SEAL - felt

1шт.

5

A40330

PLATE

ASSY. - breaker, Includes: Ref. 6 - 14

1шт.

A40930

KIT

CONTACT KIT

1шт.

6

NSS

NOT SOLD SEPARAT

CONDENSER - (Order A40930), Includes: Ref. 7

1шт.

7

NSS

NOT SOLD SEPARAT

POINTS - breaker (Order A40930)

1шт.

8

A24776

SCREW,Locking, #8 - 32 x 3/16"

- condenser (#6-32 x 5/32" fill hd.)

1шт.

9

A24779

SCREW - plate (#8-32 x 3/16" fill. hd.)

2шт.

10

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

11

A24774

CLIP

- primary wire

1шт.

12

A24773

INSULATOR

- primary wire

1шт.

13

195-6

WASHER,#6

- plain, 5/32 x 5/16 x 3/64"

1шт.

14

171-216

SCREW,Sl Flat Hd, #6 - 32 x 5/16"

- retainer (#6-32 x 5/16" hex. hd.)

1шт.

15

A24756

RING - snap, cam retaining (See ref. 37)

1шт.

16

A42429

PLATE - cam & stop

1шт.

17

A24757

SPACER - cam (See ref. 37)

1шт.

18

A24778

SPRING KIT

- governor (Set of 2)

1шт.

19

A41388

WEIGHT - governor (Set of 2)

1шт.

20

A25979

SHAFT

- drive

1шт.

21

A24758

WASHER - thrust, inner (See ref. 37)

1шт.

22

A24759

WASHER - thrust, outer (See ref. 37)

1шт.

23

A24767

BEARING

- needle (See ref. 37)

1шт.

24

A25965

HARNESS

WIRE - primary lead

1шт.

25

NSS

NOT SOLD SEPARAT

BASE - distributor (Order A18461)

1шт.

26

A40329

SPRING

LOCK KIT - cap retainer

1шт.

27

A24775

SCREW,0.138"-32 x 1/32"

- cap lock (#8-32 x 5/16" rd. hd.)

2шт.

28

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

29

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 1/4" - 20 x 90 deg.

1шт.

30

A24766

BUSHING

BEARING - bronze, drive shaft (See ref. 37)

1шт.

31

A25200

WASHER

- thrust, lower (See ref. 37 & 38)

1шт.

32

NSS

NOT SOLD SEPARAT

GEAR - drive (Order ref. 38)

1шт.

33

A25201

PIN

- drive gear (See ref. 37 & 38)

1шт.

34

A24761

SHAFT

& GEAR - tachometer drive

1шт.

35

A24755

WASHER - thrust, tach. drive (See ref. 37)

1шт.

36

A24781

HOUSING - tach. drive gear

1шт.

37

A40326

PACKAGE, REPAIR

REPAIR KIT - drive shaft

1шт.

38

A40323

GEAR

REPAIR KIT - drive gear

1шт.

39

A30080

THRUST WASHER

- thrust, Serial Range: dist.-block

1шт.

40

A29989

ARM

ASSY. - advance

1шт.

41

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

42

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

1шт.

43

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - dist. to block (1-1/16 x 1-5/16 x 1/8")

1шт.
