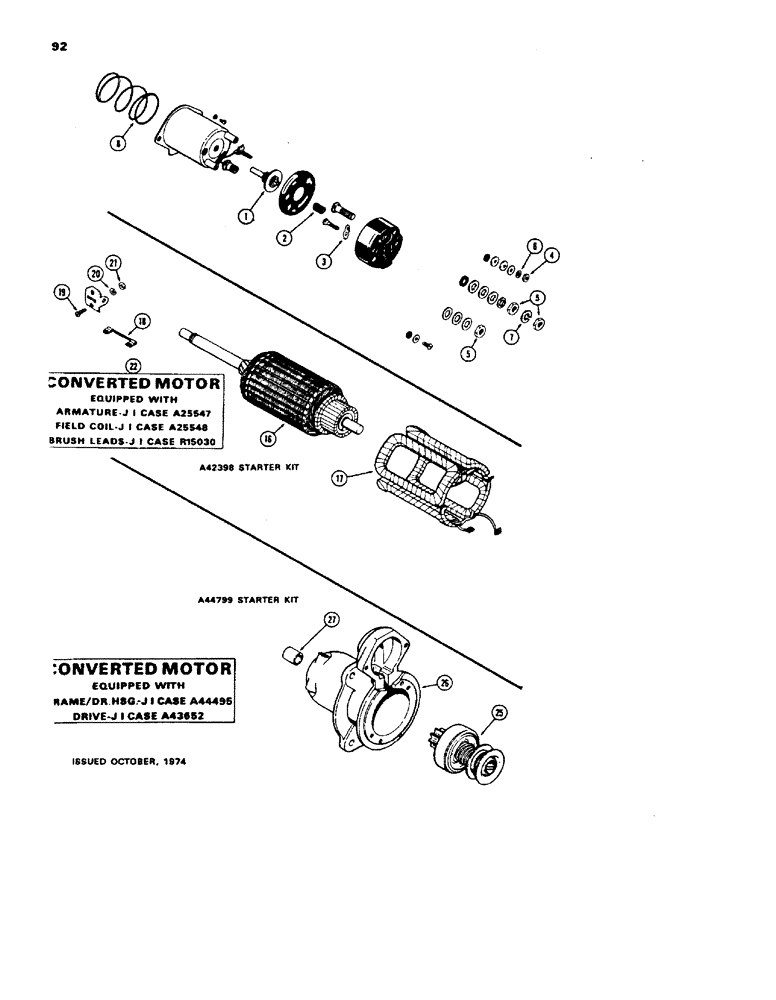

Запчасти Case 480B (092) - SOLENOID, (188) DIESEL ENGINE

G44891

SOLENOID

SOLENOID ASSY. - (Delco #1114356), Includes: Ref. 1 - 8

1шт.

See Delco-Remy service station for parts illustrated but not listed

1шт.

1

A42061

SWITCH

CONTACT ASSY

1шт.

2

A42059

SPRING

SPRING - contact return

1шт.

3

A42060

HALF BLADE

BLADE - contact

1шт.

4

129-16

NUT,#8-32

NUT, , Terminal #8-32

4шт.

5

NSS

NOT SOLD SEPARAT

NUT - terminal (3/8" N.C. hex.)

3шт.

6

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

A40221

SPRING

SPRING - plunger return

1шт.

A42398

CONVERSION KIT

KIT - starter conversion (To convert A36582 & A36583 starters to A39839 starter), Includes: Ref. 16 - 22

1шт.

16

A25547

ARMATURE

ARMATURE

1шт.

17

A25548

COIL

COIL - field

1шт.

18

R15030

ELECTRICAL WIRE

WIRE LEAD - ground

2шт.

19

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - brush support, #10-24 x 1/2" rd. hd.

4шт.

20

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

21

129-17

NUT,Hex, #10 - 24

NUT - hex. #10-24

4шт.

22

321-2936

DECAL

DECAL

1шт.

A44799

KIT

KIT - starter conversion (To convert A36582 starter to A51873 starter), Includes: Ref. 25 - 28

1шт.

87421540

REMAN-STARTER DRIVE

480B CASE CONSTRUCTION KING WHEEL TRACTOR, Reman for New PN A44799

1шт.

87421541

CORE-STARTER DRIVE

Return Part Number

1шт.

25

A43652

DRIVE

DRIVE ASSY.

1шт.

25

87421540

REMAN-STARTER DRIVE

480B CASE CONSTRUCTION KING WHEEL TRACTOR, DRIVE ASSY, Reman for New PN A43652

1шт.

25

87421541

CORE-STARTER DRIVE

Return Part Number

1шт.

26

A44495

LUG

FRAME ASSY. - drive end, Includes: Ref. 27

1шт.

27

A25387

BEARING

BUSHING - 15/32 x 5/8 x 13/16"

1шт.

28

321-2748

DECAL

DECAL

1шт.
