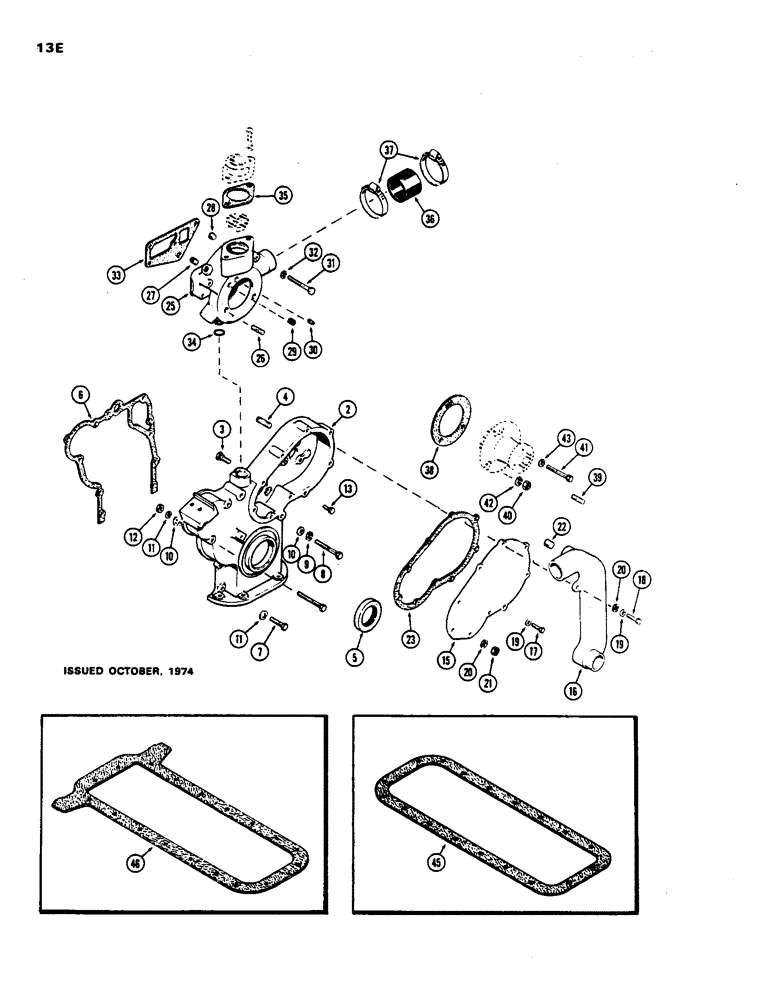

Запчасти Case 480B (013E) - TIMING GEAR COVER CONVERSION KIT, (188) DIESEL ENGINE, TO CONVERT ONE PIECE COVER TO TWO PIECE COVER

A51890

DUST VALVE

KIT - conversion, timing gear cover, Includes: Ref. 2 - 46

1шт.

2

A51981

COVER

ASSY. - timing gear (Replaces A51734), Includes: Ref. 3 - 5

1шт.

3

A51649

STUD

- timing gear cover

2шт.

4

G11204

STUD

- injection pump (3/8" N.C. x 1-7/16")

3шт.

5

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft front

1шт.

6

A51529

GASKET

-, Serial Range: cover-block

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

1шт.

8

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex.

2шт.

9

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex.

1шт.

9

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex.

3шт.

10

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

1шт.

11

92-6

LOCK WASHER,3/8"

3шт.

12

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

13

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

15

A51908

COVER

COVER - injection pump drive gear

1шт.

16

A51907

TUBE

- water passage

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

5шт.

18

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

2шт.

19

A50820

WASHER

- hardened (25/64 x 3/4 x 7/64")

2шт.

20

92-6

LOCK WASHER,3/8"

9шт.

21

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

22

178-821

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8 x 3/8" N.C. socket hd. Nylok

1шт.

23

A39925

GASKET

- cover

1шт.

25

A51888

BODY

ASSY. - water pump, Includes: Ref. 26 - 30

1шт.

26

A29433

STUD

- water pump

1шт.

27

222-843

PLUG - pipe, 3/8" hex. socket hd.

1шт.

28

221-841

PLUG

- pipe, 1/4" hex. socket hd.

1шт.

29

178-874

SCREW SET - 7/16 x 7/16 hex. socket hd.

1шт.

30

178-821

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8 x 3/8" hex. sckt. hd. Nylok

1шт.

31

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex.

2шт.

31

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

32

92-6

LOCK WASHER,3/8"

3шт.

33

A38084

GASKET,1.27mm Thk

- pump, Serial Range: body-head

1шт.

34

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - 3/4 x 1 x 1/8"

1шт.

35

G46907

GASKET

- water outlet to pump body

1шт.

36

A7249

HOSE

- pump, Serial Range: body-cover

1шт.

37

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

38

A38083

GASKET

- water, Serial Range: pump-body

1шт.

39

A29433

STUD

- pump to body (3/8" N.C. x 1-1/8")

1шт.

40

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

41

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 1" N.C. hex.

1шт.

42

92-6

LOCK WASHER,3/8"

2шт.

43

A7085

WASHER

- copper, 25/64 x 9/16 x 1/32"

1шт.

45

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order from Figure 31A)

1шт.

46

NSS

NOT SOLD SEPARAT

GASKET - oil pan (not used on this unit)

1шт.
