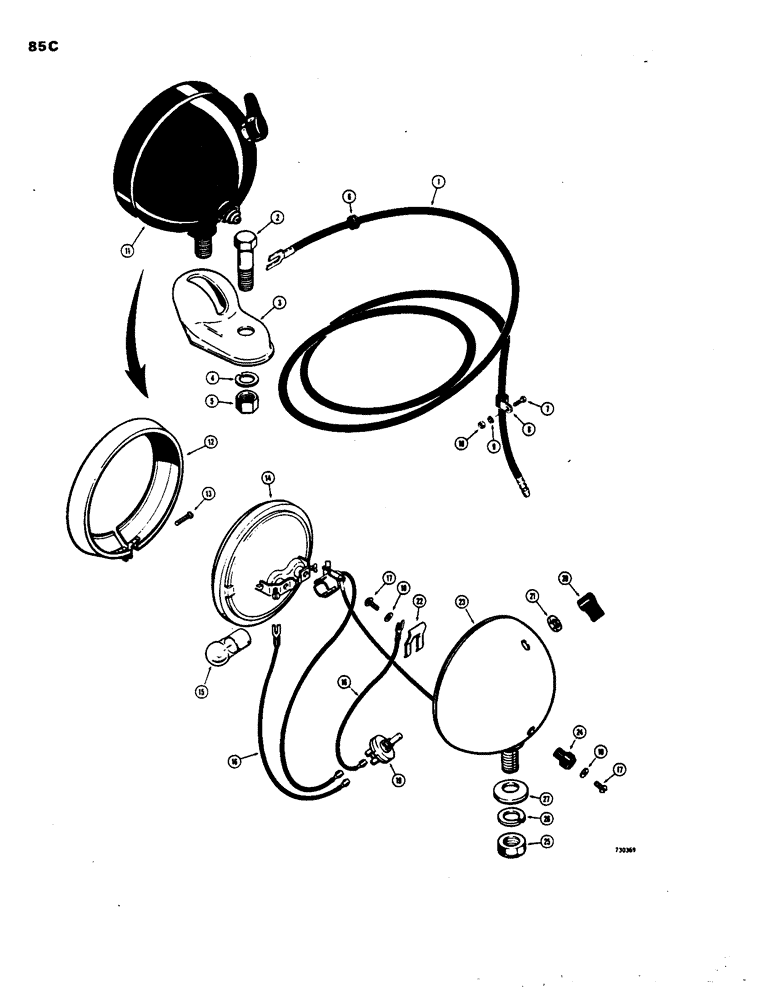

Запчасти Case 480B (085C) - FENDER MOUNTED FLOOD AND TAIL LAMP

1

A37516

WIRE - tractor harness to rear light

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

3

A34046

BRACKET

- light mounting

1шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

6

L13765

GROMMET

- light wire

1шт.

7

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

8

49838

CLAMP

- light wire

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

11

A20965

LAMP BASE

LIGHT ASSY. - rear, flood & tail, Includes: Ref. 12 - 27

1шт.

12

B50255

MOLDING

- light retaining

1шт.

13

10934

BRACKET,Rd Hd, #8 - 32 x 0.625", Stainless

SCREW - molding retainer

1шт.

14

A40855

LAMP BASE

LIGHT - sealed beam

1шт.

15

B50223

BULB

- red, 12 volt (15 C.P.)

1шт.

16

B50273

WIRE - switch

2шт.

17

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- machine, round head (#8-32 x 1/4")

2шт.

18

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER - med. sect. lock (1/4")

2шт.

19

B50275

SWITCH

- light

1шт.

20

B50310

SWITCH

HANDLE - switch

1шт.

21

B50224

SPECIAL NUT

- switch retainer

1шт.

22

10927

SPRING

- terminal

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - light

1шт.

24

B50293

TERMINAL CONNECTOR

TERMINAL - wire

1шт.

25

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

26

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

27

10923

WASHER

- light mounting

1шт.

D70115

LAMP

ASSY. - flood & tail, Includes: Ref. 28 - 32

1шт.

28

NSS

NOT SOLD SEPARAT

SHELL - lamp

1шт.

29

33686

BULB

- tail lamp

1шт.

30

D71409

BULB

SEALED BEAM - flood lamp

1шт.

31

A25213

RETAINER

- sealed beam

1шт.

32

193-543

SCREW,Hex Was Hd, #8-32 x 3/8"

- #8-32 N.C. x 3/8"

1шт.

33

195-533

WASHER,1/2", SAE

- flat, 1/2"

1шт.

34

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

35

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.
