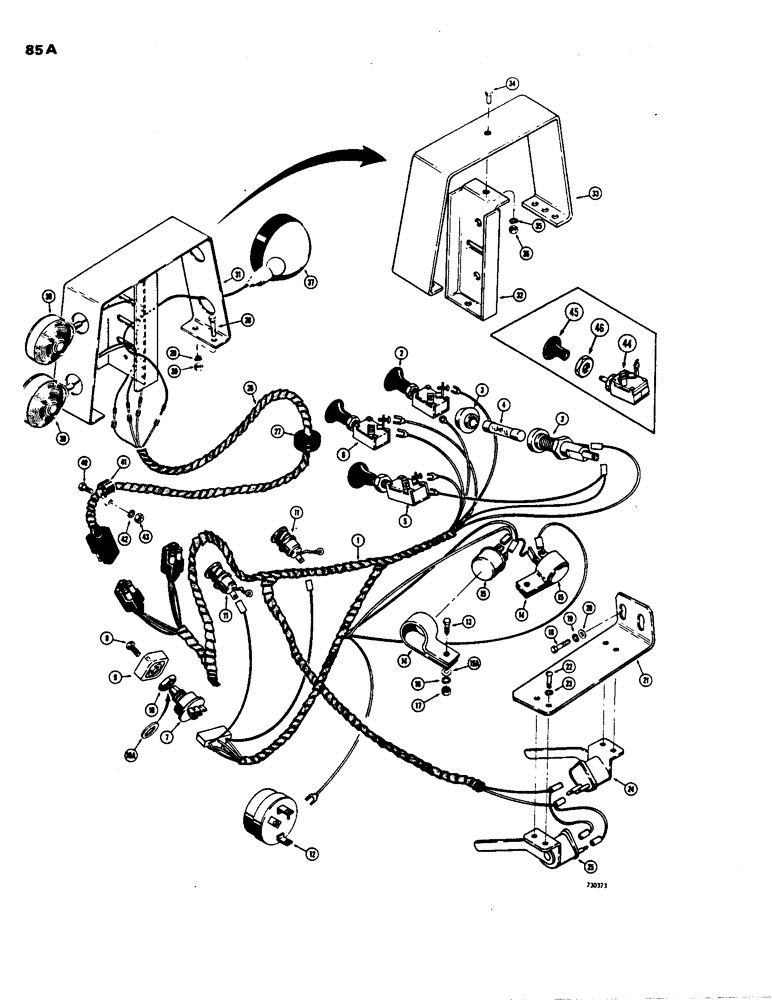

Запчасти Case 480B (085A) - FENDER MOUNTED REAR LIGHTS

1

D54243

HARNESS

- main wiring, rear lights

1шт.

2

G13142

IGNITION SWITCH

SWITCH - headlight (See Figure 74 or 76) (Order Refs. 44 & 46)

1шт.

3

A22874

HOLDER

AND FUSE - protective

1шт.

4

223-20

FUSE,20 Amp, Type SFE

- 20 amp.

1шт.

5

A39887

SWITCH

- rear flood light

1шт.

5a

D69038

KNOB

- switch, rear flood

1шт.

5b

A39888

NUT

- switch mounting, 3/8" N.C.

1шт.

6

A37936

SWITCH

- rear flasher light (Incl Ref 44, 45 & 46)

1шт.

7

D52008

SWITCH

- turn signal light

1шт.

8

A20468

SCREW,Spcl, #8 - 32 x 5/16"

- knob mounting (#8-32 N.C. x 5/16")

1шт.

9

A20465

KNOB

- turn signal switch

1шт.

10

A20467

NUT

- switch to instrument panel

1шт.

10a

195-35

LOCK WASHER

WASHER - lock, Shakeproof (3/4")

1шт.

11

D51979

LAMP

LIGHT - turn signal indicator

2шт.

12

REF

INSTRUCTION

SWITCH - engine starting (See Figure 74 or 76)

1шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

14

A34868

CLAMP

BRACKET flasher mounting

2шт.

15

A65550

FLASHER UNIT

FLASHER - turn signal, 12 volt

2шт.

15a

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

16

92-5

LOCK WASHER,5/16"

1шт.

17

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

21

D54217

BRACKET - mounting, stop light switch

1шт.

22

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- #10-32 x 7/16" rd. hd.

4шт.

23

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

24

A33977

SWITCH

- stop light, L.H.

1шт.

25

A33976

SWITCH

- stop light, R.H.

1шт.

26

D49973

HARNESS - rear lights

2шт.

27

D50667

GROMMET - fender

2шт.

28

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

31

D52410

BRACKET

- light mounting, rear (One piece welded)

2шт.

32

D58713

LARGE PLATE

BRACKET - light mounting (Two piece bolted construction)

2шт.

33

D58721

BRACKET

- light mounting (Two piece bolted construction)

2шт.

34

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Use w/D58713 & D58721 Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

35

92-6

LOCK WASHER,3/8"

2шт.

36

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

37

D49976

LIGHT

ASSEMBLY - rear flood (Parts list Figure 97A)

2шт.

38

D49734

LAMP

LIGHT ASSEMBLY - flasher & warning (Parts list Figure 97A)

2шт.

39

D49733

LAMP

LIGHT ASSEMBLY - stop and tail (Parts list Figure 97A)

2шт.

40

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

41

49838

CLAMP

- rear harness

5шт.

42

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

43

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

44

A39887

SWITCH

- rear flasher light (Replaces A37936)

1шт.

45

A137203

KNOB

- switch (Replaces A37937)

1шт.

46

A39888

NUT

- switch (3/8" N.C.)

2шт.
