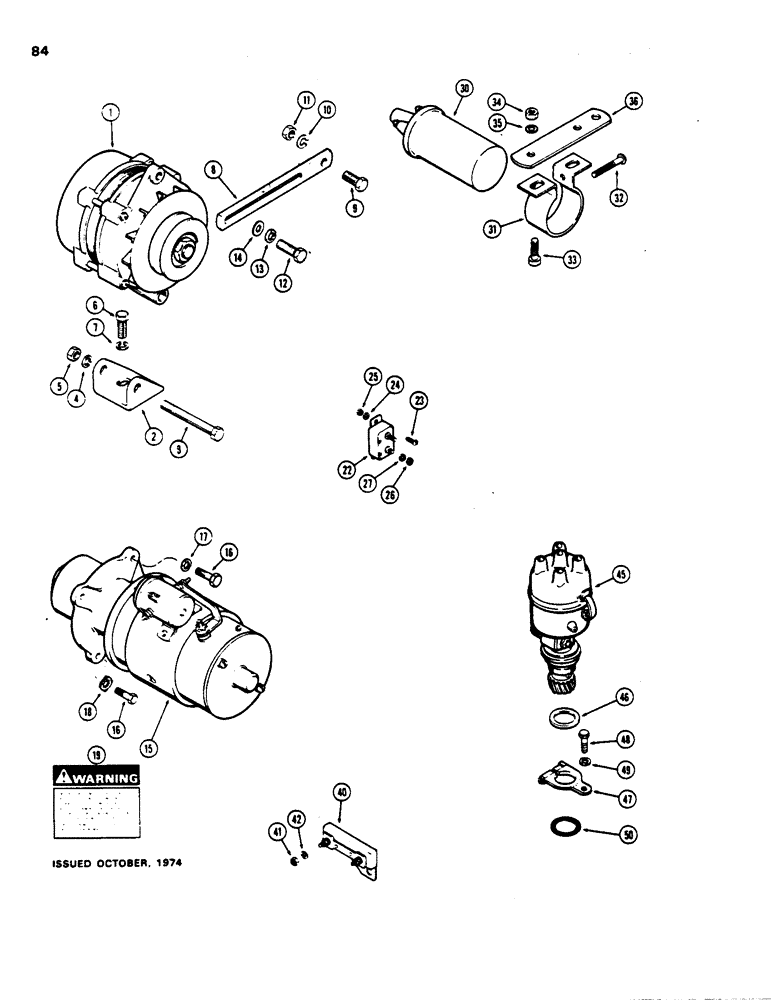

Запчасти Case 480B (084) - ELECTRICAL EQUIPMENT MOUNTING, (148B) SPARK IGNITION ENGINE

1

REF

INSTRUCTION

ALTERNATOR ASSY. (Prestolite) (Order from Figure 86)

1шт.

2

A38492

BRACKET

BRACKET - mounting

1шт.

3

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT, Hex, 3/8"-16 x 3", G5

1шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

7

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

8

A59167

STRAP

STRAP - adjusting, alternator

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

10

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

11

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex.

1шт.

12

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

14

195-103

WASHER,5/16"

WASHER - plain, 3/8 x 7/8 x 3/32"

1шт.

15

A36584

STARTING MOTOR

STARTER - (Prestolite #MDU-7104A) (Repairs Figure 94)

1шт.

15

104223A1R

REMAN-STARTER

Remanufactured STARTER 12 volt Presto Inertia

1шт.

15

104223A1C

CORE-STARTER

Return Part Number, STARTER 12 volt Presto Inertia

1шт.

16

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

3шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Top bolt) 3/8"

1шт.

18

193-72

LOCK WASHER

WASHER - lock, 3/8" int. - ext. Shakeproof

2шт.

19

321-2788

DECAL

DECAL - "Warning" jumper cable starting

1шт.

22

A22877

BREAKER,40A

BREAKER - circuit

1шт.

23

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

SCREW - mounting, #8-32 x 3/8" rd. hd.

2шт.

24

195-16

WASHER,#12

WASHER - lock, #8

2шт.

25

129-16

NUT,#8-32

NUT, #8-32

2шт.

26

129-37

NUT,#10-32

NUT, , Terminal #10-32

2шт.

27

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

30

A40778

COIL

COIL - ignition (Prestolite #200960)

1шт.

31

G46106

BRACKET

BRACKET ASSY. - coil, Includes: Ref. 32

1шт.

32

187-540

SCREW - self-tapping, #10 x 1-1/2" flat hd.

1шт.

33

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

34

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

2шт.

35

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

36

G11705

BRACKET

STRAP - mounting, coil

1шт.

40

A24504

RESISTOR

RESISTOR - ballast (Prestolite #2011020), Includes: Ref. 41 and 42

1шт.

41

129-16

NUT,#8-32

NUT, #8-32

2шт.

42

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

45

A18461

DISTRIBUTOR

SPARE PART DISTRIBUTOR ASSY. - (Repairs Figure 96)

1шт.

46

A30080

THRUST WASHER

WASHER - thrust., Serial Range: dist.-block

1шт.

47

A29989

ARM

ARM ASSY. - advance

1шт.

48

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

49

193-173

WASHER - lock, 1/4" int. - ext. Shakeproof

1шт.

50

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - dist to block (1-1/16 x 1-5/16 x 1/8")

1шт.
