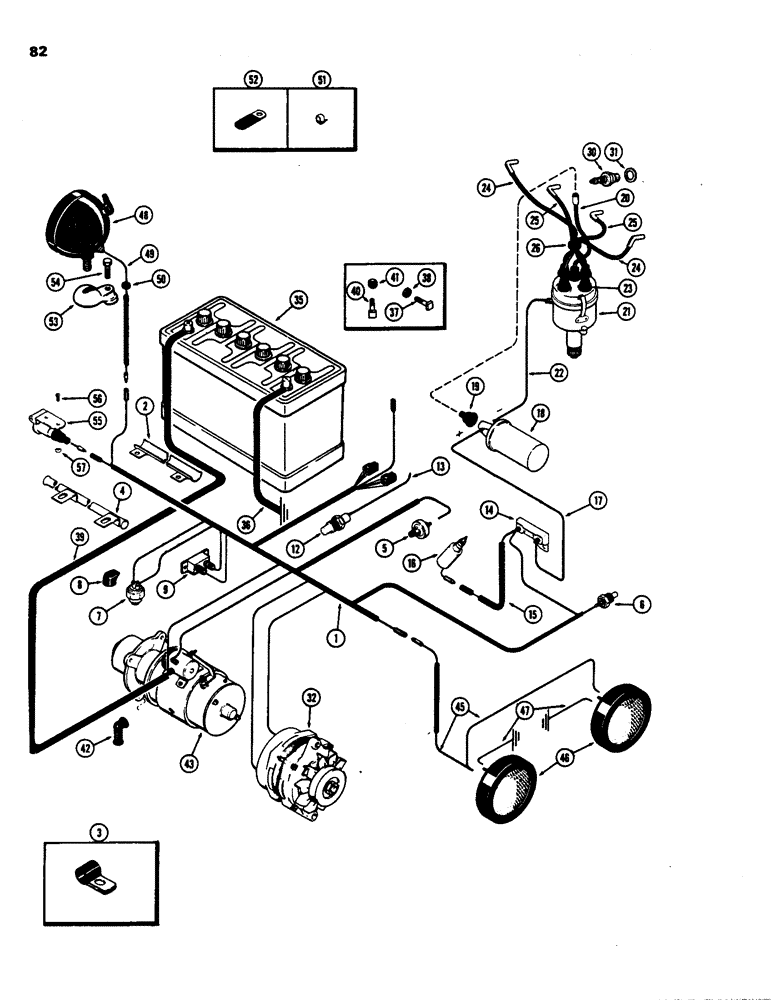

Запчасти Case 480B (082) - ELECTRICAL EQUIPMENT AND WIRING, (148B) SPARK IGNITION ENGINE

1

A38950

HARNESS

HARNESS ASSY. - main wiring

1шт.

2

A51269

SPARE PART CONDUIT - harness (under fuel tank) (Replaces A37506)

1шт.

3

49838

CLAMP

CLIP - wire, fuel tank stud

1шт.

4

A38826

CONDUIT

CONDUIT - harness (on trans. case)

1шт.

5

A13794

TRANSMITTER

SENDER - engine oil pressure

1шт.

6

A21462

SENDER UNIT

SENDER SENDER - engine temperature

1шт.

7

A20990

SWITCH

SWITCH - safety, neutral start

1шт.

8

A61028

BOOT

BOOT - safety switch

1шт.

9

A22877

BREAKER,40A

BREAKER - circuit (See Figure 84)

1шт.

14

A24504

RESISTOR

RESISTOR - ballast (See Figure 84)

1шт.

15

A38244

SPARE PART WIRE - resistor to carb. solenoid (red 33")

1шт.

16

A137014

SOLENOID VALVE

SOLENOID - fuel shut-off (part of carburetor)

1шт.

17

A38832

ELECTRICAL WIRE

WIRE WIRE - resistor to coil (white 7")

1шт.

18

A40778

COIL

COIL - ignition (See Figure 84)

1шт.

19

G46803

BOOT

NIPPLE -, Serial Range: wire-coil

1шт.

20

A62857

ELECTRICAL WIRE

WIRE WIRE - dist. to coil (hi tension)

1шт.

21

A18461

DISTRIBUTOR

SPARE PART DISTRIBUTOR ASSY. - (See Figure 84), Includes: Ref. 22

1шт.

22

A25965

HARNESS

WIRE - dist. to coil (lo-tension) (part of distributor)

1шт.

23

A29338

COVER

NIPPLE - dist. cap wire

5шт.

24

A39186

CABLE

WIRE - #1 & #4 spark plug (12")

2шт.

25

A39187

CABLE

WIRE - #2 & #3 spark plug (8-3/4")

2шт.

26

A30109

WASHER

RING - harness, distributor wires

1шт.

30

G44840

SPARK PLUG

PLUG ASSY. - spark, Includes: Ref. 31

4шт.

31

G46839

GASKET

GASKET - spark plug

1шт.

32

REF

INSTRUCTION

ALTERNATOR - (See Figure 84)

1шт.

35

A37473

BATTERY

BATTERY - 12 volt

1шт.

36

A27985

CABLE

CABLE ASSY. - ground (13"), Includes: Ref. 37 and 38

1шт.

37

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

BOLT - clamp, 5/16 x 1-3/8" N.C. sq. hd.

1шт.

38

129-516

NUT

SPARE PART NUT - shoulder, 5/16" N.C. hex.

1шт.

39

A27987

CABLE

CABLE ASSY. - battery to starter, Includes: Ref. 40 and 41

1шт.

40

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

BOLT - clamp, 5/16 x 1-3/8" N.C. sq. hd.

1шт.

41

129-516

NUT

SPARE PART NUT - shoulder, 5/16" N.C. hex.

1шт.

42

A21753

CAP

NIPPLE - solenoid terminal

1шт.

43

A36584

STARTING MOTOR

STARTER ASSY. - (See Figure 84)

1шт.

43

104223A1R

REMAN-STARTER

Remanufactured STARTER 12 volt Presto Inertia

1шт.

43

104223A1C

CORE-STARTER

Return Part Number, STARTER 12 volt Presto Inertia

1шт.

45

D39242

ELECTRICAL WIRE

WIRE WIRE ASSY. - harness to head lamp

1шт.

46

D30243

LAMP

LAMP ASSY. - head (See Figure 97A)

2шт.

47

A11768

ELECTRICAL WIRE

WIRE WIRE - ground, head lamp

1шт.

48

A20965

LAMP BASE

LAMP ASSY. - flood & tail (See Figure 97A)

1шт.

49

A37516

SPARE PART WIRE - harness to tail lamp

1шт.

50

A27338

GROMMET

GROMMET - wire through fender

1шт.

51

G46047

SPARE PART CLIP -, Serial Range: wire-fender

4шт.

52

A37179

CLIP

CLIP - wire harness

2шт.

53

A34046

BRACKET

BRACKET -, Serial Range: lamp-fender

1шт.

52

A39394

SPARE PART CLIP - wire harness

1шт.

54

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT, Hex, 3/8"-16 x 1 1/2", G5

1шт.

55

A8170

SOCKET

SOCKET - electrical, auxiliary outlet

1шт.

56

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

SCREW - #10-32 x 1/2" rd. hd.

2шт.

57

193-1000

NUT,Keps, w/LW,#10-32

NUT - #10-32 hex. (Keps)

2шт.
