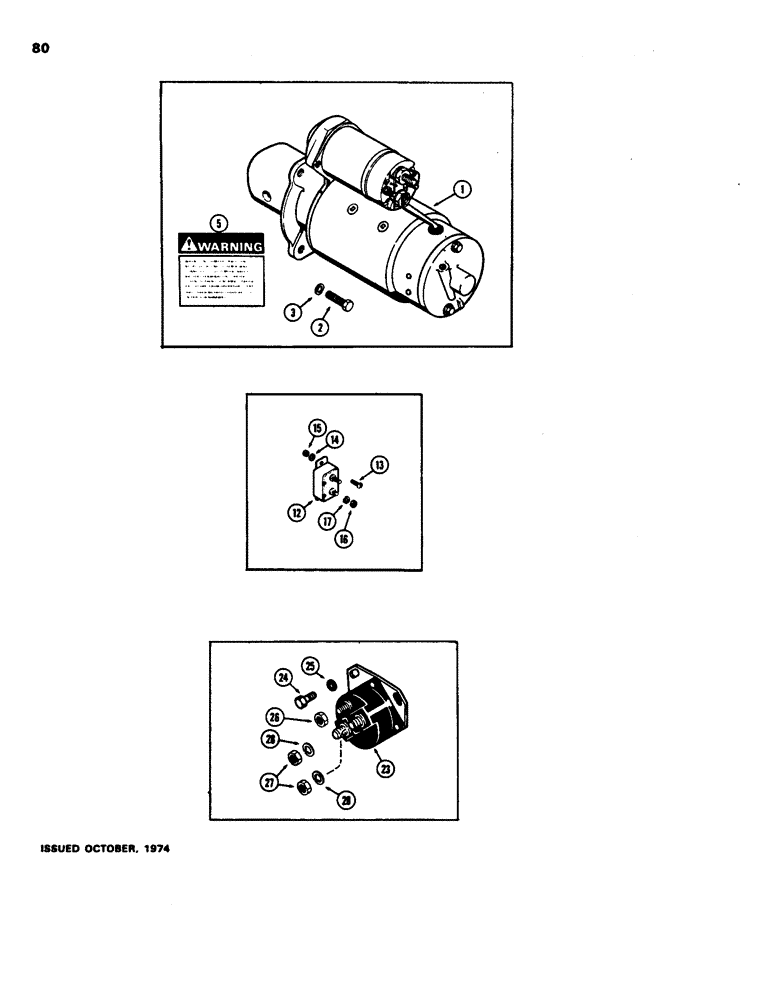

Запчасти Case 480B (080) - ELECTRICAL EQUIPMENT MOUNTING, (188) DIESEL ENGINE

1

REF

INSTRUCTION

STARTER - (See Figures 88 - 91E)

1шт.

2

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

3

193-72

LOCK WASHER

- lock, 3/8" int, - ext. Shakeproof

3шт.

5

321-2788

DECAL

- WARNING" jumper cable starting

1шт.

12

A22877

BREAKER,40A

- circuit

1шт.

13

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

- #8-32 X 3/8" N.C. rd. hd. (mounting)

2шт.

14

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

15

129-16

NUT,#8-32

2шт.

16

129-37

NUT,#10-32

Terminal #10-32

2шт.

17

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

23

A39079

SOLENOID

- manifold heater

1шт.

24

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Solenoid to block Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

25

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

2шт.

26

193-1000

NUT,Keps, w/LW,#10-32

- wire to solenoid, #10-32 Keps

1шт.

27

9635082

NUT,5/16" - 18, Gr 5

Cable to solenoid 5/16"-18, G5

2шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.
