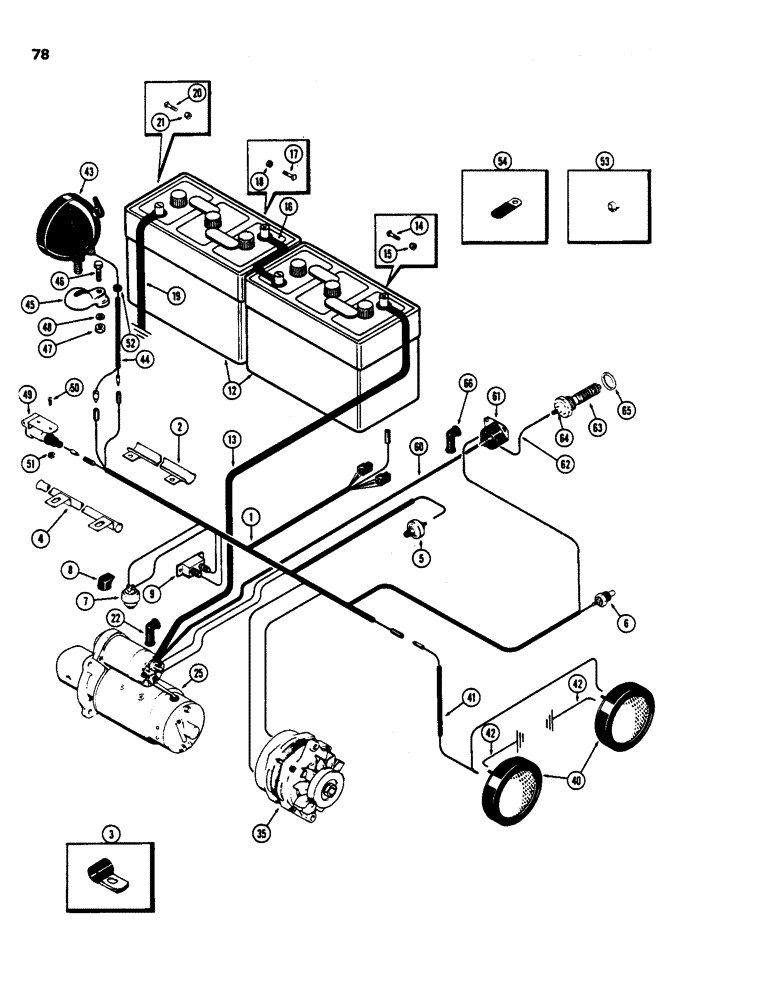

Запчасти Case 480B (078) - ELECTRICAL EQUIPMENT AND WIRING, (188) DIESEL ENGINE

1

A38950

HARNESS

ASSY. - main wiring (use w/Prestolite alternator)

1шт.

1

A135776

HARNESS ASSY. - main wiring (use w/Delco alternator)

1шт.

2

A51269

CONDUIT - harness (under fuel tank) (Replaces A37506)

1шт.

3

49838

CLAMP

CLIP - wire, fuel tank stud

1шт.

4

A38826

CONDUIT

- harness (on trans. case)

1шт.

5

A13794

TRANSMITTER

SENDER - engine oil pressure

1шт.

6

A21462

SENDER UNIT

SENDER - engine temperature

1шт.

7

A20990

SWITCH

- safety, neutral start

1шт.

8

A61028

BOOT

- safety switch

1шт.

9

A22877

BREAKER,40A

- circuit (See Figure 80)

1шт.

12

D44313

BATTERY - 6 volt

2шт.

13

A27987

CABLE

ASSY. - battery to starter, Includes: Ref. 14 and 15

1шт.

14

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- clamp, 5/16 x 1-3/8" N.C. sq. hd.

1шт.

15

129-516

NUT

- shoulder, 5/16" N.C. hex.

2шт.

16

A37515

ELECTRIC CABLE

CABLE ASSY. - jumper (Replaces A37515), Includes: Ref. 17 and 18

1шт.

17

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- clamp, 5/16 x 1-3/8" N.C. sq. hd.

2шт.

18

129-516

NUT

- shoulder, 5/16" N.C. hex.

2шт.

19

A27985

CABLE

ASSY. - ground (13"), Includes: Ref. 20 and 21

1шт.

20

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- clamp, 5/16 x 1-3/8" N.C. sq. hd.

1шт.

21

129-516

NUT

- shoulder, 5/16" N.C. hex.

1шт.

22

A21753

CAP

NIPPLE - terminal

1шт.

25

A36582

STARTER ASSY. - (See Figure 80)

1шт.

35

REF

INSTRUCTION

ALTERNATOR - (See Figure 81A)

1шт.

40

D30243

LAMP

ASSY. - head (See Figure 97A)

2шт.

41

D39242

ELECTRICAL WIRE

WIRE ASSY. - harness to head lamp

1шт.

42

A11768

ELECTRICAL WIRE

WIRE - ground, head lamp

2шт.

43

A20965

LAMP BASE

LAMP ASSY. - flood & tail (See Figure 85C)

1шт.

44

A37516

WIRE ASSY. - harness to tail lamp

1шт.

45

A34046

BRACKET

-, Serial Range: lamp-fender

1шт.

46

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

47

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

49

A8170

SOCKET

- electrical, auxiliary outlet

1шт.

48

92-6

LOCK WASHER,3/8"

1шт.

50

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- #10-32 x 1/2" rd. hd.

2шт.

51

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex. (Keps)

2шт.

52

A27338

GROMMET

- wire through fender

1шт.

53

G46047

CLIP -, Serial Range: wire-fender

4шт.

54

A37179

CLIP

- wire harnes

3шт.

60

A36896

CABLE PULLING GRIP

CABLE - starter to heater solenoid, manifold

1шт.

61

A39079

SOLENOID

- heater, manifold (See Figure 80)

1шт.

62

A21483

CABLE

- solenoid to heater, manifold

1шт.

63

A37775

HEATER

ASSY. - manifold (See Figure 15A)

1шт.

64

129-503

NUT,1/4"-20, Brass

Manifold heater 1/4"-20, Brass

1шт.

65

A20916

MANIFOLD GASKET

GASKET -, Serial Range: heater-manifold

1шт.

66

A21753

CAP

NIPPLE - terminal, manifold heater

1шт.
