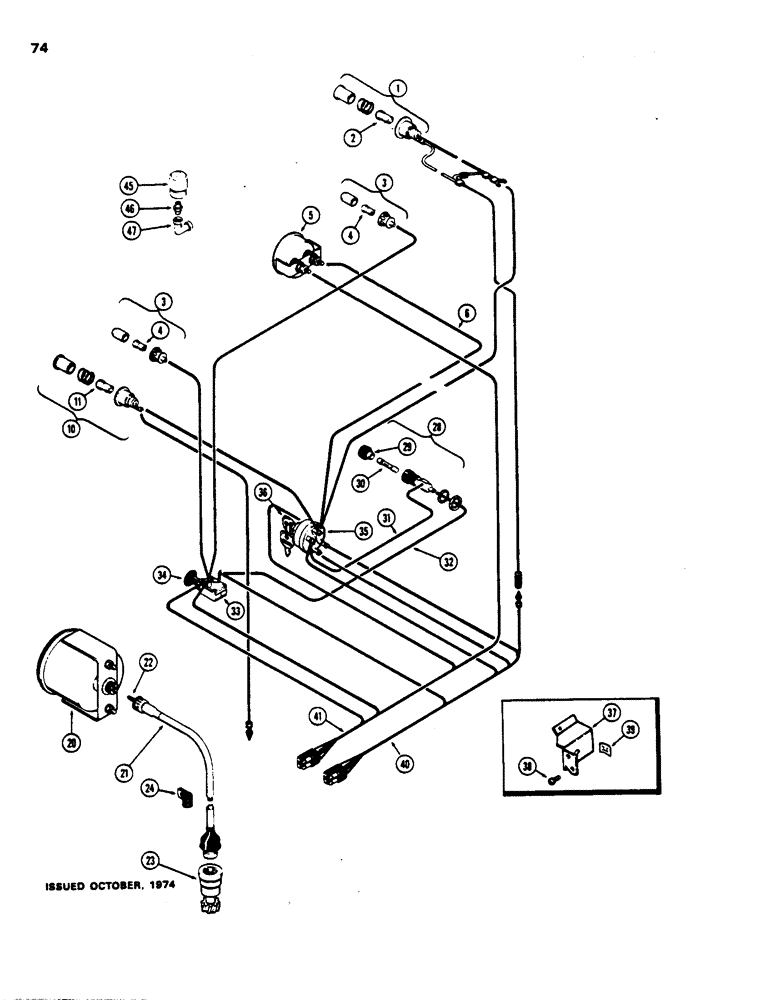

Запчасти Case 480B (074) - INSTRUMENTS AND WIRING, (188) DIESEL ENGINE

1

A38816

LAMP

ASSY. - warning, alternator, Includes: Ref. 2

1шт.

2

F21950

BULB - red (#431R)

1шт.

3

A24087

LAMP BASE

LAMP ASSY. - illuminating, panel, Includes: Ref. 4

2шт.

4

A22349

BULB

- lamp (#363)

1шт.

5

A39804

GAUGE

- engine temperature

1шт.

6

A24078

ELECTRICAL WIRE

WIRE - temp. gauge to st. switch (green 15")

1шт.

10

A24084

LAMP

ASSY. - warning, oil pressure, Includes: Ref. 11

1шт.

11

A24354

BULB

- red (#57R)

1шт.

20

A39806

TACHOMETER

- (includes hour meter)

1шт.

21

A39819

CABLE

ASSY. - tach. drive (52" cable), Includes: Ref. 22

1шт.

22

A24523

KIT

CABLE KIT - replacement (cut to req. length)

1шт.

345-39

SEALANT

ANT - tach. drive

1шт.

23

A38942

DRIVE ASSY.

- tachometer cable (in block)

1шт.

24

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- tach. cable (coated)

1шт.

28

A22874

HOLDER

ASSY. - fuse, Includes: Ref. 29

1шт.

29

A10958

CAP

- fuse holder

1шт.

30

223-20

FUSE,20 Amp, Type SFE

- 20 amp

1шт.

31

A22876

ELECTRICAL WIRE

WIRE - fuse to start switch (red 8-1/2")

1шт.

32

A22875

ELECTRICAL WIRE

WIRE - fuse to light switch (red 4")

1шт.

33

G13142

IGNITION SWITCH

SWITCH ASSY. - light, Includes: Ref. 34

1шт.

34

A137204

KNOB

- light switch (Replaces G13141)

1шт.

35

A24510

SWITCH

ASSY - starting, w/keys, (Diesel) Includes: Ref 36

1шт.

36

A24509

KEY

- ignition switch (Set of 2)

1шт.

37

A38631

BRACKET - starting switch mounting

1шт.

38

187-1016

SCREW,Cross Truss Hd, #8 x 5/8"

- #8 x 1/2" truss hd. self-tapping

3шт.

39

131-130

NUT

- #8 speed type

3шт.

40

A24076

PLUG

HARNESS ASSY. - inst. wiring (w/red plug)

1шт.

41

A21613

HARNESS

ASSY. - inst. wiring (w/black plug)

1шт.

45

A59568

INDICATOR

- air cleaner

1шт.

46

217-194

FITTING,1/8" - 27 Male NPTF x 1/8" - 27 Male NPTF

NIPPLE - brass, 1/8 x 1/8"

1шт.

47

222-5113

FITTING,90 Degree, 7/16"-24 x 1/8" NPTF

ELBOW - 90 degrees, 1/4" tube x 7/16"-24

1шт.
