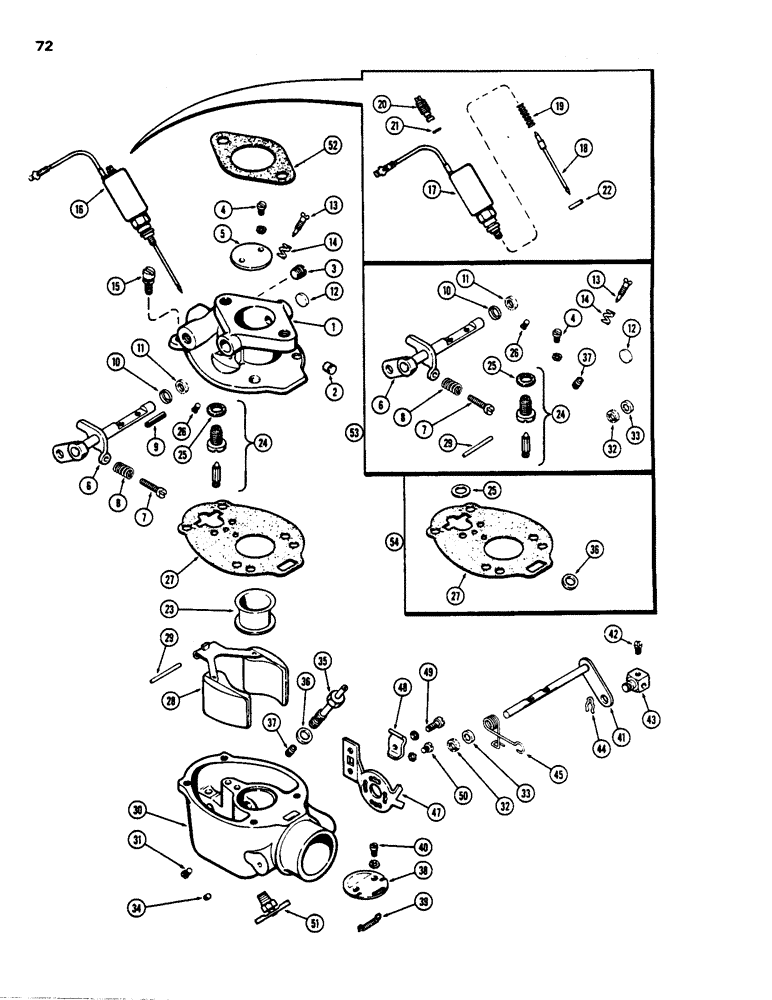

Запчасти Case 480B (072) - CARBURETOR

A38242

CARBURETOR

ASSY. - (Marvel Schebler #TSX-939SL), Includes: Ref. 1 - 51

1шт.

1

A41582

BODY ASSY. - throttle, Includes: Ref. 1 - 12

1шт.

2

B51874

PLUG - drilling

1шт.

3

221-1041

PLUG

- fuel inlet (1/8" P.T.)

1шт.

4

B51685

SCREW

- throttle plate

2шт.

Part of repair kit P/N A43642 (Replaces A41589)

1шт.

5

B51669

PLATE - throttle

1шт.

6

B51662

SHAFT

ASSY. - throttle, Includes: Ref. 7 and 8

1шт.

Part of repair kit P/N A43642 (Replaces A41589)

1шт.

7

B51680

SCREW - stop

1шт.

Part of repair kit P/N A43642 (Replaces A41589)

1шт.

8

B51742

SPRING

- stop screw

1шт.

Part of repair kit P/N A43642 (Replaces A41589)

1шт.

9

B51862

PIN - throttle stop

1шт.

10

B51853

RETAINER

- shaft packing

1шт.

Part of repair kit P/N A43642 (Replaces A41589)

1шт.

11

B51805

PACKING

- throttle shaft

1шт.

Part of repair kit P/N A43642 (Replaces A41589)

1шт.

12

B51852

CUP

PLUG - cup, shaft hole

1шт.

Part of repair kit P/N A43642 (Replaces A41589)

1шт.

13

B51788

NEEDLE

- idle adjusting

1шт.

Part of repair kit P/N A43642 (Replaces A41589)

1шт.

14

B51744

SPRING

- idle needle

1шт.

Part of repair kit P/N A43642 (Replaces A41589)

1шт.

15

B51683

SCREW,#12 - 24 x 5/8"

- throttle, Serial Range: body-bowl

4шт.

16

A137014

SOLENOID VALVE

SOLENOID ASSY. - fuel shut-off (Replaces A41472), Includes: Ref. 17 - 22

1шт.

17

NSS

NOT SOLD SEPARAT

CASE - solenoid

1шт.

18

A41574

NEEDLE - adjusting

1шт.

19

A40287

SPRING - needle

1шт.

20

A41573

SCREW - adjusting

1шт.

21

A40286

O-RING,0.15" ID x 9" OD x 0.073"

"O" RING - needle

1шт.

22

A41575

WASHER -, Serial Range: solenoid-carburetor

1шт.

23

A41567

VENTURI

- (25/32" dia.)

1шт.

24

A41581

VALVE

& SEAT ASSY. - float, Includes: Ref. 25

1шт.

Part of repair kit P/N A43642 (Replaces A41589)

1шт.

25

B51703

GASKET

- valve seat (See ref. 54)

1шт.

Part of repair kit P/N A43642 (Replaces A41589)

1шт.

26

B51833

JET - idling

1шт.

Part of repair kit P/N A43642 (Replaces A41589)

1шт.

27

B51708

GASKET

- throttle body to bowl (See ref. 54)

1шт.

Part of repair kit P/N A43642 (Replaces A41589)

1шт.

28

B51772

FLOAT

ASSY. - fuel

1шт.

29

B51779

SHAFT

- float

1шт.

Part of repair kit P/N A43642 (Replaces A41589)

1шт.

30

A41587

BOWL ASSY. - fuel, Includes: Ref. 31 - 34

1шт.

31

B51700

SCREW

PLUG - nozzle hole

1шт.

32

B51803

PACKING

- choke shaft

1шт.

Part of repair kit P/N A43642 (Replaces A41589)

1шт.

33

B51854

RETAINER

- packing

1шт.

Part of repair kit P/N A43642 (Replaces A41589)

1шт.

34

A41026

PLUG - choke shaft hole

1шт.

35

A41585

NOZZLE - main

1шт.

36

B51720

GASKET

- main nozzle (See ref. 54)

1шт.

Part of repair kit P/N A43642 (Replaces A41589)

1шт.

37

A41584

- power

1шт.

Part of repair kit P/N A43642 (Replaces A41589)

1шт.

38

B51763

VALVE

FLY ASSY. - choke, Includes: Ref. 39

1шт.

39

B51735

SPRING

- choke fly flapper

1шт.

40

B51685

SCREW

- choke fly

2шт.

Part of repair kit P/N A43642 (Replaces A41589)

1шт.

41

B51757

SHAFT

ASSY. - choke, Includes: Ref. 42 - 44

1шт.

42

B51698

SCREW,0.164" - 32 x 5/16"

- swivel, control rod

1шт.

43

B51764

PIVOT

SWIVEL - choke control

1шт.

44

B51877

SPLIT PIN

PIN - cotter

1шт.

45

B51741

SPRING - return, choke shaft

1шт.

F12777

BRACKET ASSY. - choke shaft control, Includes: Ref. 47 - 49

1шт.

47

B51767

BRACKET

1шт.

48

B51765

CLIP

- choke control rod

1шт.

49

B59373

SCREW - clip

1шт.

50

B51686

SCREW - bracket

1шт.

51

B51879

FITTING

COCK - drain

1шт.

52

A29956

GASKET

-, Serial Range: carburetor-manifold

1шт.

53

A43642

KIT

- repair, Includes: Refs. 4, 6, 7, 10 - 13, 24 - 27, 29, 32, 33, 36, 37, 40 and 54 (Replaces A41589)

1шт.

54

A43594

GASKET KIT

KIT - gasket, Includes: Ref. 25, 27 & 36 (Replaces B51726)

1шт.

Part of repair kit P/N A43642 (Replaces A41589)

1шт.
