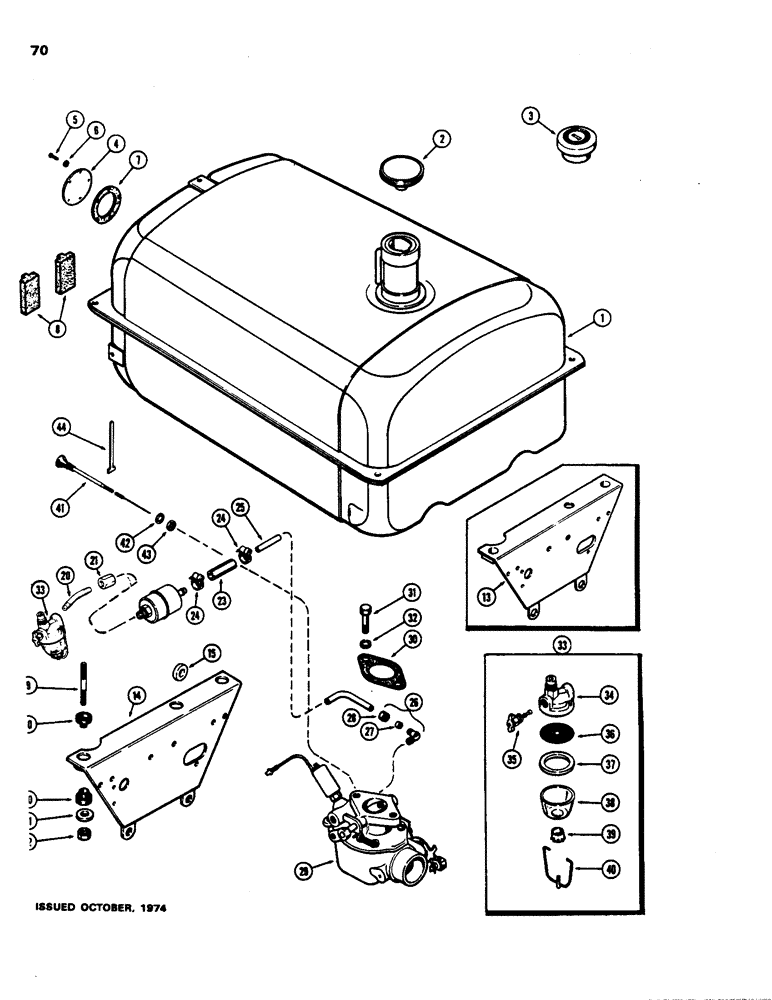

Запчасти Case 480B (070) - FUEL TANK AND LINES, (148B) SPARK IGNITION ENGINE

1

A51554

TANK

- fuel (Replaces A39818)

1шт.

2

A51390

CAP

- fuel tank (See ref. 3)

1шт.

3

A32120

CAP

- locking type, fuel tank (includes keys)

1шт.

4

G16143

COVER - opening, sending unit

1шт.

5

174-95

SCREW,Sl Rd Hd, #10 - 32 x 3/8"

- #10-32 x 3/8" rd. hd.

5шт.

6

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

7

A11822

GASKET

- cover

1шт.

8

A37315

PAD

- rear, tank support

2шт.

9

A37310

STUD

- tank mounting (3/8" N.C. x 3-1/4")

4шт.

10

A37311

BUSHING

- rubber, mounting stud

8шт.

11

F62051

WASHER

- stud (13/32 x 1-1/2 x 1/8")

4шт.

12

131-352

LOCK NUT,3/8"-16, GA

NUT - lock, 3/8" N.C. hex.

4шт.

13

A39378

SUPPORT

- fuel tank (Used prior to trac. ser. no. 8731267)

1шт.

14

A51792

SUPPORT

- fuel tank (1st used trac. ser. no. 8731267)

1шт.

15

A51801

BUSHING

SPACER - support (1st used trac. ser. no. 8731267)

2шт.

20

A51542

NIPPLE, LUBE

NIPPLE -, Serial Range: strainer-filter

1шт.

21

221-1335

COUPLING,Pipe, 1/8" NPT

filter Pipe, 1/8" NPT

1шт.

22

D53499

FILTER

- fuel

1шт.

23

A39811

HOSE - filter to fuel line (5/16" I.D. x 2")

1шт.

24

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 x 1-1/16"

2шт.

25

A51541

TUBE

LINE - fuel, Serial Range: filter-carburetor

1шт.

26

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

- fuel line to carburetor, 5/16" O.D. x 1/8" P.T., Includes: Ref. 27 and 28

1шт.

27

222-653

SLEEVE,5/16" Tube, Comp

- 5/16" tube

1шт.

28

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - 5/16" tube

1шт.

29

A38242

CARBURETOR

ASSY. - w/solenoid (Repairs Figure 72)

1шт.

30

A29956

GASKET

-, Serial Range: carburetor-manifold

1шт.

31

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

32

92-5

LOCK WASHER,5/16"

2шт.

33

A30049

STRAINER ELEMENT

STRAINER ASSY. - fuel, Includes: Ref. 34 - 40

1шт.

34

A11214

HEAD

- strainer

1шт.

35

A11205

VALVE

- shut-off

1шт.

36

A11211

FILTER SCREEN

SCREEN - fuel

1шт.

37

A11208

GASKET

- bowl

1шт.

38

A11209

BOWL

- fuel (glass)

1шт.

39

A11210

ADJUSTER

NUT - retaining

1шт.

40

A11212

BAIL

ASSY. - bowl

1шт.

41

A38458

CONTROL

ASSY. - choke

1шт.

42

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

43

86585245

SPECIAL NUT,JAM, 5/8" - 18

- jam, 3/8" N.F. hex.

1шт.

44

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - choke control

1шт.
