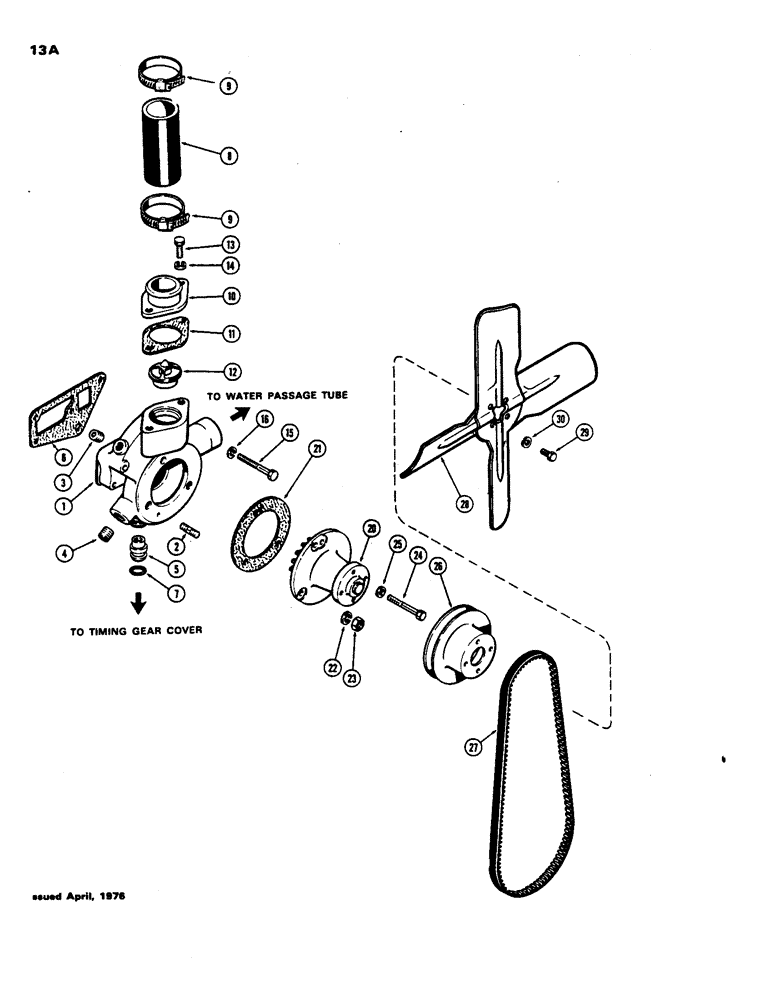

Запчасти Case 480B (013A) - WATER PUMP AND FAN, (188) DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 2728315

1

A144054

BODY

ASSY. - water pump (Replaces A39912 & A51735), Includes: Ref. 2 - 5

1шт.

2

A29433

STUD

- pump mounting (3/8" N.C. x 1")

2шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, 3/8" hex. socket

1шт.

4

221-1844

PLUG,Hex Soc, 1/2"-14

- 1/2" P.T. hex. sckt. hd

1шт.

5

A142823

FITTING

- water pump body inlet

1шт.

6

A38084

GASKET,1.27mm Thk

-, Serial Range: body-head

1шт.

7

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O"RING - pump body (3/4 x 2 x 1/8")

1шт.

8

G46239

RADIATOR HOSE,2.00" ID x 4.88", SAE 20R2

Upper 2.00" ID x 4.88", SAE 20R2

1шт.

9

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

10

G2144

FITTING

OUTLET - thermostat housing & water

1шт.

11

G46907

GASKET

- water outlet to pump body

1шт.

12

A57641

THERMOSTAT

- 180 degrees

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex

2шт.

15

13-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

- 3/8 x 1-7/8" N.C. hex

1шт.

16

92-6

LOCK WASHER,3/8"

3шт.

20

A39074

PUMP

ASSY. - water, Includes: Ref. 21

1шт.

21

A38083

GASKET

-, Serial Range: pump-body

1шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

24

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex

1шт.

25

A7085

WASHER

- copper (25/64 x 9/16 x 1/32")

1шт.

26

G11339

PULLEY

- fan

1шт.

27

A38824

BELT

Drive, Used with Prestolite Alternator

1шт.

27

A139089

BELT

Drive, Used with Delco Alternator, First Used Tractor Serial No. 8785551

1шт.

27

A135826

BELT

Drive, Used with Delco Alternator, Used Prior to Tractor Serial No. 8785551

1шт.

28

G45243

FAN

- radiator

1шт.

29

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- 5/16 x 1/2" N.C. hex

4шт.

30

92-5

LOCK WASHER,5/16"

4шт.
