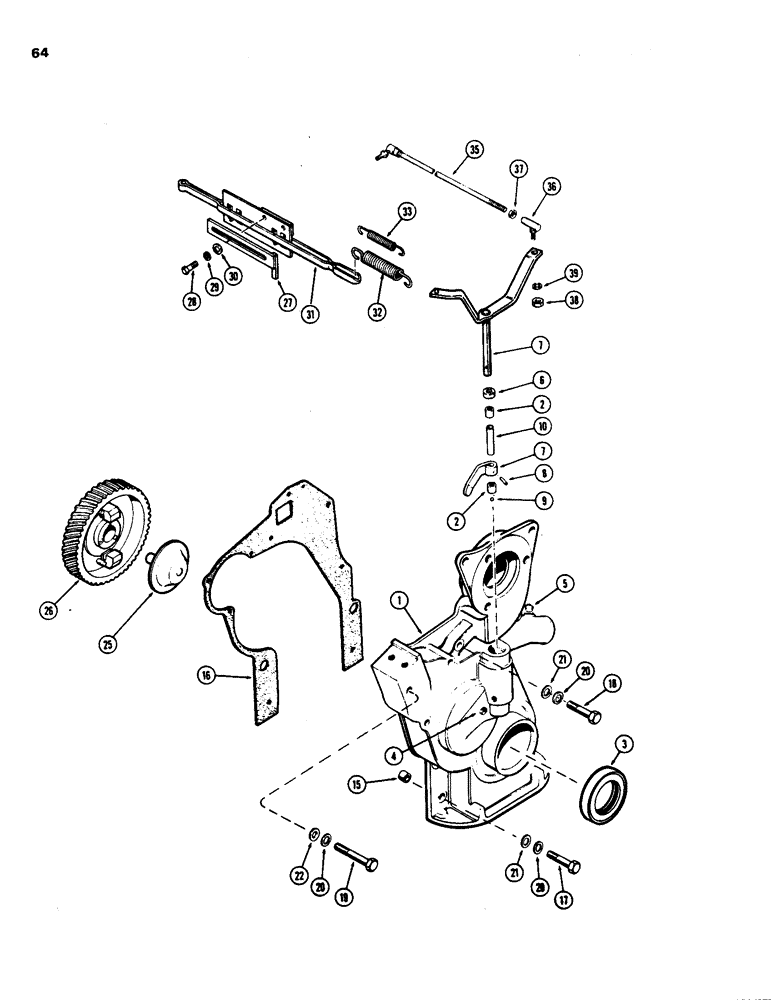

Запчасти Case 480B (064) - TIMING GEAR COVER AND GOVERNOR, (148B) SPARK IGNITION ENGINE

1

A39102

COVER

ASSY. - timing gear, Includes: Ref. 2 - 5

1шт.

2

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING - needle

2шт.

3

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft (2 x 3 x 1/2") (Replaces A36609)

1шт.

4

A30016

FITTING

PLUG - slotted, 1/8" P.T.

1шт.

5

221-1843

PLUG

- 3/8" P.T. socket hd.

1шт.

6

A30011

SEAL

- dust, governor lever shaft

1шт.

7

A51754

LEVER

ASSY. - governor control (Replaces A39095)

1шт.

8

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

9

211-5

BALL,3/16" Dia

- thrust, lever assy. - (.) 3/16" Dia

1шт.

10

A30012

SPACER

- thrust, lever assy

1шт.

15

A29442

RING

- dowel, Serial Range: cover-block

2шт.

16

A38226

GASKET

-, Serial Range: cover-block

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

17

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

2шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

18

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

19

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex.

3шт.

20

92-6

LOCK WASHER,3/8"

10шт.

21

195-25

WASHER,3/8"

- plain, 13/32 x 13/16 x 1/16"

5шт.

22

G49400

WASHER

- plain, 13/32 x 1-5/32 x 1/16"

1шт.

25

A29957

SHAFT

ASSY. - governor

1шт.

26

G37066

GEAR

ASSY. - camshaft (incl. governor weights)

1шт.

27

G45792

STOP

GUIDE - control, governor

1шт.

28

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

30

195-521

WASHER,5/16", SAE

- plain, 11/32 x 11/16 x 1/16"

2шт.

31

G45793

ROD

- governor control

1шт.

32

G48511

SPRING

- outer, governor (black)

1шт.

33

G48514

SPRING

- inner, governor (red)

1шт.

35

A38301

ROD

ASSY. - governor to carburetor, Includes: Ref. 36 and 37

1шт.

36

A10329

BALL JOINT,1/4" - 28 x 1"

- front

1шт.

37

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

1шт.

38

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

2шт.

39

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
