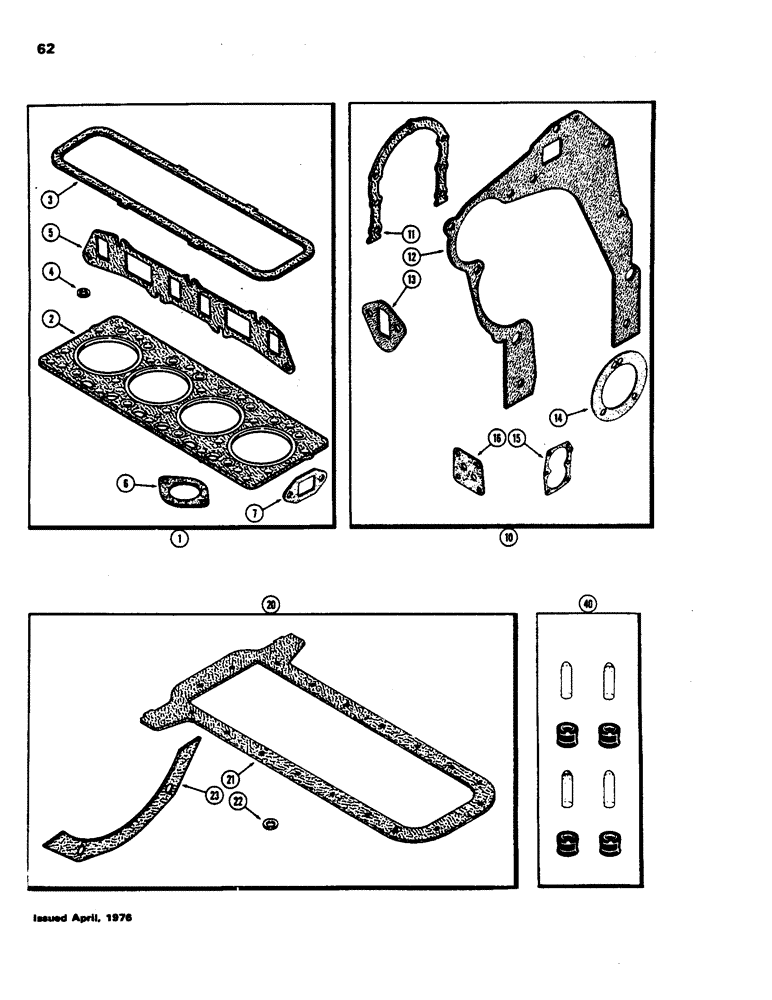

Запчасти Case 480B (062) - ENGINE GASKET KITS, (148B) SPARK IGNITION ENGINE

1

G11963

GASKET

KIT - valve grind (Replaces G11917), Includes: Ref. 2 - 7

1шт.

For complete engine overhaul order ref 1, 10 and 20

1шт.

2

G10672

CYLINDER HEAD GASKET

-, Serial Range: head-block

1шт.

3

A43021

GASKET

- valve cover (Replaces A30009)

1шт.

4

G46851

SEAL

- valve stem

4шт.

5

A30030

GASKET

- manifold

1шт.

6

A29956

GASKET

- carburetor

1шт.

7

A30003

GASKET

- water outlet elbow

1шт.

10

A41465

GASKET

KIT - cylinder block, Includes: Ref. 11 - 16

1шт.

For complete engine overhaul order ref 1, 10 and 20

1шт.

11

A39188

GASKET

- rear oil seal retainer

1шт.

12

A38226

GASKET

- timing gear cover

1шт.

13

A65561

GASKET

- fuel pump opening (Replaces G46902)

1шт.

14

A38083

GASKET

- water pump

1шт.

15

G46852

GASKET

- oil pump cover

1шт.

16

G46854

GASKET

- oil filter bracket (Not used this unit)

1шт.

20

A43065

KIT

GASKET KIT - oil pan (Replaces A41447), Includes: Ref. 21 - 23

1шт.

For complete engine overhaul order ref 1, 10 and 20

1шт.

21

NSS

NOT SOLD SEPARAT

GASKET - pan to block (Order ref. 20)

1шт.

22

A58608

GASKET

- drain plug (nylon)

1шт.

23

G46913

GASKET

- pan to torque tube

1шт.

40

M20611

SEAL KIT

- seal, valve stem (Set of 4 seals & Installation Sleeve)

1шт.
