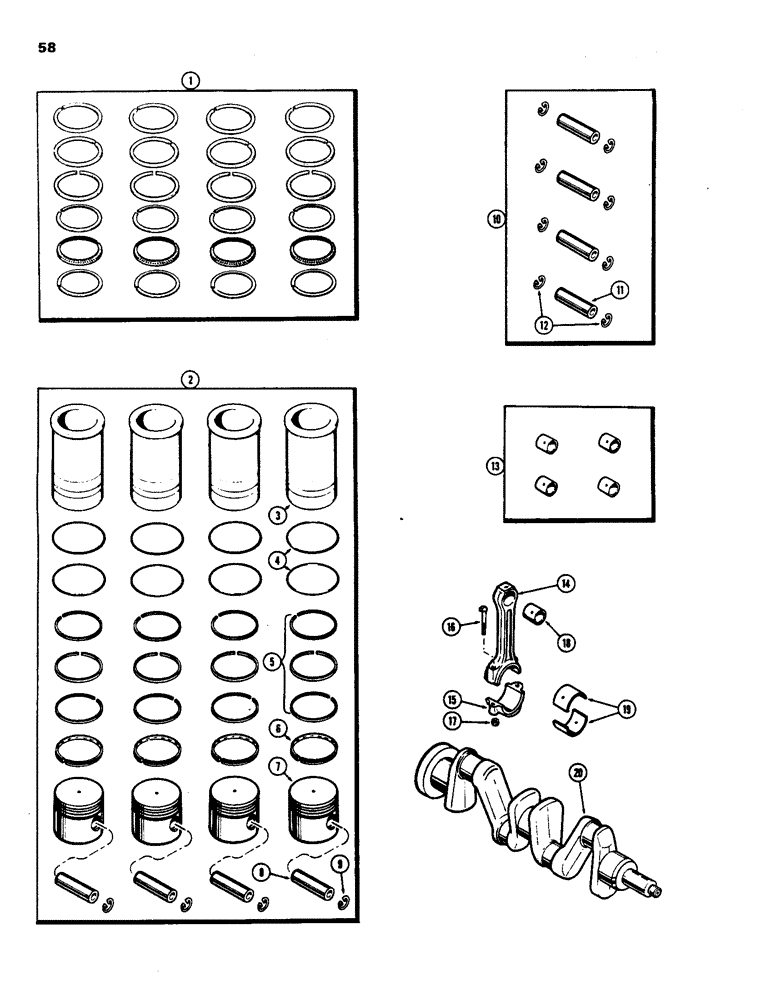

Запчасти Case 480B (058) - PISTON ASSEMBLY AND CONNECTION RODS, (148B) SPARK IGNITION ENGINE

1

G11116

PISTON RING SET

RING SET - piston (Re-ring 4 pistons)

1шт.

2

G11007

SLEEVE ASSY

PISTON & SLEEVE KIT - matched set of 4, Includes: Ref. 3 - 9

1шт.

3

G1061

SLEEVE

- cylinder

4шт.

4

G46909

O-RING,3.112" ID x 3.344" OD

"O" RING - sleeve packing (3-1/8 x 3-1/4 x 1/8")

8шт.

5

G1062

OIL SEAL

RING - compression (See ref. 1)

12шт.

6

G1063

OIL SEAL

RING - oil control (See ref. 1)

4шт.

7

G1060

PISTON

- (3-3/8" dia.)

4шт.

8

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 10)

4шт.

9

A30023

RETAINER

RING - pin retaining (See ref. 10)

8шт.

10

G11925

PISTON PIN

PIN KIT - piston (Set of 4 w/ret. rings), Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

PIN - piston (Order G11925)

4шт.

12

A30023

RETAINER

RING - retaining

4шт.

13

G11955

KIT

BUSHING SET - conn. rod (Set of 4)

1шт.

14

G11592

EXCHANGE CONROD

ROD ASSY. - connecting, Includes: Ref. 15 - 18

4шт.

15

NSS

NOT SOLD SEPARAT

CAP - conn. rod (Order G11592)

1шт.

16

G11701

BOLT

- cap

2шт.

17

A51904

NUT

NUT - cap bolt

2шт.

18

NSS

NOT SOLD SEPARAT

BUSHING - rod pin (Order ref. 13)

1шт.

19

A36500

SEAL

LINER SET - conn. rod brg. (Std set of 2)

4шт.

19

A36501

BEARING LINER

LINER SET - conn. rod brg. (.002" undersize set of 2)

4шт.

19

A36502

LINING

LINER SET - conn. rod brg. (.010" undersize set of 2)

4шт.

19

A36503

BEARING LINER

LINER SET - conn. rod brg. (.020" undersize set of 2)

4шт.

19

A36504

KIT

LINER SET - conn. rod brg. (.030" undersize set of 2)

4шт.

20

A37210

CRANKSHAFT

- engine

1шт.
