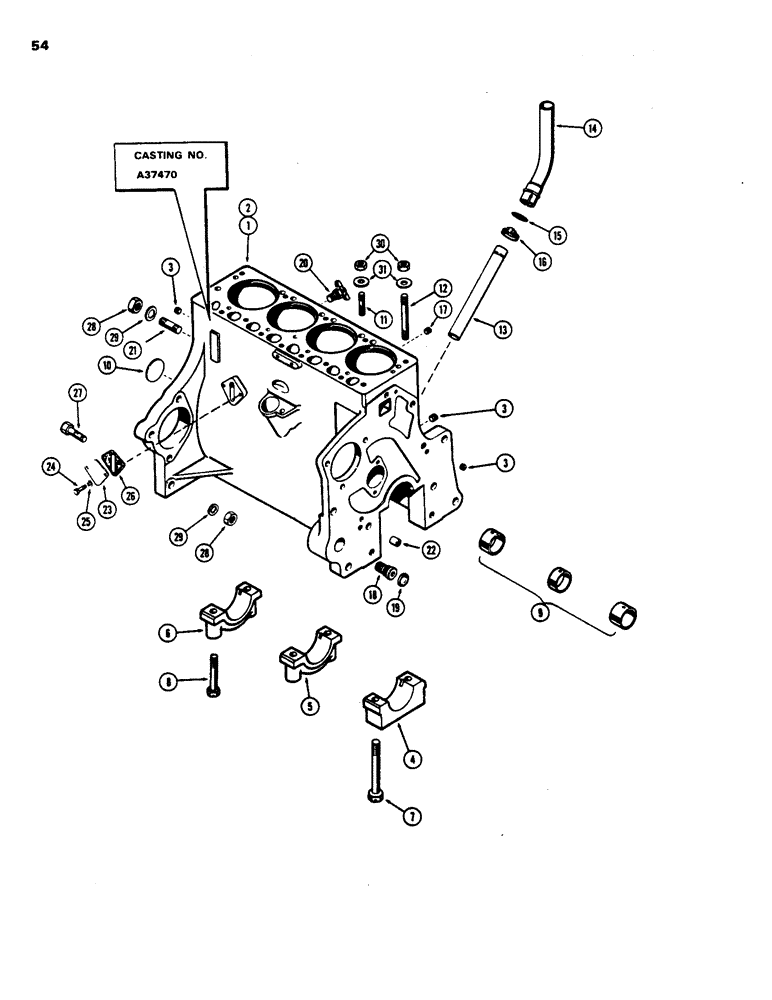

Запчасти Case 480B (054) - CYLINDER BLOCK ASSEMBLY, (148B) SPARK IGNITION ENGINE
№
Артикул
Название
Примечание
Количество
1
A41598
SHORT BLOCK ASSY. - (incl. stripped block, crankshaft, rods, pistons & sleeves, camshaft and oil pump), Includes: Ref. 2 - 22
1шт.
2
A37828
SKELETON ENGINE
BLOCK ASSY. - stripped (Casting No. A37470), Includes: Ref. 3 - 19
1шт.
3
217-433
PLUG,Hex Soc, 1/4" - 18 NPTF
Oil gallery Hex Soc, 1/4"-18 NPTF
3шт.
4
G2035
CAP
- bearing, crankshaft front
1шт.
5
G2036
CAP
- bearing, crankshaft center
1шт.
6
G2037
CAP
- bearing, crankshaft rear
1шт.
7
G49059
BOLT
- oil pump & brg. cap (1/2 x 4-3/4" N.C.)
2шт.
8
G49037
BOLT
- bearing cap (1/2 x 3" N.C. hex.)
4шт.
9
A41225
KIT
BUSHING SET - camshaft
1шт.
10
A39241
PLUG,Exp, 2.12" dia
- rear (2-1/8" expansion type) (Replaces A30033)
1шт.
11
A30057
STUD
- head to block (1/2" N.C. x 2")
9шт.
12
A29436
STUD
- head to block (1/2" N.C. x 5-7/8")
5шт.
13
A37149
TUBE
- oil filler & dipstick
1шт.
14
A37407
TUBE
EXTENSION - filler tube
1шт.
15
A27342
O-RING,1.109" ID x 1.387" OD x 0.139"
"O" RING - 1-1/8 x 1-3/8 x 1/8"
1шт.
16
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - extension, 1-3/16 to 1-3/4"
1шт.
17
211-850
PLUG - L.H. side, 1/16" P.T. socket hd.
1шт.
18
A153552
ADAPTER
- oil filter
1шт.
19
41-1016
PLUG,Cup, 1"
- filter adapter (1" cup type)
1шт.
20
A23656
COCK, DRAIN
VALVE - drain, water (1/4" P.T.)
1шт.
21
A29333
STUD
- block to torque tube (5/8" N.C.-N.F. x 3")
2шт.
22
A29442
RING
- dowel, timing gear cover
2шт.
23
G11702
COVER
- fuel pump opening
1шт.
24
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
2шт.
25
92-5
LOCK WASHER,5/16"
2шт.
26
A65561
GASKET
- pump opening cover (Replaces G46902)
1шт.
27
A30099
X
BOLT - block to torque tube (3/8 x 3-1/2" N.F. hex.)
2шт.
28
25-1110
NUT,5/8"-18, G5
- 5/8" N.F. hex.
4шт.
29
193-34
LOCK WASHER,Int Tooth, 5/8"
WASHER, LOCK, Int Tooth, 5/8"
4шт.
30
A30021
NUT
- head to block (1/2" N.F. hex.)
14шт.
31
G49404
WASHER
- plain (17/32 x 27/32 x 1/16")
14шт.
Выбрано товаров: 31
