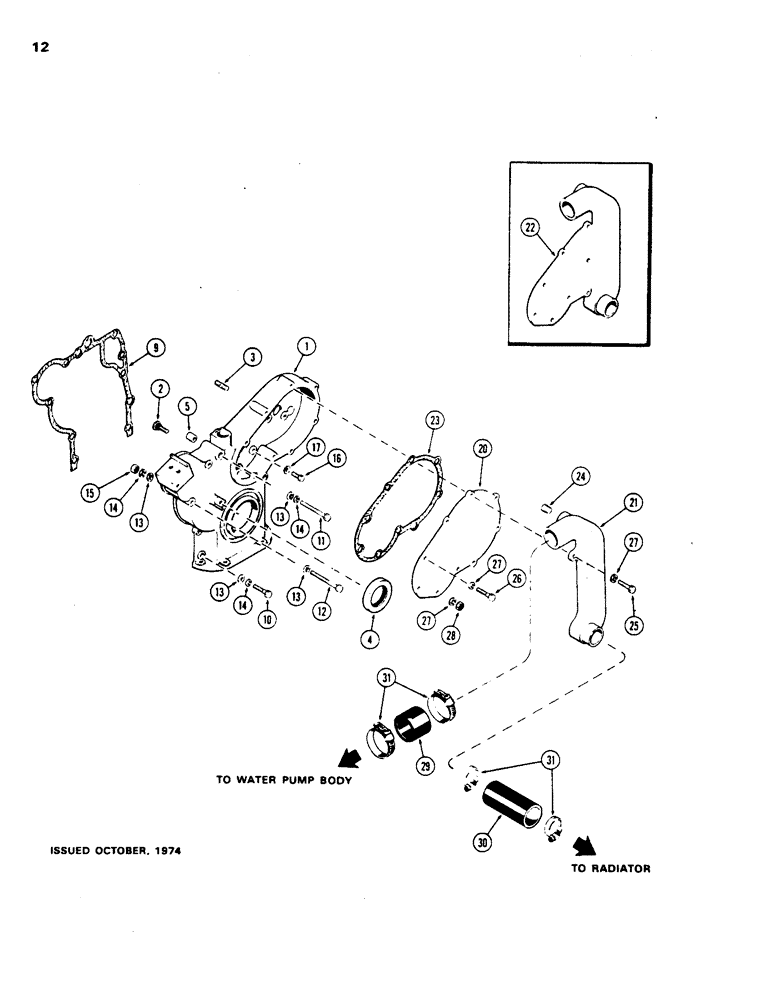

Запчасти Case 480B (012) - TIMING GEAR COVER, (188) DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 2728315

1

A51981

COVER

ASSY. - timing gear (Replaces A51123 & A51734), Includes: Ref. 2 - 4

1шт.

2

A51649

STUD

- timing gear cover

2шт.

3

G11204

STUD

- injection pump (3/8" N.C. x 1-7/16")

3шт.

4

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft (2 x 3 x 1/2")

1шт.

5

A29442

RING

DOWEL - cover to block (9/16 x 3/8 x 5/8")

2шт.

9

A51529

GASKET

-, Serial Range: cover-block

1шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

1шт.

11

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-/3/4" N.C. hex.

2шт.

12

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex.

1шт.

12

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex.

3шт.

13

A50820

WASHER

- plain, hardened (25/64 x 3/4 x 7/64")

12шт.

13

95-6

WASHER,3/8"

- plain, 7/16 x 1 x 5/64"

1шт.

14

92-6

LOCK WASHER,3/8"

9шт.

15

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

16

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

17

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

20

A51908

COVER

COVER - injection pump drive gear

1шт.

21

A51907

TUBE

- water passage

1шт.

22

A51765

CLIP

COVER - fuel injection pump drive (changed to aluminum) from cast iron eng. ser. no. 2731067 (Replaces A39911) (Order 1-A51907 tube, A51908 cover, 2-A50820 washers, 5-13-616 bolts & 2-13-624 bolts)

1шт.

23

A39925

GASKET

- gear cover

1шт.

24

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, 3/8" hex. socket

1шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

7шт.

26

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.)

2шт.

27

A50820

WASHER

- (3/8 x 3/4 x 1/8")(used w/aluminum cover)

9шт.

27

92-6

LOCK WASHER,3/8"

(used w/cast iron cover) 3/8"

9шт.

28

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.

29

A7249

HOSE

- pump body to cover (2" I.D. x 1-3/4" lg.)

1шт.

30

A135011

RADIATOR HOSE,1.75" ID x 2.25", SAE 20R2 Class R Grade 1

1.75" ID x 2.25 ", SAE 20R2, Lower

1шт.

31

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.
