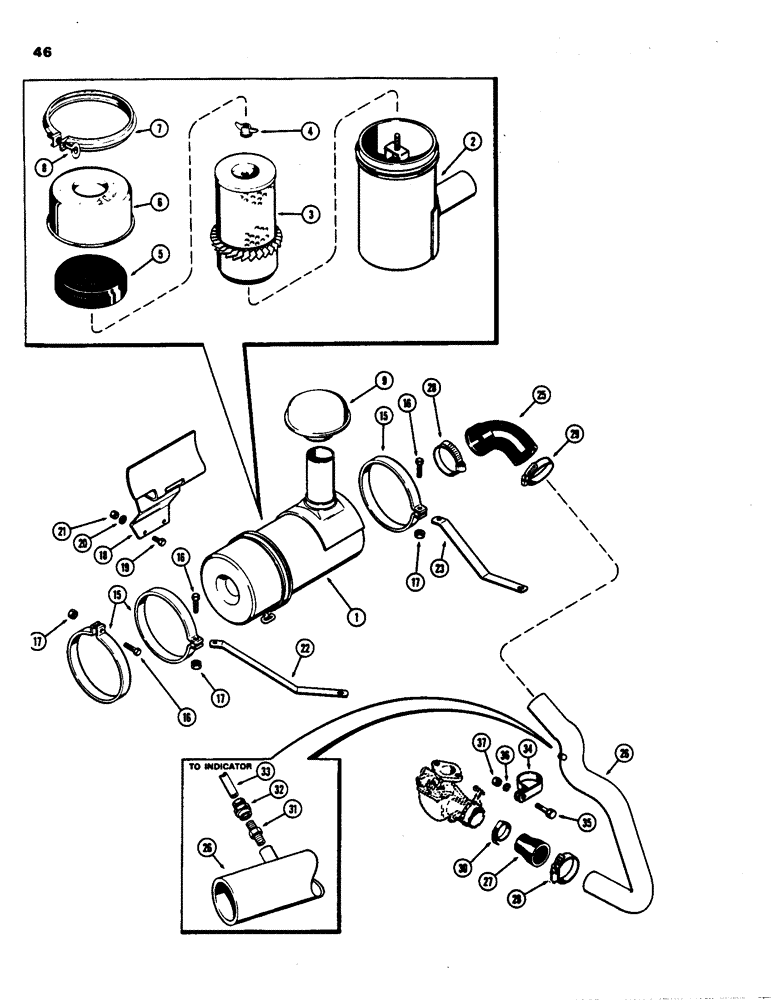

Запчасти Case 480B (046) - AIR CLEANER, (148B) SPARK IGNITION ENGINE

1

A139086

AIR CLEANER

ASSY. - (Replaces A39346), Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - (Order A39346)

1шт.

3

A42274

AIR FILTER

ELEMENT - air cleaner

1шт.

4

F91761

WING NUT

- wing

1шт.

5

F22312

BAFFLE

- rubber

1шт.

6

F91760

CUP

- access

1шт.

7

F84999

CLAMP,168.28mm

ASSY. - cup retaining

1шт.

8

25-224

SQUARE NUT,Sq, 1/4"-20

- 1/4" N.C. hex

1шт.

9

A61276

AIR CLEANER

PRE-CLEANER ASSY

1шт.

15

A39347

BAND

- mounting, air cleaner

3шт.

16

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- 1/4 x 1-3/4" N.C. hex

3шт.

17

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

NUT - lock, 1/4" N.C. hex

3шт.

18

A39348

BRACKET

- mounting, air cleaner

1шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

22

A39349

STRAP - band support, air cleaner (R.H. side)

1шт.

23

A39608

STRAP - band support, air cleaner (L.H. side)

1шт.

25

A39357

HOSE

- adapted, tube to air cleaner

1шт.

26

A39354

TUBE - air, Serial Range: cleaner-carburetor

1шт.

27

A36423

HOSE

-, Serial Range: tube-carburetor

1шт.

28

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose to air cleaner, 2-5/16" TO 3-1/4"

1шт.

29

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

- hose to tube #36, 1.81/2.75 Type F Worm

2шт.

30

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- hose to carburetor #28, 1.31/2.25 Type F Worm

1шт.

31

D36264

FITTING

FILTER - restrictor indicator

1шт.

32

222-5130

FITTING,7/16"-24 x 1/8" NPT Fem

COUPLING - tube, 3/8" P.T. x 1/4" tube

1шт.

33

D53924

TUBE - restrictor indicator (nylon)

1шт.

34

A39356

CLAMP - tube

1шт.

35

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

- 3/8 x 1-3/4" N.C. hex.

1шт.

36

92-6

LOCK WASHER,3/8"

1шт.

37

25-106

NUT,3/8"-16, G5

- 5/8" N.C. hex.

1шт.
