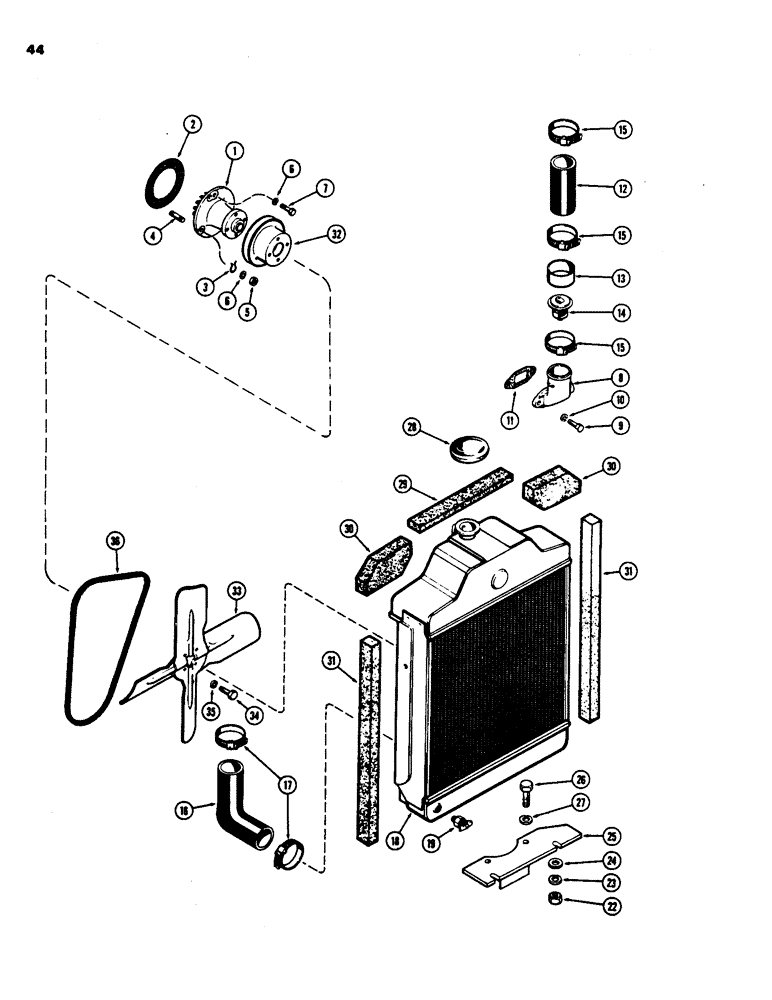

Запчасти Case 480B (044) - RADIATOR, FAN AND WATER PUMP, (148B) SPARK IGNITION ENGINE

1

G11956

WATER PUMP

PUMP ASSY. - water, Includes: Ref. 2 and 3

1шт.

If dealer has casting number A38082 water pump use A146584 new water pump or A48363 reman

1шт.

1

A48364

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

1

A48325

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

2

A38083

GASKET

GASKET -, Serial Range: pump-cover

1шт.

3

A30067

RING

RING - retainer

1шт.

4

A29433

STUD

STUD - pump mounting (3/8" N.C. x 1")

1шт.

5

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex

1шт.

6

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

7

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - 3/8 x 2-3/4" N.C. hex

1шт.

8

G11965

ELBOW

ELBOW - engine, Serial Range: outlet-radiator

1шт.

9

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

BOLT, Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

11

A30003

GASKET

GASKET - elbow

1шт.

12

G46239

RADIATOR HOSE,2.00" ID x 4.88", SAE 20R2

Upper

1шт.

13

G49625

SUPPORT

SPACER - thermostat

1шт.

14

G11065

CASE

THERMOSTAT - (177 degrees to 182 degrees)

1шт.

15

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

HOSE CLAMP, , upper #36, 1.81/2.75 Type F Worm

3шт.

16

G46361

RADIATOR HOSE,1.75" ID x 5.13", SAE 20R4

Lower

1шт.

17

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, - lower hose #28, 1.31/2.25 Type F Worm

2шт.

18

A39344

RADIATOR

RADIATOR

1шт.

19

217-103

COCK, DRAIN

VALVE - drain, radiator (1/4" P.T.)

1шт.

22

25-106

NUT,3/8"-16, G5

NUT - radiator stud, 3/8" N.C. hex

2шт.

23

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

24

95-6

WASHER,3/8"

WASHER - plain, 5/32 x 5/16 x 1/32"

2шт.

25

A35574

BRACKET

BRACKET - radiator mounting

1шт.

26

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

27

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.

28

A39359

CAP

CAP - radiator

1шт.

29

G46280

BAFFLE

BAFFLE - top center (Use 345-22 adhesive)

1шт.

30

G46278

BAFFLE

BAFFLE - top side (Use 345-22 adhesive)

2шт.

31

D31270

INSULATOR

BAFFLE - side (use 345-22 adhesive)

2шт.

32

G11339

PULLEY

PULLEY - drive belt

1шт.

33

G45243

FAN

FAN - cooling

1шт.

34

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

BOLT, Hex, 5/16"-18 x 1/2", G5, Full Thd

4шт.

35

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

4шт.

36

A38824

BELT

Drive, Fan and Generator

1шт.
