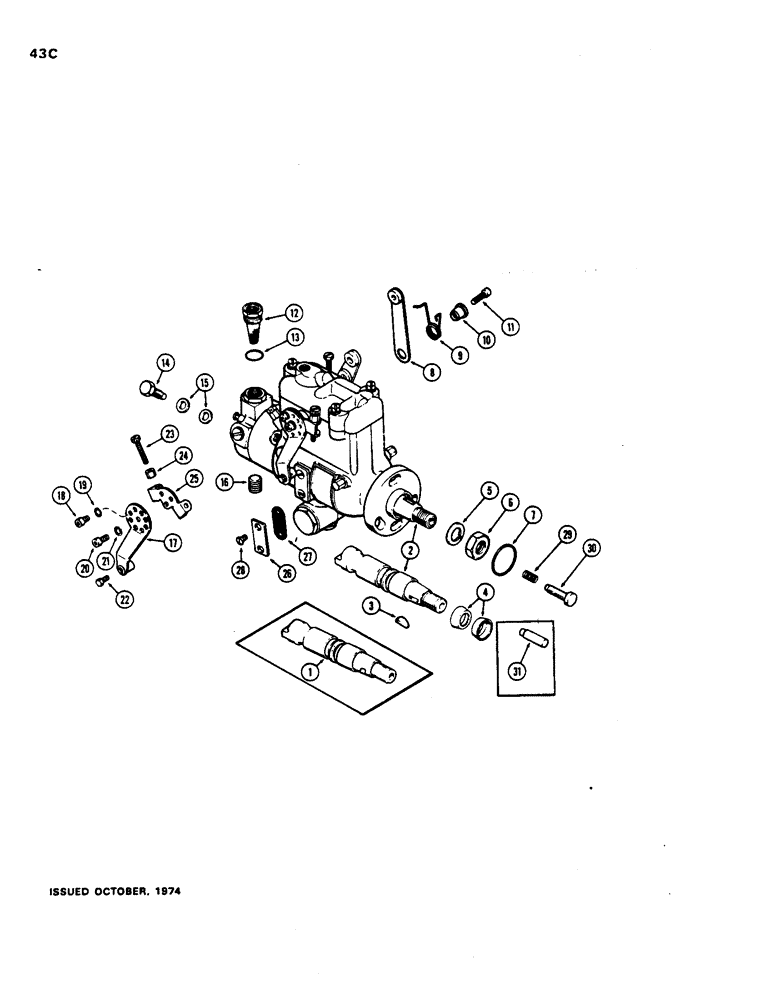

Запчасти Case 480B (043C) - FUEL INJECTION PUMP, (188) DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2716911

G37030

PUMP ASSY. - fuel injection (Order A51051), Includes: Ref. 1 - 31

1шт.

1

A44710

SHAFT

- drive (incl. pin)(Replaces G47113 & 126-12)

1шт.

2

G47113

SHAFT

- drive (Order A44710)

1шт.

3

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

(Use only w/G47113) #6, 5/32" x 5/8"

1шт.

4

R14711

SEAL

- drive shaft

2шт.

5

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

6

25-159

JAM NUT,Jam, 9/16"-18, G5

- jam, 9/16" N.F. hex.

1шт.

7

74244

SEAL,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - pilot tube

1шт.

8

G45338

ARM

- throttle

1шт.

9

G48505

SPRING

- throttle arm

1шт.

10

G49621

RETAINER

- spring

1шт.

11

165-124

HEX SOC SCREW,Prev Torque, #10 - 32 x 3/4"

SCREW - throttle arm (#10-32 x 3/4" socket hd.)

1шт.

12

CAS73671

FILTER, ELEMENT

CAP & FILTER

1шт.

13

51200280

SEAL

- filter

1шт.

14

73613

SCREW

- connector, injection tube

4шт.

15

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector screw

8шт.

16

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe Hex Soc, 1/4"-18 NPTF

1шт.

17

G45337

ARM

- shut-off

1шт.

18

165-1

SCREW,#8 x 1/4"

- position (#8-24 x 1" socket hd.)

1шт.

19

193-91

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

1шт.

20

165-30

HEX SOC SCREW,#10 - 32 x 3/8"

SCREW - retainig (#10-32 x 3/8" socket hd.)

1шт.

21

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER - lock (#10)

1шт.

22

163-70

SCREW - pivot (#8-24 x 3/8" hex. hd.)

1шт.

163-70 Screw per Jim Chronis memo 11/23/98 this should not have been released as a Service part. dealer should be able to find a #8-24 x 3/8 " Socket Head Screw, locally. D. B. 11/23/98

1шт.

23

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- adjusting, idle & throttle

4шт.

24

51200274

NUT

- adjusting

4шт.

25

NSS

NOT SOLD SEPARAT

LEVER - shut-off

1шт.

26

G46330

COVER

- timing window

2шт.

27

73453

GASKET

- cover

2шт.

28

NLS

NO LONGER SERVICED

- timing window

4шт.

29

G48502

SPRING

- thrust, drive shaft

1шт.

30

A44653

PLUNGER

- thrust spring (Replaces G47128)

1шт.

31

G47128

PLUNGER

- thrust spring (Order A44653)

1шт.
