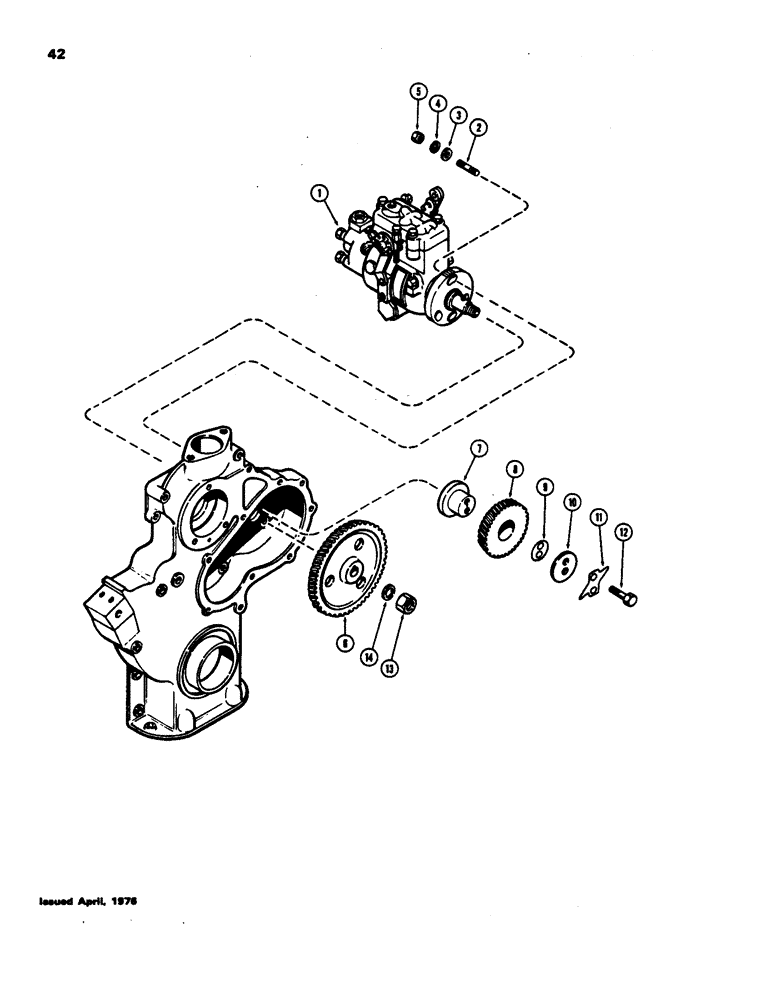

Запчасти Case 480B (042) - FUEL INJECTION PUMP DRIVE, (188) DIESEL ENGINE

1

REF

INSTRUCTION

PUMP ASSY. - fuel injection (See Figures 43A & 43C)

1шт.

2

G11204

STUD

- pump mounting (3/8 x 1-7/16")

3шт.

3

A30043

WASHER

- mounting stud

3шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

3шт.

6

G2076

GEAR

- drive, injection pump

1шт.

7

G11726

HUB

- idler gear, pump drive

1шт.

8

G11852

GEAR

ASSY. - idler (Includes bushing)

1шт.

9

G11728

SHIM,.005" Thk

Idler gear .005" Thk

1шт.

9

G11729

SHIM,.006" Thk

Idler gear .006" Thk

1шт.

9

G11730

SHIM,.007" Thk

Idler gear .007" Thk

1шт.

9

G11731

SHIM,.009" Thk

Idler gear .009" Thk

1шт.

10

G11732

PLATE

- thrust, idler gear

1шт.

11

G11746

PLATE

- lock, idler gear

1шт.

12

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

13

25-159

JAM NUT,Jam, 9/16"-18, G5

- jam, 9/16" N.F. hex

1шт.

14

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.
