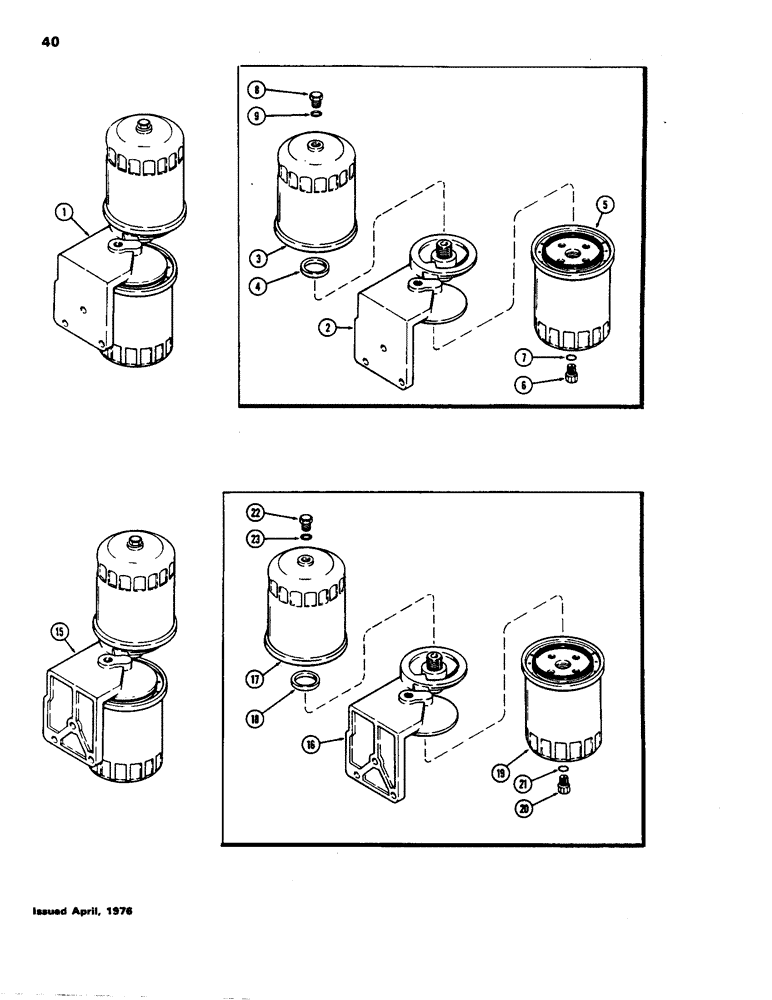

Запчасти Case 480B (040) - FUEL FILTER, SPIN ON TYPE, (188) DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 2740316

1

A51739

FILTER

ASSY. - (1st used eng. ser. no, 2740316), Includes: Ref. 2 - 9

1шт.

2

A51738

CYLINDER HEAD

HEAD - fuel filter

1шт.

3

A39867

FILTER

ASSY. - secondary (Also order ref. 8), Includes: Ref. 4

1шт.

4

A42315

GASKET

- filter

1шт.

5

A39868

FILTER

- primary (Also order ref. 6 & 7)

1шт.

6

G49080

PLUG

- filter drain

1шт.

7

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

8

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Assy (3/16" OD Tube) Includes Ref. 9 Hex Hd, 3/8"-24 ORB

1шт.

9

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

15

A39865

FUEL FILTER

FILTER ASSY. - fuel (Order A51739), used eng s/n 2718490 thru 2740315, Includes: Ref. 16 - 23

1шт.

16

A39866

HEAD

- filter (Order A51738), used eng s/n 2718490 thru 2740315

1шт.

17

A39867

FILTER

ASSY. - secondary (Also order ref. 22), used eng s/n 2718490 thru 2740315, Includes: Ref. 18

1шт.

18

A42315

GASKET

- secondary filter, used eng s/n 2718490 thru 2740315

1шт.

19

A39868

FILTER

- primary (Also order ref. 20 & 21), used eng s/n 2718490 thru 2740315

1шт.

20

G49080

PLUG

- drain, used eng s/n 2718490 thru 2740315

1шт.

21

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, used eng S/N 2718490 thru 2740315

1шт.

22

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Assy (3/16" OD Tube), Used eng S/N 2718490 thru 2740315, Includes Ref. 23 Hex Hd, 3/8"-24 ORB

1шт.

23

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, used eng S/N 2718490 thru 2740315

1шт.
