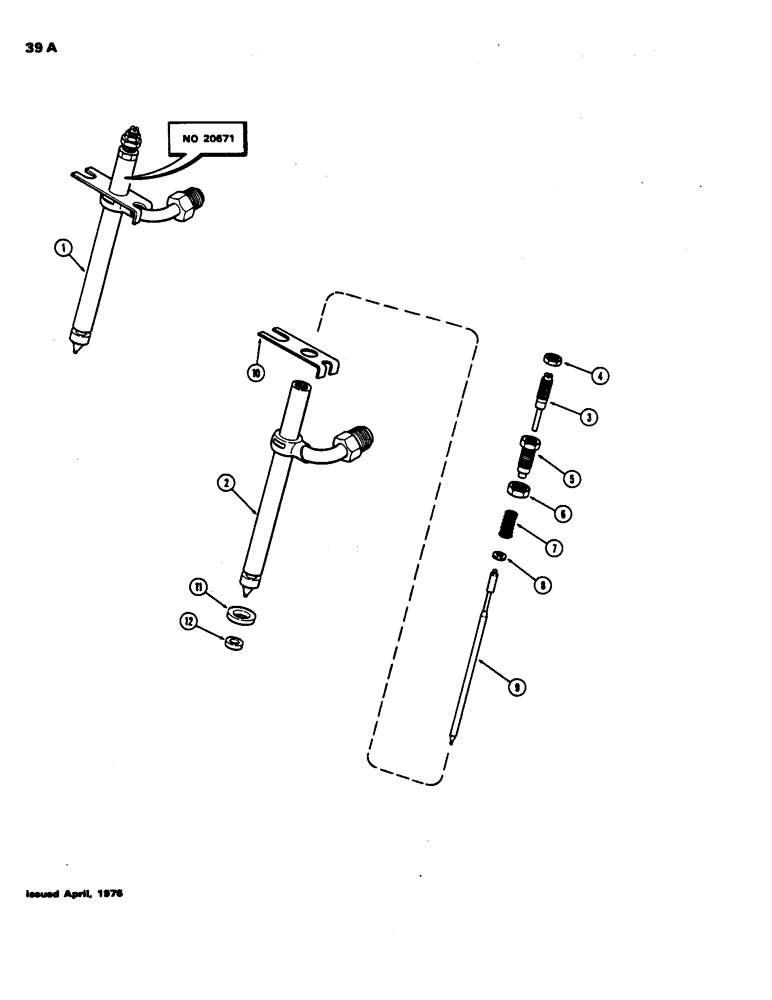

Запчасти Case 480B (039A) - FUEL INJECTION NOZZLE, (188) DIESEL ENGINE

1

A140829

NOZZLE INJECTION

NOZZLE ASSY. - injector (Replaces A51234) (Supplier's No. 20671 stamped on body), Includes: Ref. 2 - 12

4шт.

Whenever nozzle is removed from head washer ref 11 and seal ref 12 must be replaced before nozzle is installed back in head.

1шт.

A140829R

REMAN-INJECT NOZZLE

480B

4шт.

A140829C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting screw

1шт.

5

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

7

A43733

SPRING

- nozzle pressure adjusting (9/16" free length, w/red stain)

1шт.

8

A44369

SEAT

- pressure adjusting spring

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

10

A43506

PLATE ASSY.

PLATE - nozzle holder

1шт.

11

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body

1шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.
