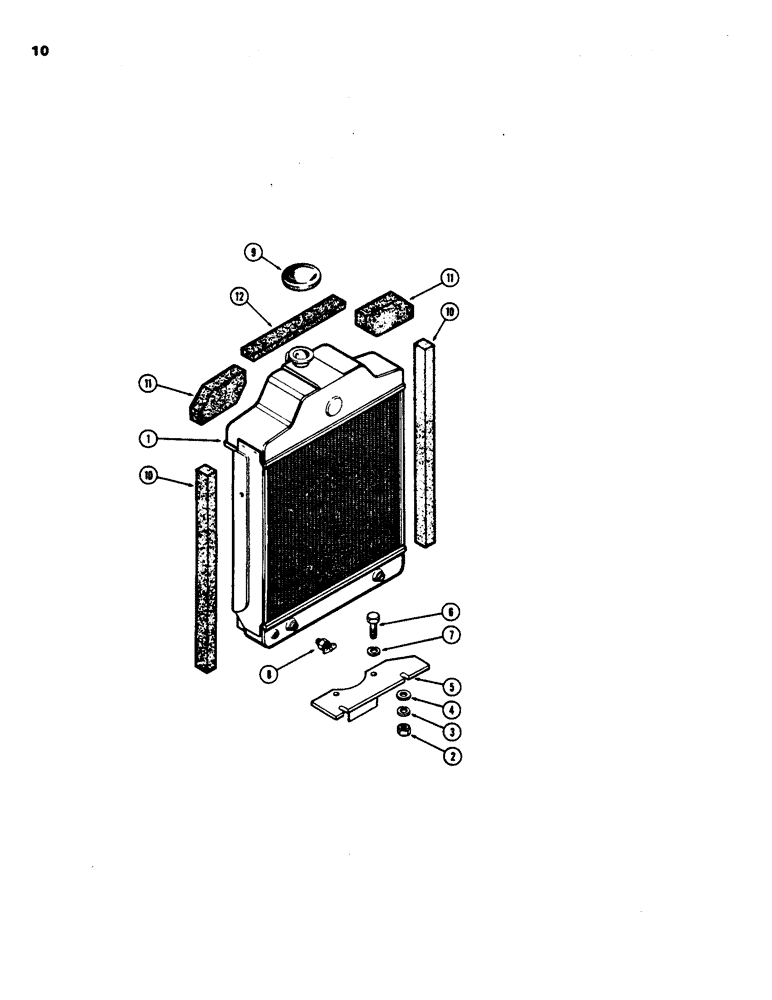

Запчасти Case 480B (010) - RADIATOR, (188) DIESEL ENGINE

1

A39344

RADIATOR

1шт.

2

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

95-6

WASHER,3/8"

- plain, 7/16 x 1 x 5/64"

2шт.

5

A35574

BRACKET

- radiator mounting

1шт.

6

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

217-103

COCK, DRAIN

COCK - drain, radiator

1шт.

9

A39359

CAP

- radiator

1шт.

10

D31270

INSULATOR

BAFFLE - radiator side (use adhesive 345-22)

2шт.

11

G46278

BAFFLE

- radiator top (use adhesive 345-22)

1шт.

12

G46280

BAFFLE

- top center (use adhesive 345-22)

1шт.
