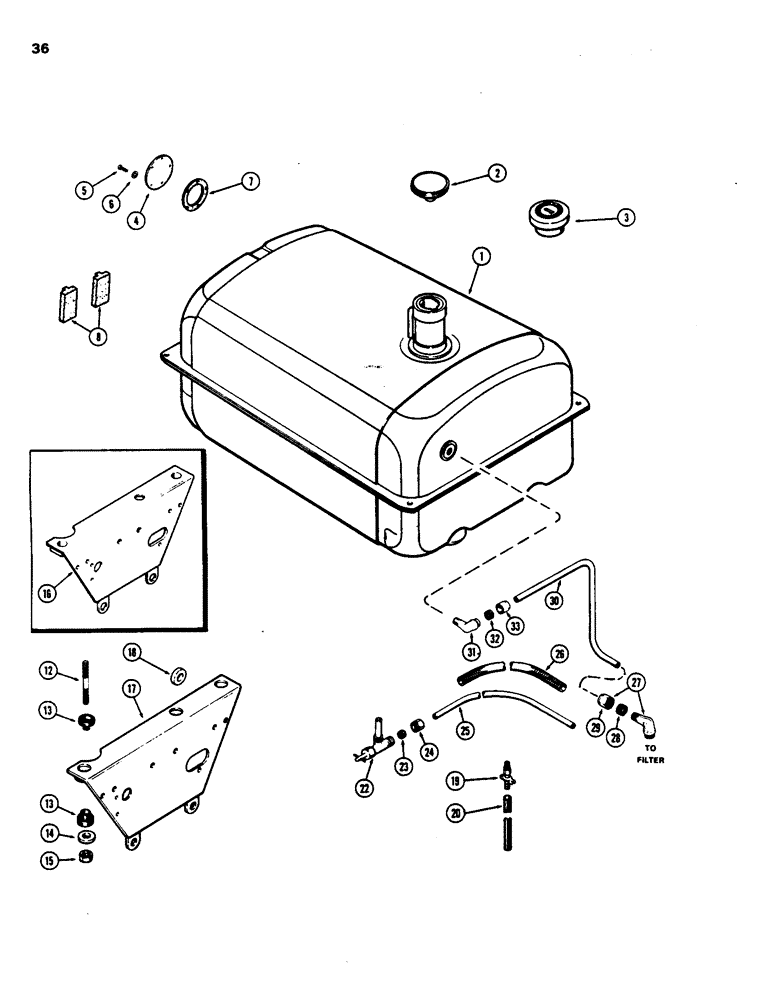

Запчасти Case 480B (036) - FUEL TANK AND LINES, (188) DIESEL ENGINE

1

A51555

TANK

- fuel (Replaces A39816)

1шт.

2

A51390

CAP

- fuel tank (See ref. 3)

1шт.

3

A32120

CAP

- locking type, fuel tank (incl. keys)

1шт.

4

G16143

COVER - opening, sending unit

1шт.

5

174-95

SCREW,Sl Rd Hd, #10 - 32 x 3/8"

- #10-32 x 3/8" rd. hd.

5шт.

6

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

7

A11822

GASKET

- cover

1шт.

8

A37315

PAD

- rear, tank support

2шт.

12

A37310

STUD

- tank mounting (3/8" N.C. x 3-1/4")

4шт.

13

A37311

BUSHING

- rubber, mounting stud

8шт.

14

F62051

WASHER

- mounting stud (13/32 x 1-1/2 x 1/8")

4шт.

15

131-352

LOCK NUT,3/8"-16, GA

NUT - lock, 3/8" N.C. hex.

4шт.

16

A39378

SUPPORT

- fuel tank (Use prior to trac. ser. no. 8732167)

1шт.

17

A51792

SUPPORT

- fuel tank (1st used trac. ser. no. 8731267)

1шт.

18

A51801

BUSHING

SPACER - support (1st used trac. ser. no. 8731267)

2шт.

19

217-107

VALVE

- drain, water trap (1/8" P.T.)

1шт.

20

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Water drain 0.25" ID x 15.00", SAE SC716 CS

1шт.

22

A51780

LOCK VALVE

VALVE ASSY. - needle, fuel line (Replaces A7313), Includes: Ref. 23 and 24

1шт.

23

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

24

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

25

A35630

TUBE

LINE - fuel, valve to filter (3/8" O.D.)

1шт.

26

A27241

LOOM

- fuel line

1шт.

27

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- tube to filter, 3/8" O.D. x 1/4" P.T., Includes: Ref. 28 and 29

1шт.

28

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

29

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

30

A37899

TUBE

- return, fuel leak-off (1/4" O.D.)

1шт.

31

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

- return tube, 1/4" O.D. x 1/4" P.T., Includes: Ref. 32 and 33

1шт.

32

222-102

SLEEVE,1/4" Tube

1шт.

33

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.
