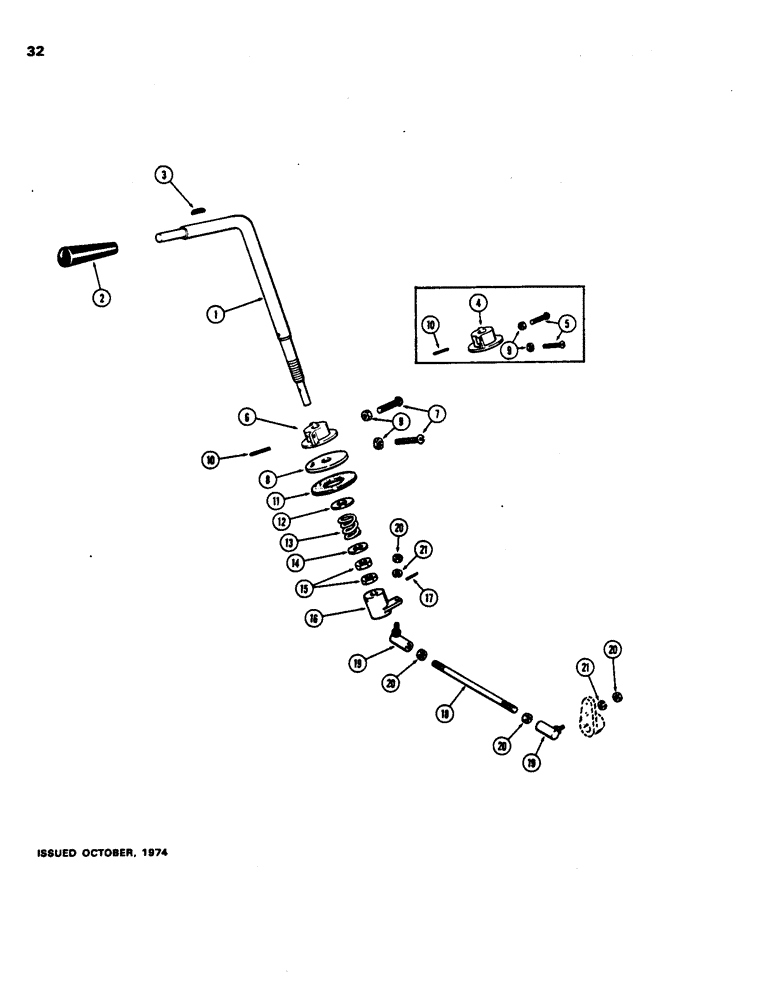

Запчасти Case 480B (032) - HAND THROTTLE, (188) DIESEL ENGINE

1

A38170

LEVER - hand, throttle control

1шт.

2

A37247

KNOB

- hand lever

1шт.

3

A51528

OIL SEAL

RING - knob to control lever

1шт.

4

A38173

STOP

COLLAR - stop, friction plate (Order A51511 & 2-75-424)

1шт.

5

75-432

SCREW

- stop, 1/4 x 2" N.C. rd. hd. (use w/A38173)

2шт.

6

A51511

COLLAR - stop, friction plate (Replaces A38173)

1шт.

7

75-424

SCREW

- 1/4 x 1-1/2" N.C. rd. hd. (use w/A51511)

2шт.

8

A57029

DISC

- throttle plate

1шт.

9

25-104

NUT,1/4"-20, G5

2шт.

10

138-118

LOCK PIN,7/32" x 1 1/2", Slotted

PIN, , Hand lever 7/32" x 1 1/2", Slotted

1шт.

11

A11969

GASKET

DISC - friction

1шт.

12

A32838

WASHER

- friction disc

1шт.

13

A34113

SPRING

- tension, hand lever

1шт.

14

195-33

WASHER,1/2"

- plain, 17/32 x 1-1/16" x #13 ga.

1шт.

15

25-148

JAM NUT,Jam, 1/2"-13, G5

- jam, 1/2" NC hex

2шт.

16

G1338

LEVER

- bottom, hand lever

1шт.

17

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

18

A35642

ROD

- hand lever to cross shaft

1шт.

19

A10329

BALL JOINT,1/4" - 28 x 1"

BALLJOINT - intermediate

2шт.

20

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

4шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
