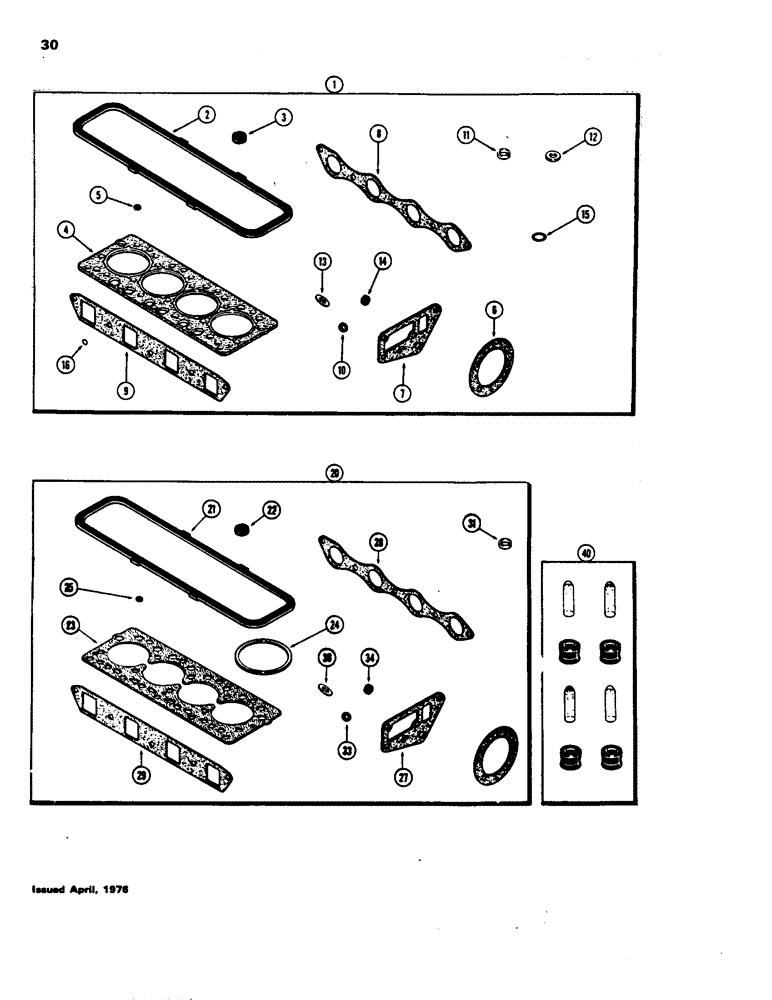

Запчасти Case 480B (030) - ENGINE GASKET KITS, (188) DIESEL ENGINE, VALVE GRIND KIT, FIRST USED ENGINE SERIAL NUMBER 2711005

1

A43193

GASKET

KIT - valve grind (Replaces A43069), Includes: Ref. 2 - 16

1шт.

For complete engine overhaul order A43193. Also order A43198 & A43064 figure 31A.

1шт.

2

A43030

GASKET,3.05mm Thk

- valve cover

1шт.

3

A142098

GROMMET

- cyl. hd. cover (Replace G46867)

2шт.

4

A39279

GASKET

- cylinder head

1шт.

5

G46851

SEAL

- rubber, valve stem (See Ref. 40)

8шт.

6

A38083

GASKET

- water pump

1шт.

7

A38084

GASKET,1.27mm Thk

- timing gear cover, upper

1шт.

8

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

9

G46871

GASKET

- intake manifold

1шт.

10

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - injection tube to pump, 3/8 x 1/2 x 1/16"

8шт.

11

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, injection nozzle, 5/16 x 11/32 x 1/8"

4шт.

12

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injection nozzle, 3/8 x 9/16 x 1/8"

4шт.

13

G49068

GASKET

- injection nozzle seat (not used)

4шт.

14

222-101

SLEEVE,3/16" Tube

- leak-off line (3/16" O.D.) (not used)

4шт.

14

222-103

SLEEVE,5/16" Tube

- Leak-off line (not used) 5/16" Tube

4шт.

15

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - water pump body (3/4 x 1 x 1/8")

1шт.

16

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - manifold stud (3/16 x 9/16 x 3/32")

3шт.

20

A42001

GASKET

KIT - valve grind (Order A43193) (Used Prior to Eng. Ser. #2634281), used prior eng s/n 2711005, Includes: Ref. 21 - 34

1шт.

For complete engine overhaul order A43193. Also order A43198 & A43064 figure 31A.

1шт.

21

A43030

GASKET,3.05mm Thk

- valve cover to head (Replaces G46866), grind kit used prior eng s/n 2711005

1шт.

22

G46867

GROMMET

- rubber, valve cover, grind kit used prior eng s/n 2711005

2шт.

23

A38640

- head to block (Order A39279), valve grind kit used prior eng s/n 2711005

1шт.

24

A38639

RING

- fire, cylinder sleeve, valve grind kit used prior eng s/n 2711005

4шт.

25

G46851

SEAL

- rubber, valve stem, valve grind kit used prior eng s/n 2711005

8шт.

26

A38083

GASKET

- water pump, valve grind kit used prior eng s/n 2711005

1шт.

27

A38084

GASKET,1.27mm Thk

- timing gear cover, upper, valve grind kit used prior eng s/n 2711005

1шт.

28

G46872

MANIFOLD GASKET

- exhaust manifold, valve grind kit used prior eng s/n 2711005

1шт.

29

G46871

GASKET

- intake manifold, valve grind kit used prior eng s/n 2711005

1шт.

30

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - injection tube to pump, valve grind kit used prior eng s/n 2711005

8шт.

31

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- injection nozzle, valve grind kit used prior eng s/n 2711005

4шт.

32

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injection nozzle, valve grind kit used prior eng s/n 2711005

4шт.

33

G49068

GASKET

- injector (not used this engine), valve grind kit used prior eng s/n 2711005

4шт.

34

222-101

SLEEVE,3/16" Tube

- (not used this engine), valve grind kit used prior eng s/n 2711005 3/16" Tube

4шт.

34

222-103

SLEEVE,5/16" Tube

(not used this engine), Valve grind kit used prior eng s/n 2711005 5/16" Tube

4шт.

40

M20611

SEAL KIT

seal, valve stem (Set of 4 seals & Installation sleeve), grind kit used prior eng s/n 2711005

1шт.
