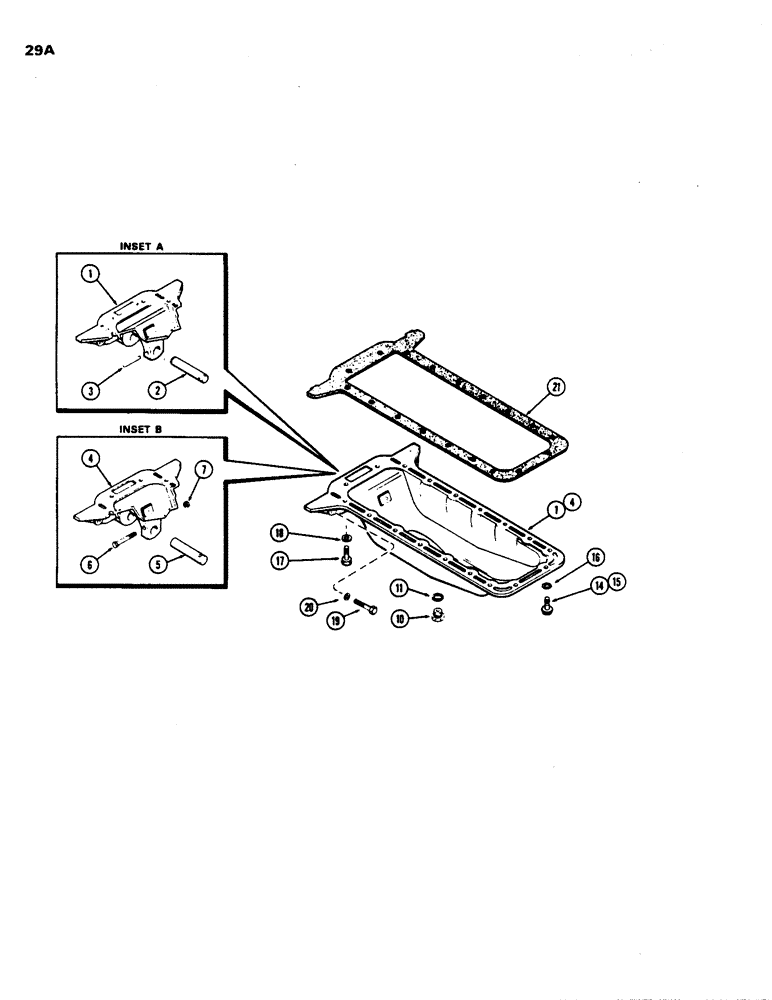

Запчасти Case 480B (029A) - OIL PAN, (188) DIESEL ENGINE

1

A38425

PAN

- oil (used with A51356 radius rod rear pivot pin & 135-361 groove pin) (See Inset A) (Order A51539 oil pan, A51537 pivot pin, 26-544 bolt and 131-351 nut)

1шт.

2

A51356

PIN

- radius rod rear pivot

1шт.

3

135-361

GROOVED PIN,1/4" x 2", Type F

Pin, Grooved, 1/4" x 2", Type F

1шт.

4

A51539

PAN

- oil (used with A51537 pivot pin, 26-544 bolt and 131-351 nut) (See Inset B)

1шт.

5

A51537

PIN

- radius rod rear pivot

1шт.

6

26-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 8

- 5/16 x 2-3/4" N.C. hex

1шт.

7

131-351

LOCK NUT,5/16"-18, GA

NUT - lock, 5/16" N.C. hex

1шт.

10

A140222

PLUG

- drain (Replaces A14280)

1шт.

11

A58608

GASKET

- drain plug (3/4 x 1 x 1/16" nylon)

1шт.

14

26-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

- 5/16 x 1-3/4" N.C. (Gr. 8)

14шт.

15

26-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

2шт.

16

193-83

LOCK WASHER,Int Tooth, 5/16"

WASHER - lock, 5/16" int Shakeproof

16шт.

17

26-564

BOLT,Hex, 5/16" - 18 x 4", Gr 8

- 5/16 x 4" N.C. hex. (Gr. 8)

2шт.

18

195-1019

WASHER

- brass, 11/32 x 3/4 x 1/16"

2шт.

19

113-663

BOLT (SPREADER)

BOLT - 5/8 x 2-1/4" N.C. (to torque tube)

2шт.

20

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order from Figure 31A)

1шт.
