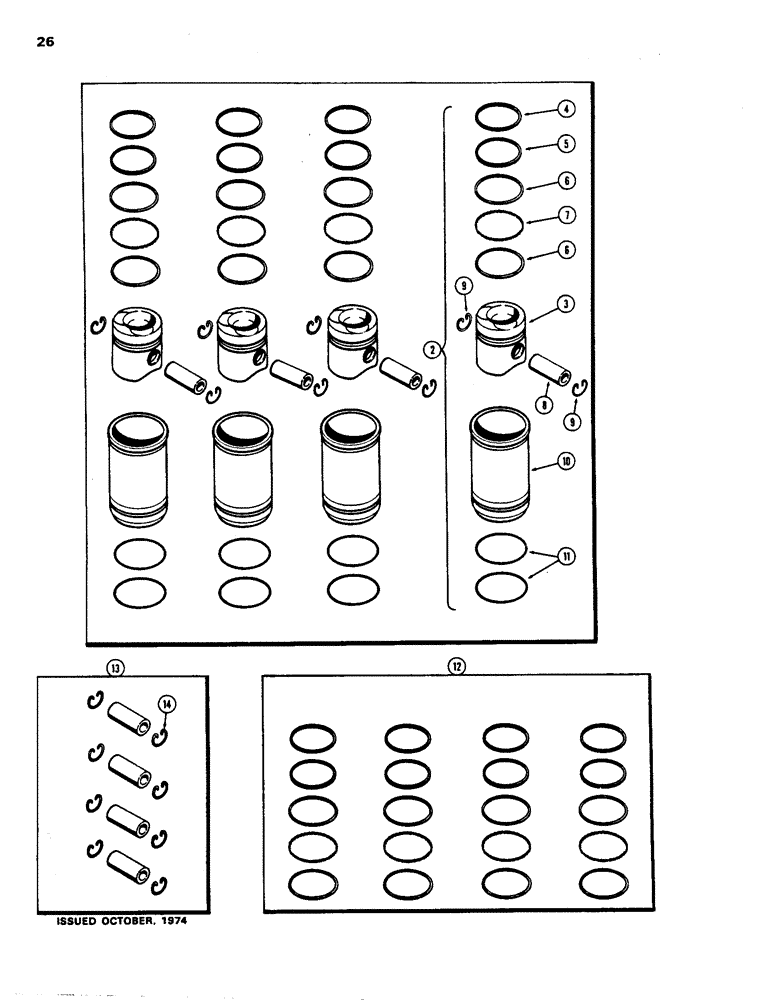

Запчасти Case 480B (026) - PISTONS, RINGS AND SLEEVES, (188) DIESEL ENGINE

1

A42813

PISTON

& SLEEVE SET - (set of 4), Includes: Ref. 2 - 14

1шт.

2

A42812

SLEEVE

PISTON & SLEEVE SET - (Set of 1), Includes: Ref. 3 - 11

4шт.

3

A38424

PISTON

- (3-13/16" dia.)

1шт.

4

G4819

RING

- compression, 1st groove (See ref. 12)

1шт.

5

G4817

RING

- compression, 2nd groove (See ref. 12)

1шт.

6

G47155

RAIL

- oil control (See ref. 12)

2шт.

7

G47174

SPRING

SPACER - oil control rail (See ref. 12)

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 13)

1шт.

9

G46702

RING, LOCKING

RING - retaining (See ref. 13)

2шт.

10

A39006

SLEEVE

- cylinder

1шт.

11

G46888

O-RING,3.737" ID x 3.943" OD

"O" RING - sleeve packing (3-3/4 x 3-7/8 x 1/8")

2шт.

12

G37075

RING

SET - (re-ring 4 pistons)

1шт.

13

A35771

KIT

PIN SET - piston (Set of 4 incl. ret. rings), Includes: Ref. 14

1шт.

14

G46702

RING, LOCKING

RING - retaining

8шт.
